Hydraulic Scissor Car Lift Platform for Lifting From Basement to Floors
Jinan Aos International Co., Ltd- After-sales Service：Free Spare Parts Wihin One Year
- Warranty：1year
- Application：Warehouse Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
Base Info
- Model NO.：SJG2-6
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Lifting Height：6000mm
- Table Size：2600*4500mm
- Capacity：2000kg
- Closed Height：1150mm
- Cylinder：Dia.100*4PCS
- Main Material：160*80*5mm Steel Tubes
- up Frame Size：14# Heavy Steel, Q235
- Platform Thickness：4mm Checkered Plate
- Handrail Height：900mm, 4PCS
- Power：4kw,380V,50Hz
- Control：Schnaider Electrics, Two Control Boxes
- Spare Parts：Oil Pipes &Gasket, Seal Ring, Travel Switch
- Delivery：About 15 Working Days
- Payment：T,T;50%Deposit in Advance and 50% Before Shipment.
- Transport Package：Plywood Case Packing
- Specification：SJG2-6
- Origin：China
- HS Code：8428909090
- Production Capacity：50000PCS,Year
Description
Overview
Product Description
Product Parameters
Detailed PhotosMain Features

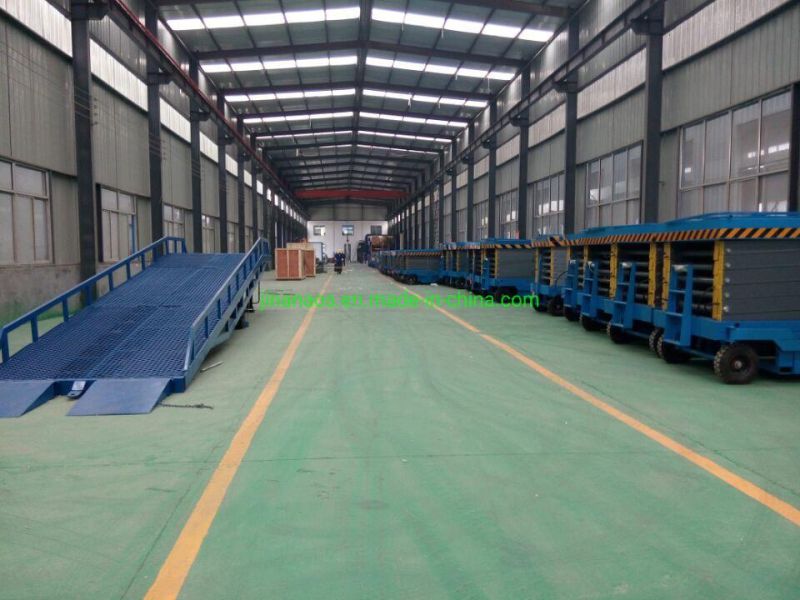

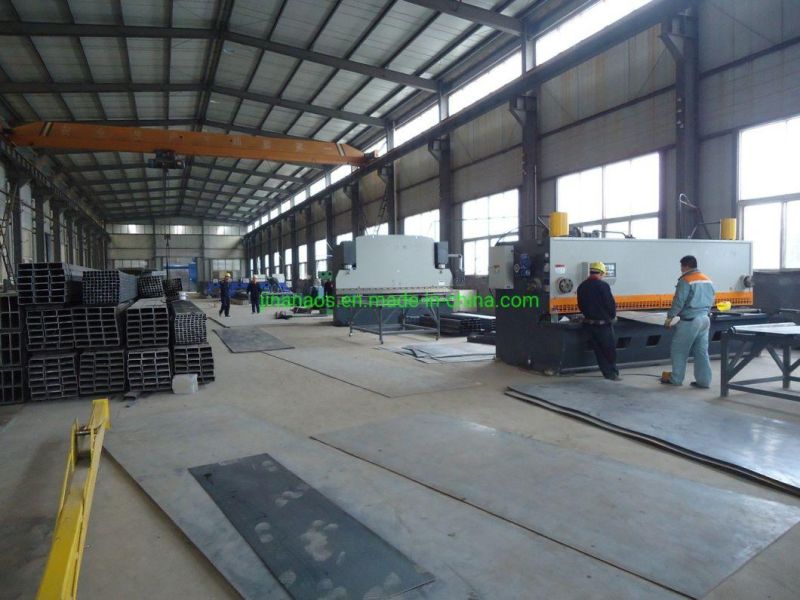

Workshop Show
