• Model NO.：SP
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, ISO 9001
• Platform Height：From 6m to 12m
• Load Capacity：300kg
• Surface Treatment：Shot Blasting
• Moving Model：Self Propelled
• Lifting Mode：Electric
• Lifting Motor：From1.0kw to 4.0kw
• Quality Warranty：12month
• Spare Parts：Free of Charge
• Delivety Time：in Stock or 10days
• Failure Rate：Extremly Low
• Color Chart：Ral Color Chart
• Control System：Hydraulic System
• Control Type：Control Panel
• Material of Wheel：Non-Mark Rubber
• Color Spraying：Spraying Plastic
• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS, IPAF
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Model No. SP06SP08SP10SP12Lifting capacitykg300300300300Folding maximum height(guardrail unfolding)mm2150227524002525Folding maximum height(guardrail removed)mm1190131514401565Overall Lengthmm2400240024002400Overall Widthmm1150115011501150Platform Sizemm2270×11502270×11502270×11502270×1150Platform extend sizemm900900900900Minimumground clearance(folding)mm110110110110Minimumground clearance(rising)mm20202020Wheelbasemm1850185018501850 Minimum turn radius(inner wheel)mm0000Minimum turn radius(outer wheel)mm2100210021002100Power sourcev/kw24/3.024/3.024/3.024/3.0Running speed(folding)km/h4444Running speed(rising)km/h0.80.80.80.8Rising/falling speedsec40/5040/5070/8070/80BatteryV/Ah4×6/2104×6/2104×6/2104×6/210ChargerV/A24/2524/2524/2524/25Maximum climbing ability%20202020Maximum working allowable angle/2-3°2-3°2-3°2-3°Way of control/Electro-hydraulic proportion control Driver/Double front-wheel Hydraulic drive/Double rear-wheel Wheel size(stuffed&no mark)/Φ381×127Φ381×127Φ381×127Φ381×127Whole weightkg1900208024902760

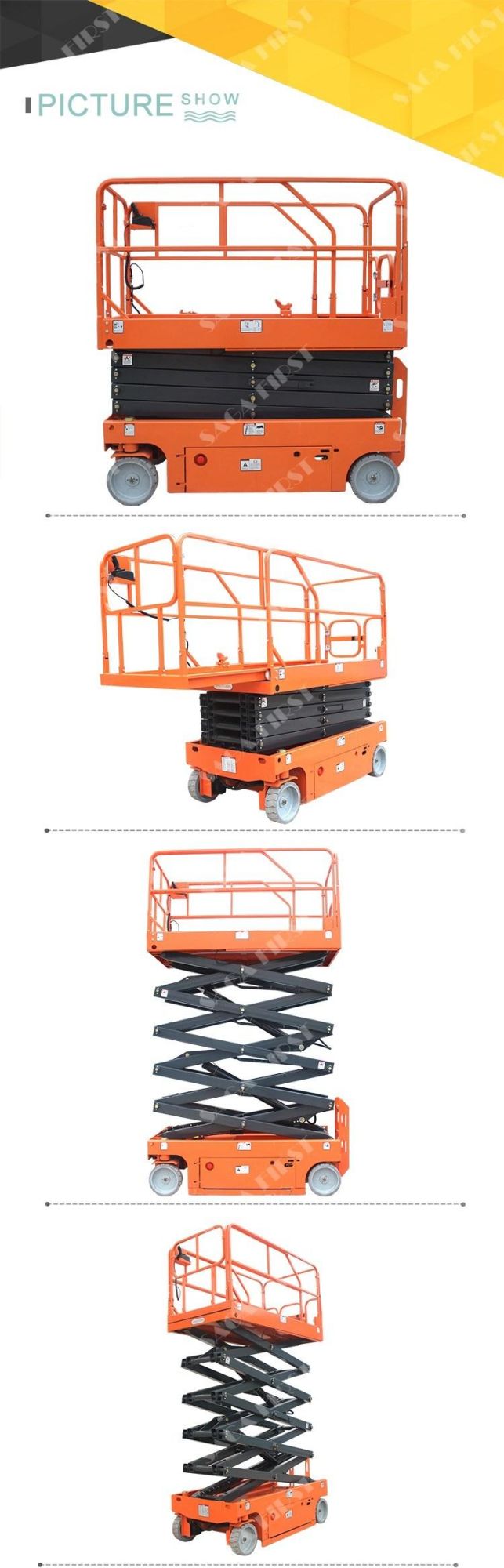

Picture for Your Review




 Our Service:

1.We can design the customerized scissor lift table as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the scissor lift table break down to help you repair.

6.Parts of scissor lift table can be sent to you by express within 7 days if needed.

Frequently Asked Questions:


1.How can customer  buy parts once it break down?The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop. 2.How can customer repair the scissor lift table.One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction. 3.How long is the quality guarantee?One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

Certificate:ISO and CE
