High Load Robot Glass Vacuum Lifter for Insulating Glass Glazing

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Free Parts Replacement
  • Warranty：1 Year
  • Cup Quantity：6
  • Color：Green
  • Application：Industrial Glass Glazing
  • Lift Mechanism：Telescoping Lift

Base Info

  • Model NO.：GL-LD
  • Carrying Capacity：Weight Level
  • Moves：Self-Propelled
  • Driven Type：DC
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Transport Package：Timer Box
  • Specification：6CBM
  • Trademark：PLK
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：50000 Set Per Year

Description

Basic Info.

Model NO. GL-LD Carrying Capacity Weight Level Moves Self-Propelled Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Timer Box Specification 6CBM Trademark PLK Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description


Mobile Hydraulic Vacuum Sucker Granite Panel Lifter For Sale

Model TypeGL-LD-350GL-LD-600
Loading Capacity350kg (retract)/175kg(extend)600kg (retract)/300kg(extend)
Lifting Height3500mm3500mm
Battery2x12V/100AH2x12V/120A
ControllerVST224-15CP2207A-5102
Drive motor24V/600W24V/900W
Hydraulic power24V/2000W/5L24V/2000W/5L
Cap DiameterØ250mm/300mmØ250mm/300mm

Introduction:
GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.

1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)
2. Manual 360degree rotation
3. Electric lift up to 3.5M
4. Weight of machine 660kg/1000kg

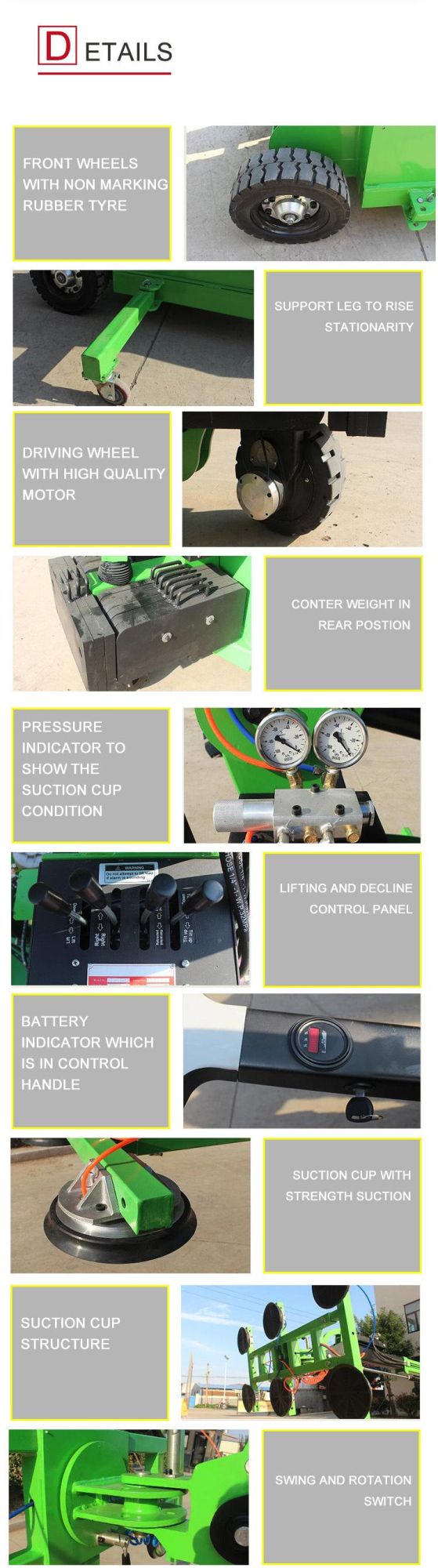

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.

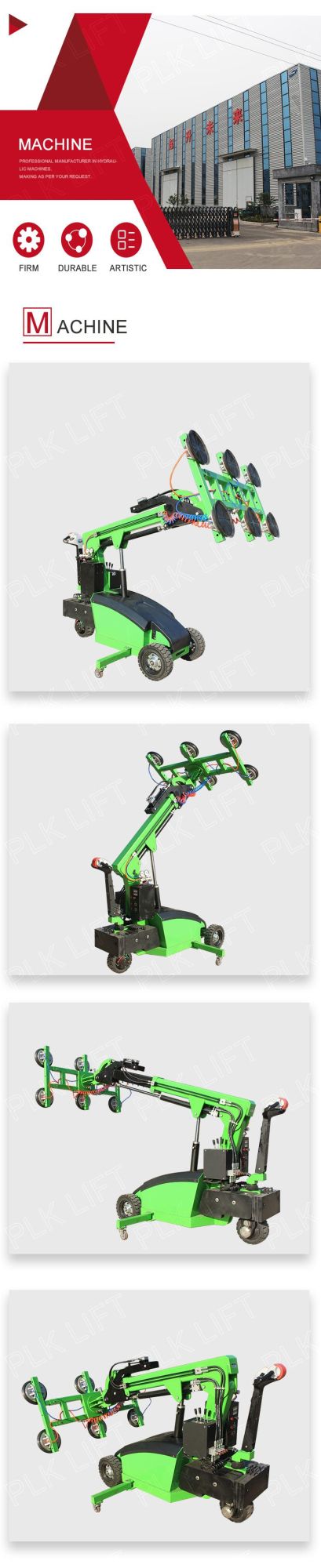

High Load Robot Glass Vacuum Lifter for Insulating Glass Glazing
High Load Robot Glass Vacuum Lifter for Insulating Glass Glazing
High Load Robot Glass Vacuum Lifter for Insulating Glass Glazing
High Load Robot Glass Vacuum Lifter for Insulating Glass Glazing
