• Model NO.：UL
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：CE, ISO 9001
• Load Capacity：1000kg to 1500kg
• Lifting Height：860mm
• Quantity of Hydraulic Cylinder：2
• Voltage：as Per Customers′ Local Standard
• Color：Yellow, Blue, Red or as Per Customer Requiement.
• Quality Warranty：12 Months
• Way of Installation：on Ground or Underground.
• Lowering Speed：Adjustable
• Lead Time：30 Days
• Name：U Shape Lift
• Design：Scissor
• Material：Steel
• Anticorrosion：Yes
• Cylinder：2 PCS
• Emergency Decline Valve：Yes
• Transport Package：High Quality Paper Box
• Specification：CE, ISO, SGS
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. UL Feature Explosion-Proof, Insulating, Spillover Valve Certification CE, ISO 9001 Load Capacity 1000kg to 1500kg Lifting Height 860mm Quantity of Hydraulic Cylinder 2 Voltage as Per Customers′ Local Standard Color Yellow, Blue, Red or as Per Customer Requiement. Quality Warranty 12 Months Way of Installation on Ground or Underground. Lowering Speed Adjustable Lead Time 30 Days Name U Shape Lift Design Scissor Material Steel Anticorrosion Yes Cylinder 2 PCS Emergency Decline Valve Yes Transport Package High Quality Paper Box Specification CE, ISO, SGS Trademark SAGAFIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

1ton stationary low profile U type pallet scissor lift table


U lift table is specially suitable for lifting and loading pallet from production line.
Very low net height makes it more convenient to load and unload pallet.

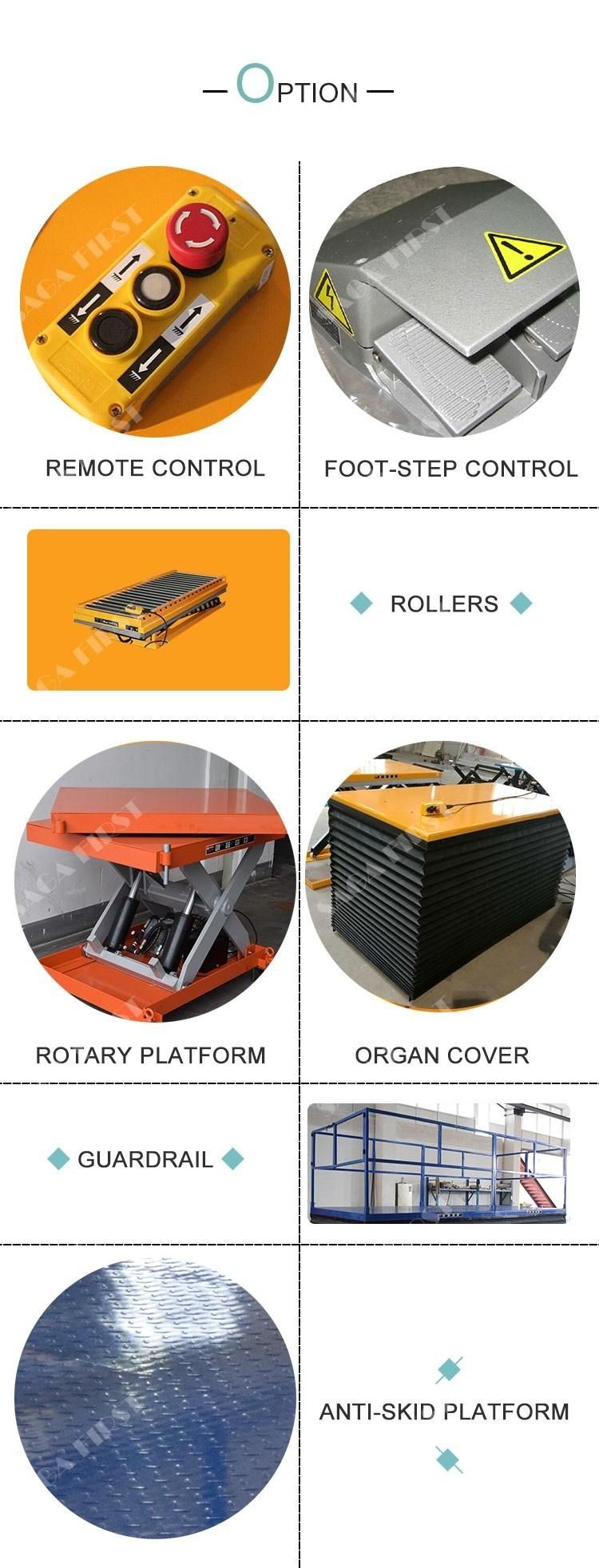

If needed, we can make remote control or foot-step control panel for customers.
Specification:As Per Customers' Requiements.

Model		UL600	UL1000	UL1500
Load Capacity	kg	600	1000	1500
Platform size LxW	mm	1450x985	1450x1140	1600x1180
Size A	mm	200	280	300
Size B	mm	1080	1080	1194
Size C	mm	585	580	580
Min.Platform Height	mm	85	85	105
Max.Platform Height	mm	860	860	860
Base size LxW	mm	1335x947	1335x947	1335x947
Lifting time	s	25-35	25-35	30-40
Power		380V/50Hz	380V/50Hz	380V/50Hz
Net weight	kg	207	280	380

Introduction:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor

Advantages:
1.Standard ramp make the U type scissor lift table easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570

Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.
7. Automatic Safety sensor: lift platform will stop automatically when come across barriers.

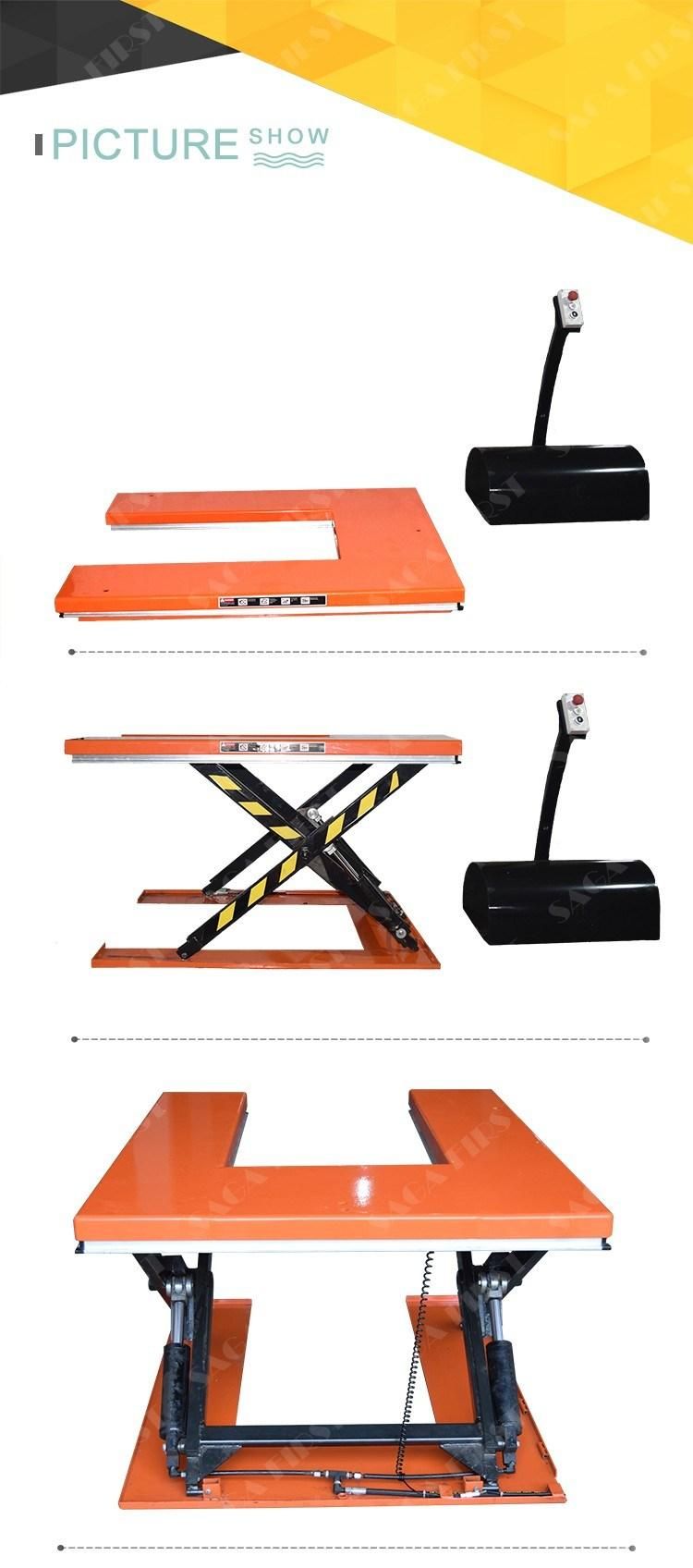

Picture for Your Review:




Certificate:ISO and CE

Package and Delivery :
U lift tables will be packed by high quality boxes and put on pallet.
Production time: about 20~25days.
Loading Port: Qingdao port, Shanghai Port, Ningbo port, Guangzhou Ports.

 Our Service:
1.We can design the customerized scissor lift table as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the scissor lift table break down to help you repair.
6.Parts of scissor lift can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer  buy parts once it break down?
The scissor lift tables adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift tables.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

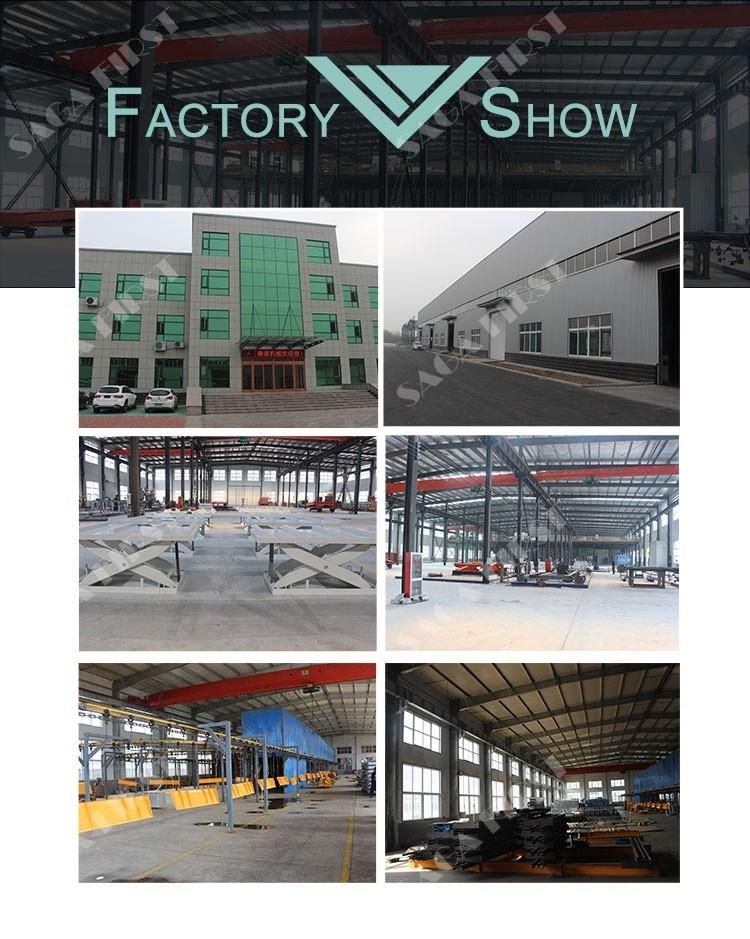

Factory show:
