Main Specs of Articulating Boom Lifts |
Comply with CE/ANSI/GB Standard |
Model | ZA14J |
Size |
Work Height | 15.80m |
Platform Height | 13.80m |
Horizontal Outreach | 7.70m |
Up and Over Height | 7.55m |
A - Stowed Length | 6.57m |
B - Stowed Width | 2.30m |
C - Stowed Height | 2.27m |
D - Platform Length | 1.83m |
E - Platform Width | 0.76m |
F - Wheelbase | 2.36m |
G - Ground Clearance | 0.42m |
Performance |
Platform Capacity | 300kg |
Drive Speed | 6.8km/h |
Gradeability | 45% (24°) |
Axles Oscillation | 0.1m |
Turning Radius (Inside) | 2.06m |
Turning Radius (Outside) | 4.78m |
Swing | 355° |
Platform Rotation | ±90° |
H-Tail Swing | 0 |
Max. Working Slope | 5° |
Max. Wind Speed | 12.5m/s |
Power |

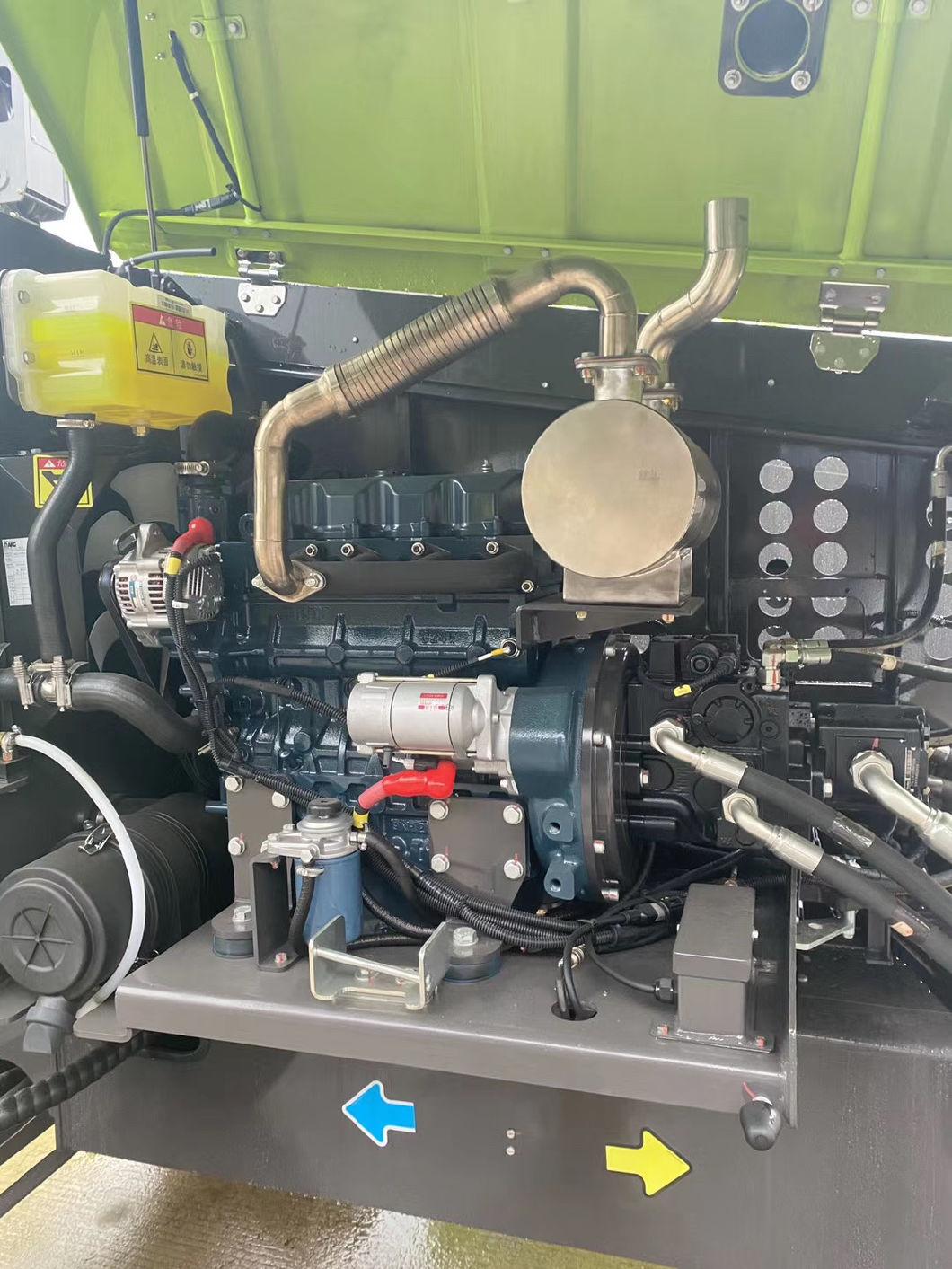

Diesel Engine | Perkins 404D-22 |
Engine Power | 35.7kw/2600rpm |
Fuel Tank Capacity | 65L |
Auxiliary Power | 12V |
Control Voltage | 12V |
Hydraulic System Capacity | 150L |
Hydraulic Tank Capacity | 76L |
Tire |
Type | 315/55 D20 Foam-filled Tires |
Weight |
Gross | 7100kg |
Highlights |
300 kg platform capacity for higher efficiency |
Built-in multiple pressure control leveling system to enhance stability |
Precise load sensing system to improve overload safety operations |
Integrated with rotary reducer to enhance rotation stability |
Hostile Kits available for dusty working environment |
Deadweight Lowering System for smooth operation and energy efficiency |
Features |
Standard Features | Accessories & Options |
Horn | Platform work lights |
All motion alarm | Anti-collision device |
Proportional control | AC power to platform |
Self-closing entry gate |
Flashing amber beacon |
GPS position and tracking system |
Remote monitoring and rental management system |
Auto-leveling system |
Emergency stop button |
Over tilt protection system |
Emergency descent system |
On-board diagnostic system |
Oscillating axle |
4.3' LED display |
Load sensing system |
Swing-out engine tray |
