27 Ton Explosion-Proof Double Drum Winders for Underground Mine
Changsha Mining Equipment Co., Ltd.- After-sales Service：Video Training or Send Engineer to The Site
- Warranty：12 Months
- Type：Electric Winch
- Driven Type：AC
- Speed：2.5~6.9 M,S
- Carrying Capacity：60 Kn
Base Info
- Model NO.：2jk-2*1P
- Tonnage：27.8t
- Reel Number：2
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：ISO 9001
- Standard：National Standards
- Drum Diameter：2 M
- Drum Width：1 M
- Max Static Tension Difference：40 Kn
- One Layer Lifting Height：213 M
- Two Layer Lifting Height：436 M
- Three Layer Lifting Height：662 M
- Wire Rope Diameter：25 mm
- Motor Power：160~400 Kw
- Motor Speed：<= 750 R,Min
- Transport Package：Null
- Specification：9.5*7.0*2.8
- Trademark：CSME
- Origin：Changsha, China(Mainland)
- HS Code：8425110000
- Production Capacity：50 Sets,Month
Description
modeldrumMaximum
MaximumLiftingsteelspeedMotormotorOverallmachinerymm KN m mm m/s i KW r/min m Kg 2JK-2.0×1.0
2JK-2.0×1.0P 2 2000 1000 1090 60 40 213 436 662 25 2.5
3.2
3.8
4.1
5.1
6.9 11.2
20
25
28
31.5 160
185
200
250
315
400 ≤750 2JK-2.0×1.25
2JK-2.0×1.25P 1250 1340 270 550 834 2JK-2.0×1.5
2JK-2.0×1.5P 1500 1590 332 676 1025 2JK-2.5×1.2
2JK-2.5×1.2P 2500 1200 1290 90 55 266 545 828 31 3.1
3.5
3.8
4.9
6.9
8.7 11.2
20
25
28
31.5 250
280
315
400
560
710 2JK-2.5×1.5
2JK-2.5×1.5P 1500 1590 337 687 1043 2JK-2.5×1.8
2JK-2.5×1.8P 1800 1890 400 814 1235 2JK-3.0×1.5
2JK-3.0×1.5P 3000 1500 1590 130 80 339 693 1053 37 3.7
4.1
4.6
5.8
8.2
10.3 11.2
20
25
28
31.5 450
500
560
710
1000
1250 2JK-3.0×1.8
2JK-3.0×1.8P 1800 1890 414 844 1282 2JK-3.0×2.0
2JK-3.0×2.0P 2000 2090 461 939 1425 2JK-3.0×2.2
2JK-3.0×2.2P 2200 2290 508 1034 1569 2JK-3.5×1.7
2JK-3.5×1.7P 3500 1700 1790 170 115 384 786 1195 43 4.3
4.8
5.4
6.8
9.6
12.1 11.2
20
25
28
31.5 710
800
910
1120
1600
2000 2JK-3.5×2.1
2JK-3.5×2.1P 2100 2190 483 986 1496 2JK-3.5×2.4
2JK-3.5×2.4P 2400 2490 560 1141 1732 2JK-3.5×2.6
2JK-3.5×2.6P 2600 2690 604 1229 1865 15.8×11.0×4.0 92000

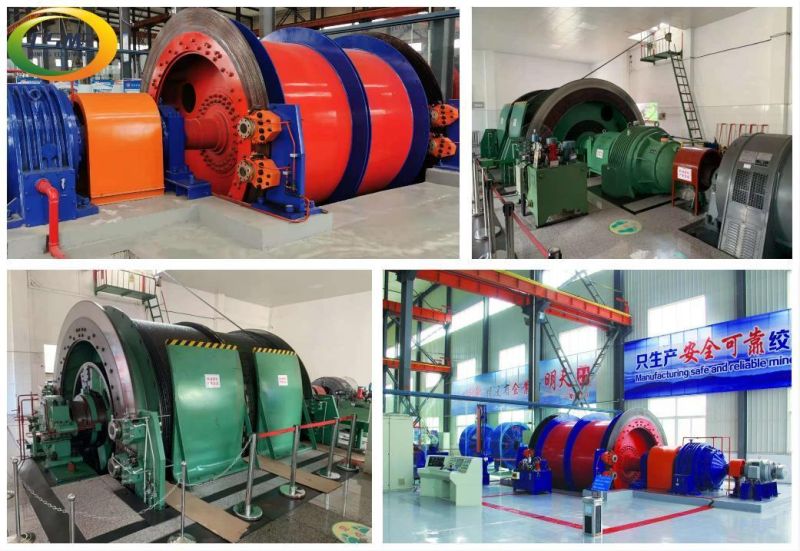

Product Photo:

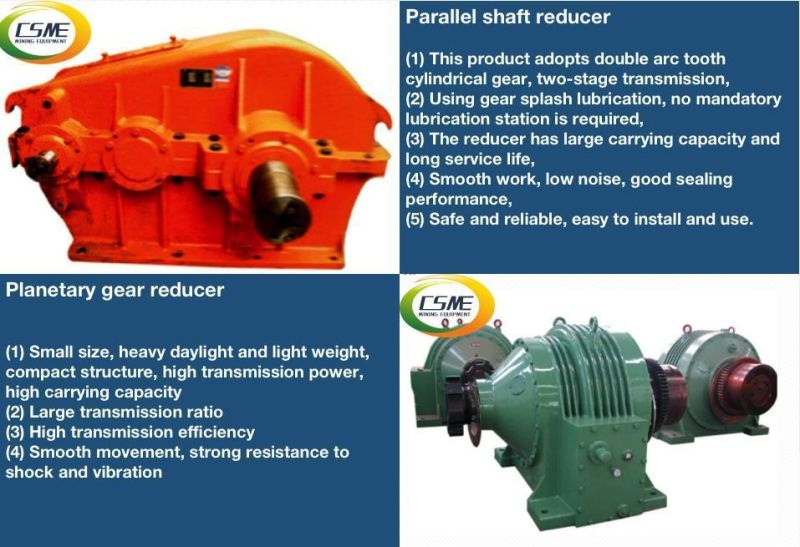

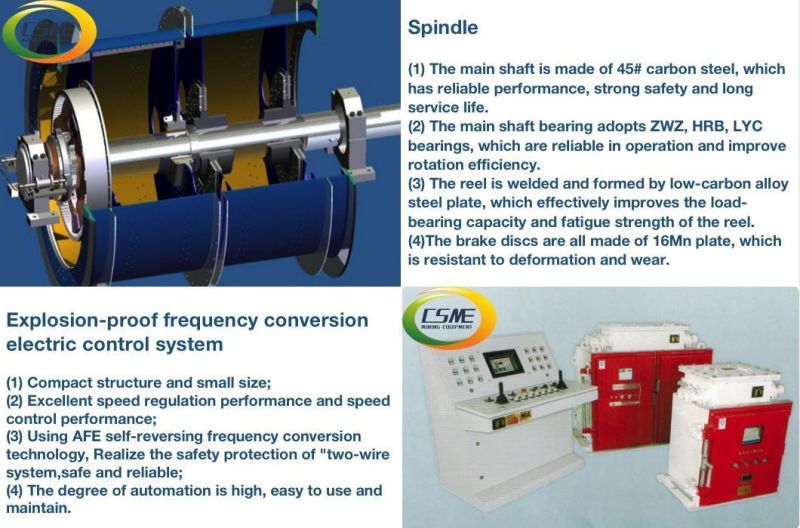

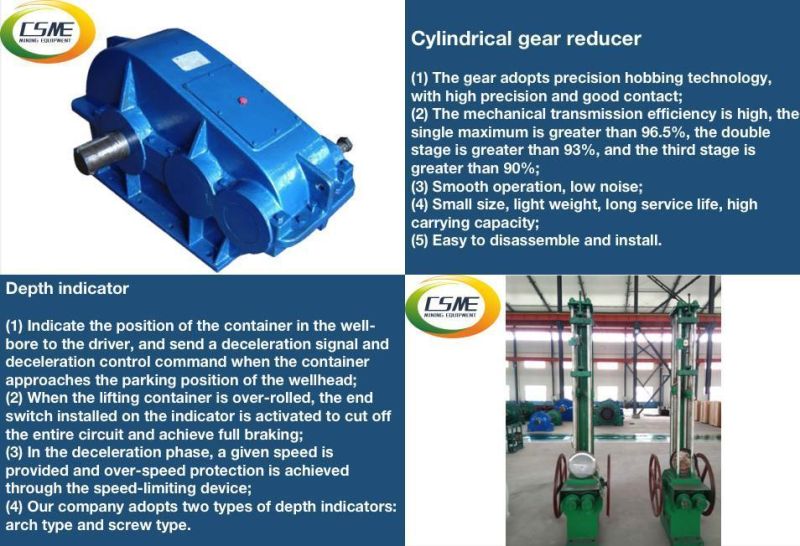

Product Details:

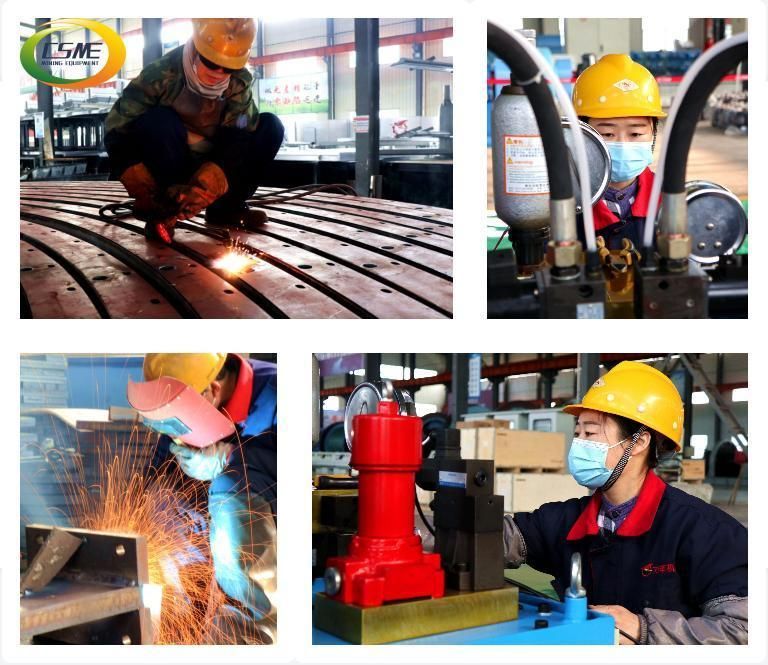

Factory workshop:

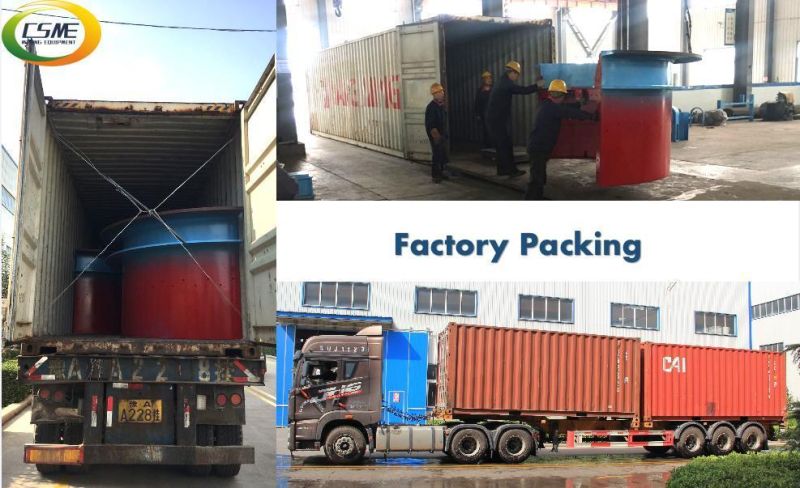

Pakage:
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.

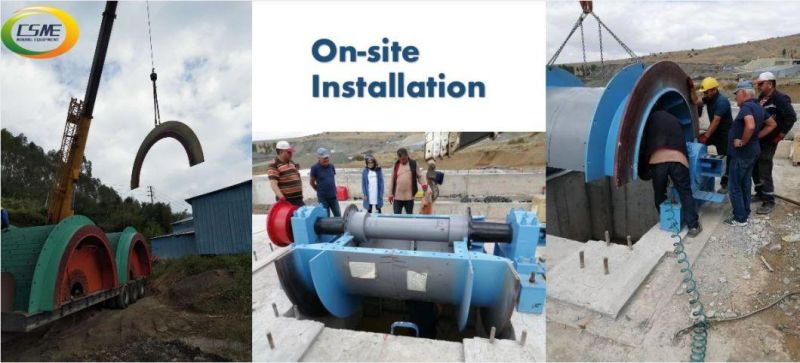

5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
