Super Sized Steel Plate Vacuum Lifter with Ce Marking
Qingdao Toyo Industry Co., Ltd.- Drive Mode：Electric
- Color：Yellow
- Suction Cup Material：NBR or Silicone
- Suitable for：Glass,Steel,Aluminumplate
- Power-off Protection：15-30minutes
- Operation Mode：Horizontal Handling
Base Info
- Model NO.：TOYOCC-HMN
- Safety Loading Capacity：2000kg
- Power Supply：Customized
- Cooperated with：Over-Head Crane
- Suspension Deflection：L Below1060mm
- Pressure Sensor：-600 Mba
- Alarm System：Light+Buzzer
- Non-Returning Valve：G 1,2"
- Vacuum Filter：G 1,2"
- Application：Workshop Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Moving
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Transport Package：Container
- Specification：custom
- Trademark：Toyo
- Origin：China
- HS Code：8486901000
- Production Capacity：500000 Pieces
Description
Basic Info.
Model NO. TOYOCC-HMN Safety Loading Capacity 2000kg Power Supply Customized Cooperated with Over-Head Crane Suspension Deflection L Below1060mm Pressure Sensor -600 Mba Alarm System Light+Buzzer Non-Returning Valve G 1/2" Vacuum Filter G 1/2" Application Workshop Crane Lift Mechanism Lift Chain Carrying Capacity Special Weight Level Moves Moving Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification CE Transport Package Container Specification custom Trademark Toyo Origin China HS Code 8486901000 Production Capacity 500000 PiecesProduct Description
Large-sized Electrical Glass/Steel Plate Vacuum Lifter Features- Designed for super-size glass/steel plate
- Heavy Lifting efficient, convenient to operate and handle
- Customized No. of vacuum suction cups, working load up to 2T
- Sealed cover for components protection, suited for outdoor use
- Power-off protection and alarm function for lack of vacuum.
| Item | Spare Parts | Specification | Supplier | Qty. |

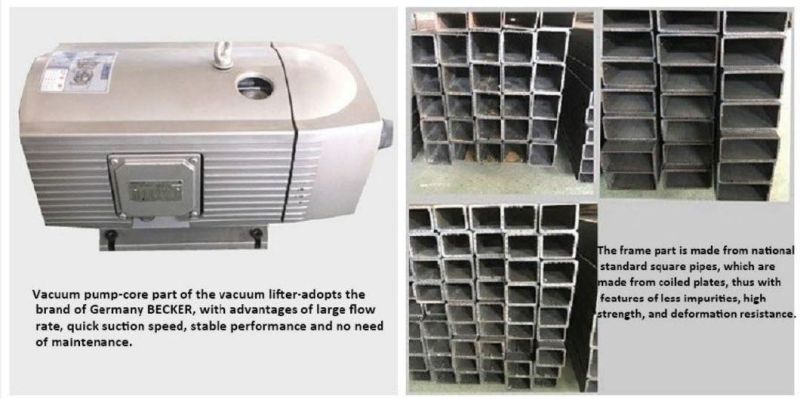

| 1 | Vacuum Pump | VT4.40,0.35kW,Max. vacuum 80% | Germany BECKER | 1 |
| 2 | Pressure Sensor | -600 mpa | TITA | 1 |

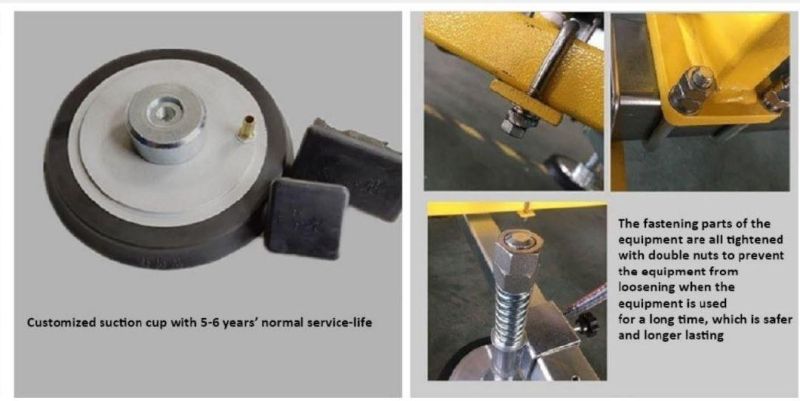

| 3 | Suction Cup | chemigum, Ф300mm | Made in China | 18 |
| 4 | Vacuum Non-returning Valve | G 1/2" | Japan SMC | 1 |
| 5 | Vacuum Filter | G 1/2" | Made in China | 1 |
| 6 | Manual Ball Valve | G 3/4",two-position two way | Made in China | 18 |
| 7 | Manual Slide Valve | G 2",two-position two way | Made in China | 1 |
| 8 | Alarm system | alarm light+buzzer | Japan Siemens | 1 |

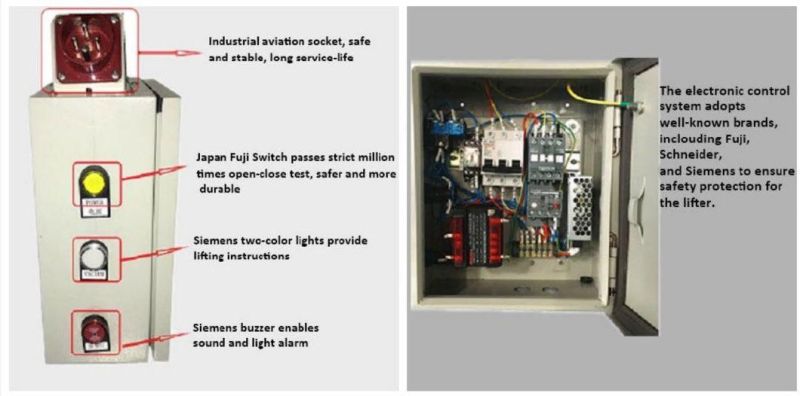

| 9 | Electrical Control Panel | default phase protection, overload protection, leakage protection | Made in China | 1 |

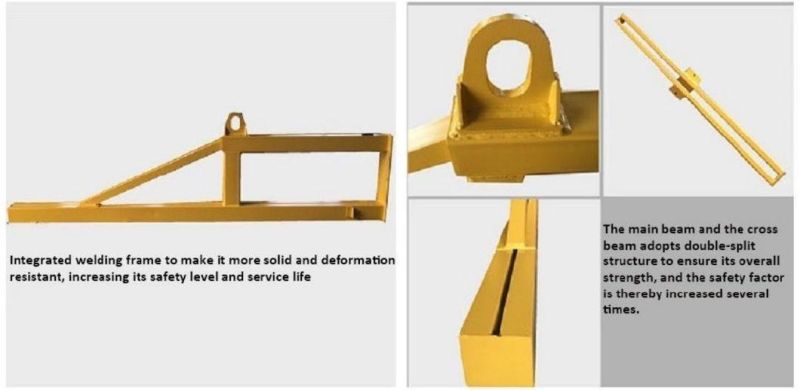

| 10 | Steel Structure | welded surface spray treatment | Made in China |

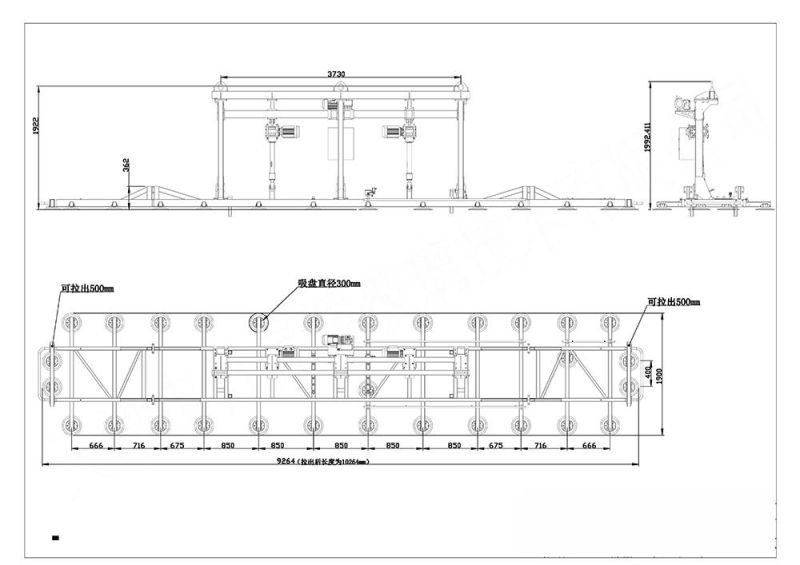

Appearance Diagram
