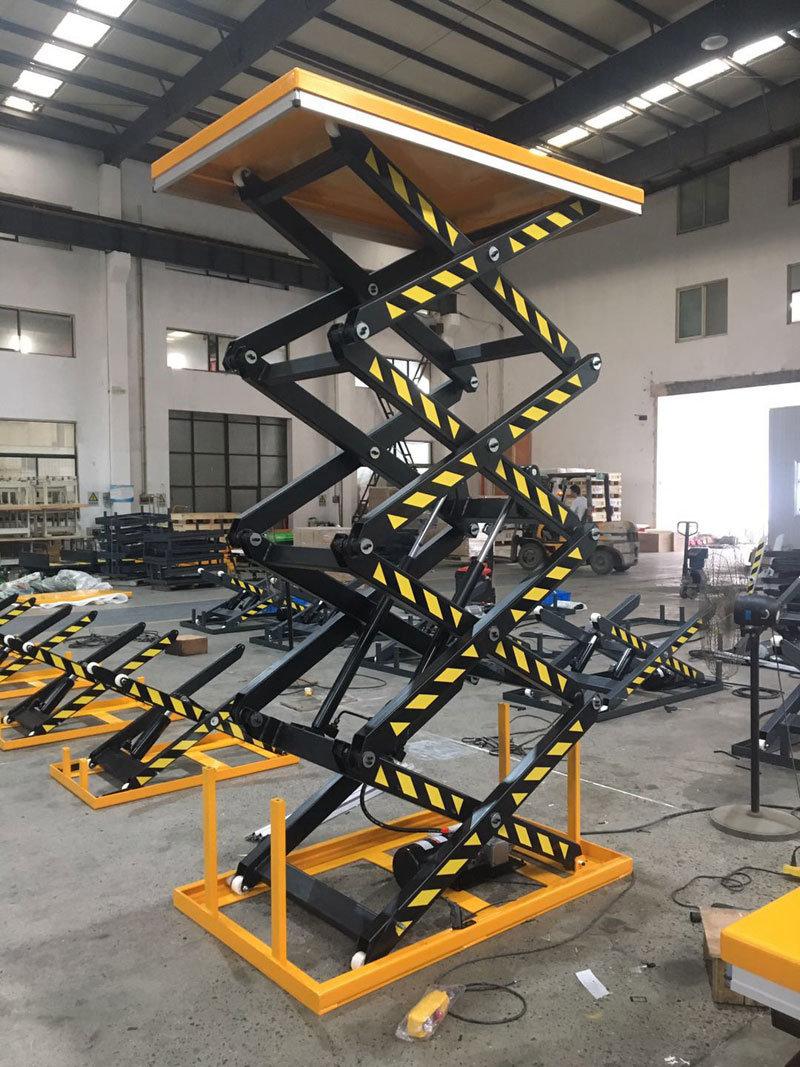

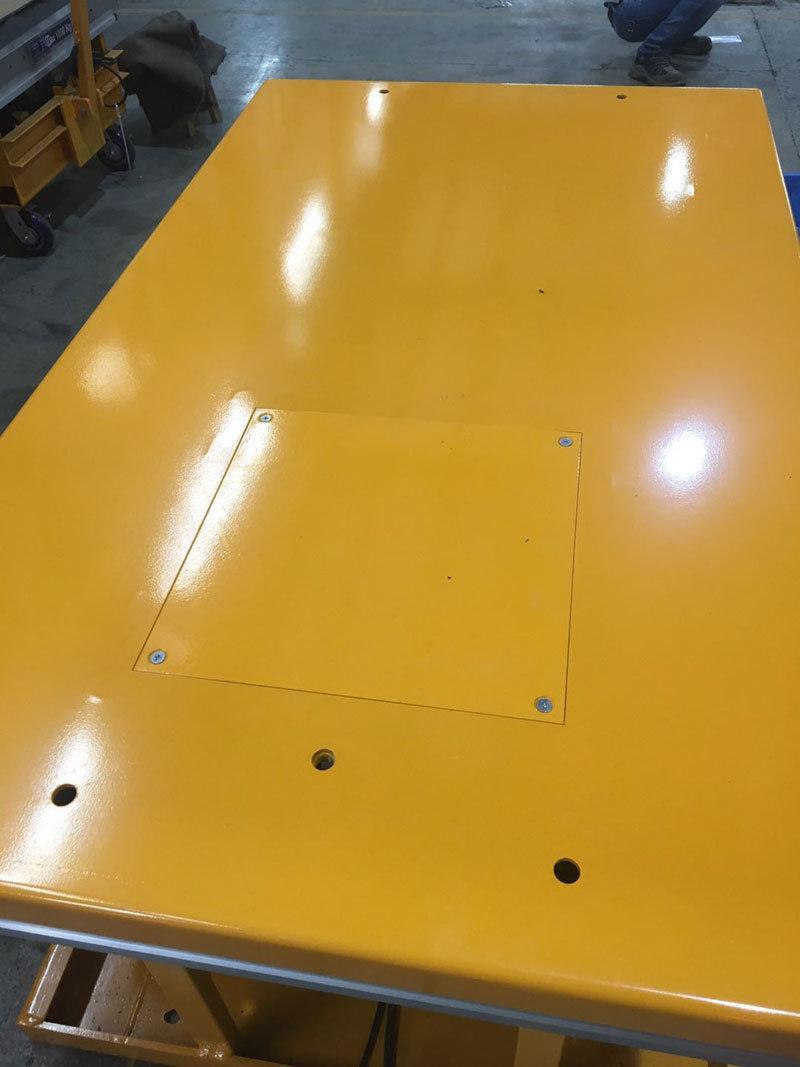

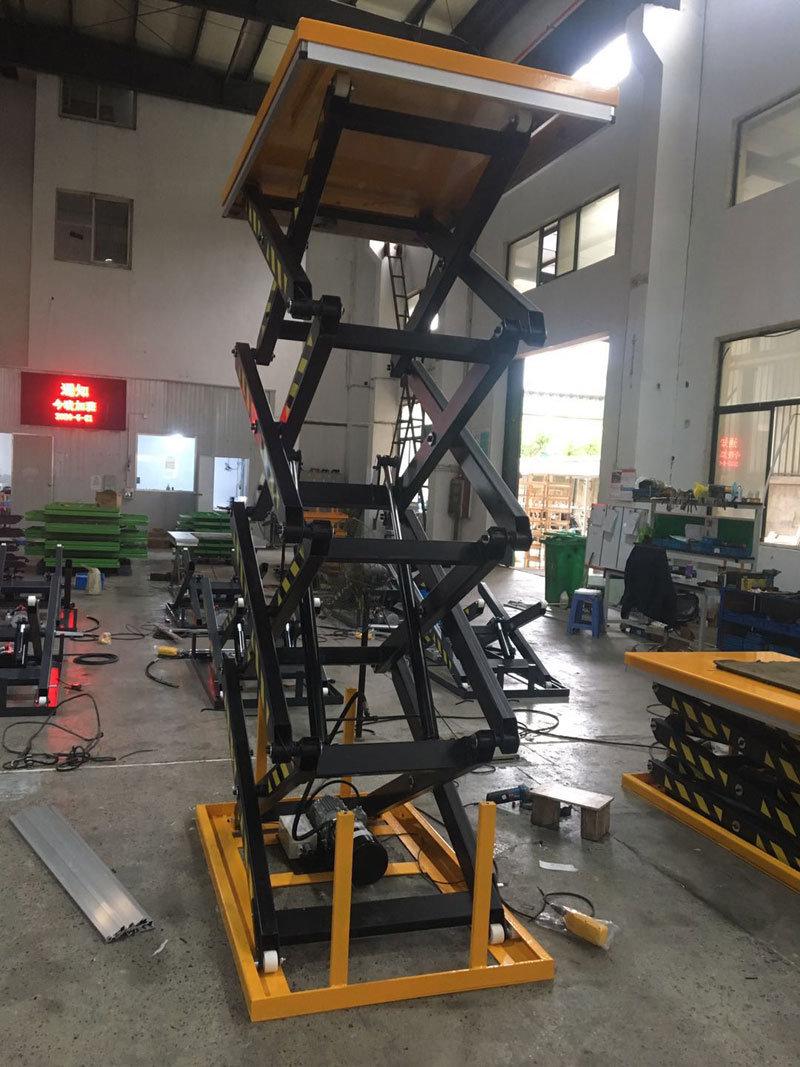

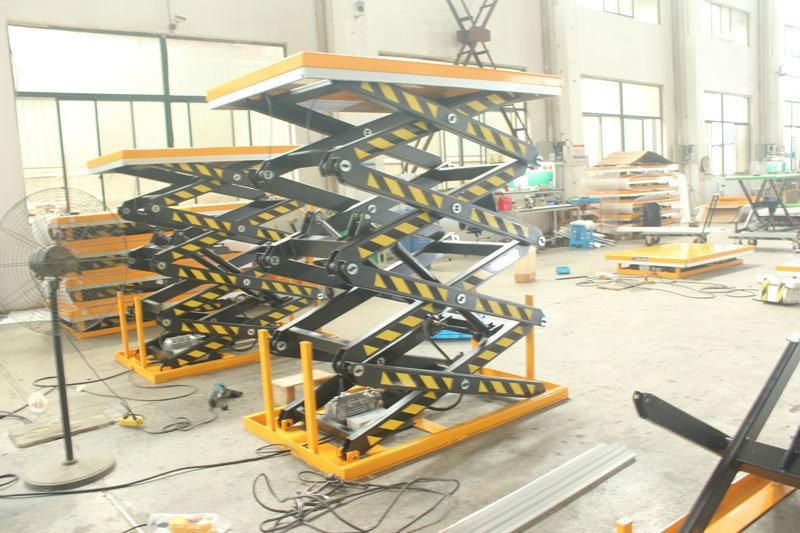

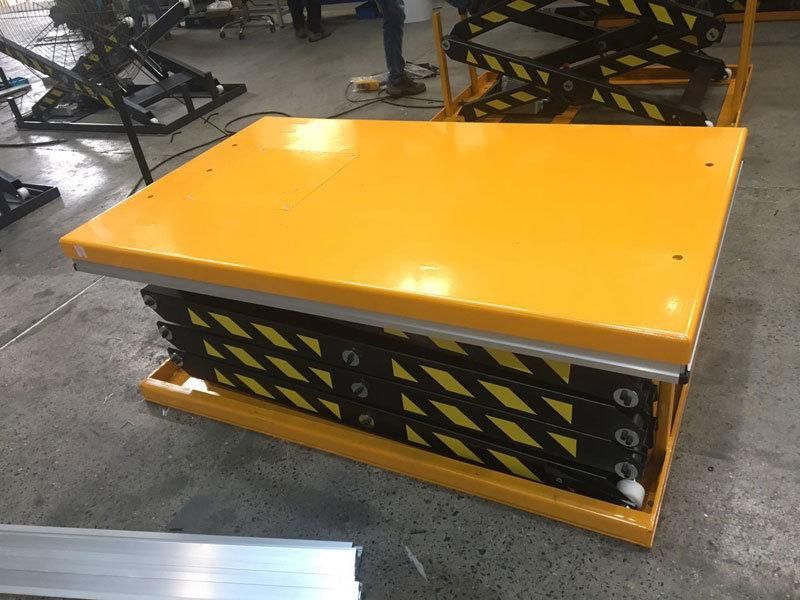

Hydraulic Electric Scissor Lift with Maintenance Hole
Wuxi Buytool Industrial Equipment Co., Ltd.- Lift Mechanism:Scissor Lift
- Carrying Capacity:Weight Level
Base Info
- Model NO.:HF400
- Moves:Stationary
- Driven Type:AC
- Running Mode:Stationary
- Certification:CE, ISO 9001
- Capacity:400-1600kg
- Min. Height:600mm
- Max. Height:4210mm
- Table Size:1700*1000mm
- Lift Time:30-40s
- Color:Customizable
- Net Weight:548-858kg
- Type:Stationary Lift Table
- Certificate:Ce Approved
- Scissor:Four Scissors Lifting Platform
- Transport Package:1PC,Wooden Case
- Specification:customizable
- Trademark:Buytool
- Origin:Made in China
- HS Code:8427900000
- Production Capacity:1000PCS,Month
- Package size per unit product:175.00cm * 105.00cm * 75.00cm
- Gross weight per unit product:900.000kg
Description
Basic Info.
Model NO. HF400 Moves Stationary Driven Type AC Running Mode Stationary Certification CE, ISO 9001 Capacity 400-1600kg Min. Height 600mm Max. Height 4210mm Table Size 1700*1000mm Lift Time 30-40s Color Customizable Net Weight 548-858kg Type Stationary Lift Table Certificate Ce Approved Scissor Four Scissors Lifting Platform Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 1000PCS/MonthPackaging & Delivery
Package size per unit product 175.00cm * 105.00cm * 75.00cm Gross weight per unit product 900.000kgProduct Description
Hydraulic Electric Scissor Lift with Maintenance HoleHeavy duty design.
Conforms to En1570 and ANSI/ASME safety standard.
Safety clearance between scissors to prevent from trapping.
Installed aluminum safety bar to prevent from trapping while descending.
Built-in relied valve and compensation flow control valve to fulfill overload protection and control
Lowering speed.
There is safety valve to stop the table or keep slow descending in case of hose burst.
Self-lubricating bushing in all pivot points to prolong the lifespan.
Model | HF400 | HF800 |
Capacity (kg) | 400 | 800 |
Min. Height(mm) | 600 | 706 |
Max. Height(mm) | 4140 | 4210 |
Platform size(mm) | 1700× 1000 | 1700× 1000 |
Base size (mm) | 1600× 1000 | 1606× 1010 |
Raising time(S) | 30-40 | 65-75 |
Descending time(S) | 30-40 | 75-85 |
Power Pack | AC380V, 2.2KW | AC380V, 2.2KW |
Net weight(kg) | 548 | 858 |
FAQ:
Q: What about the quality of the products?

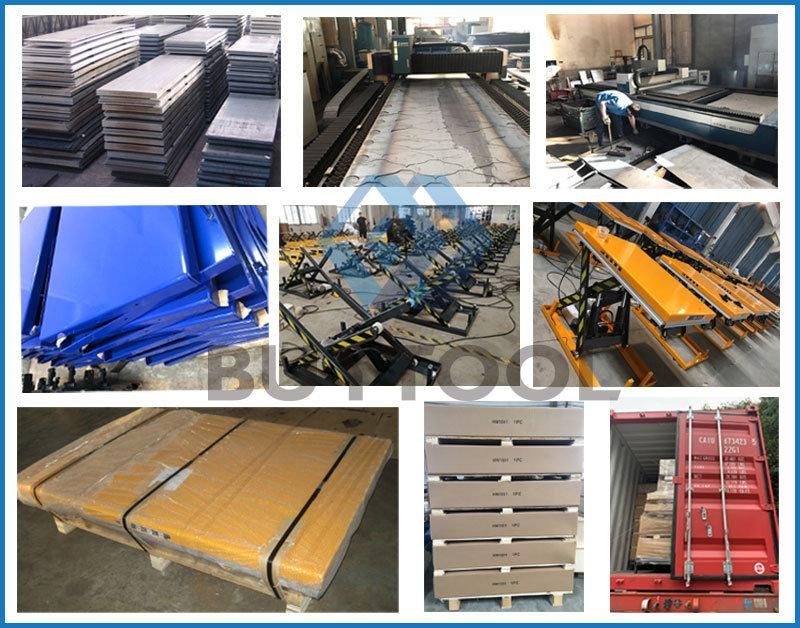

A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
