Self-Propelled Electric Scissor Work Lift with Hyraulic Driven

Jinan Aos International Co., Ltd
  • After-sales Service：Free Spare Parts Wihin One Year
  • Warranty：1year
  • Application：Warehouse Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Self-propelled

Base Info

  • Model NO.：GTJZ-8
  • Driven Type：Hydraulic
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Max Platform Height：8m
  • Load Capacity：450kg
  • Platform Size：2.5*1.15*1.83m
  • Platform Extend Reach：0.9m
  • Platform Extend Load：113kg
  • Min Ground Clearance：0.1m
  • Wheelbase：1.89m
  • Turning Radius (Inside/Untside)：Turning Radius (Inside)(M)
  • Gradeability：25%
  • Lifting Motor：24V,4.5kw
  • Lifting Speed：3-5m,Min
  • Driving Speed (Stowed)：3.5km,H
  • Driving Speed(Raised)：0.8km,H
  • Battery Group：4*6V,225ah
  • Charger：24V,30A
  • Transport Package：Plywood Case Packing
  • Specification：8m
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：50000PCS,Year

Description

Overview Product Parameters

Detailed PhotosMain Features

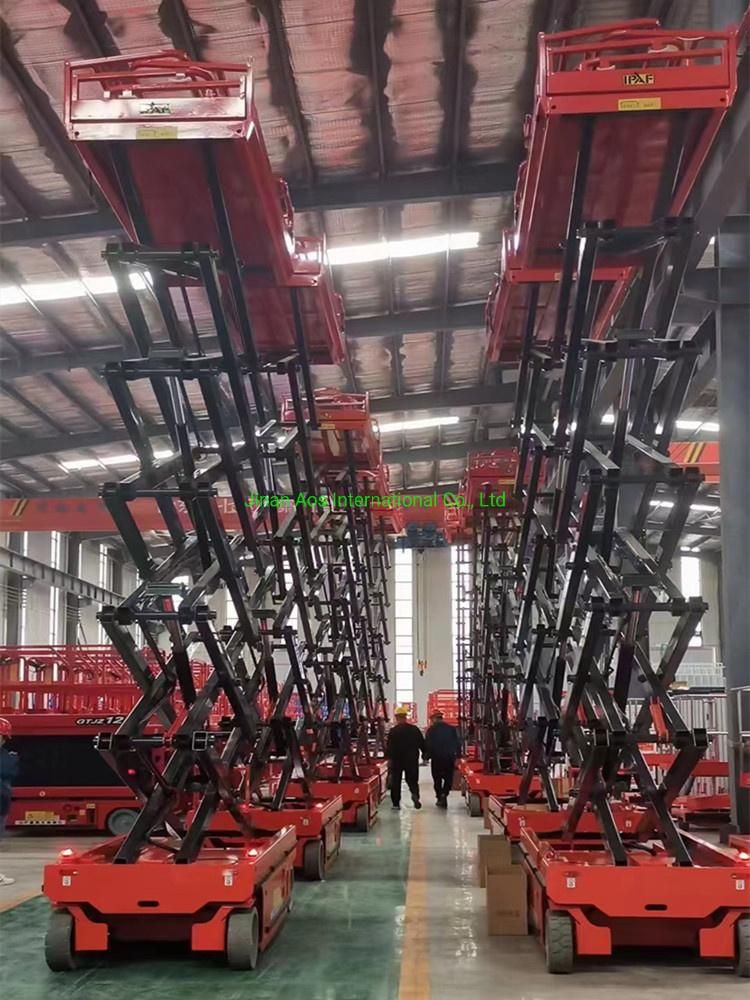

Workshop Show

Self-Propelled Electric Scissor Work Lift with Hyraulic Driven
