3000kgs Hot Sale Electric Lift Tables Hydraulic
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：110V, 220V, 380V, 400V, Customized
- Color：Red, Yellow, Orange, Blue, Green, Customized
- Load Capacity：1000kg, 2000kg, 4000kg, Customized
- Lifting Height：1m, 1.3m, 1.4m, 1.5m, Customized
- Platform Size：Standard Models, Customized Models
- Safety Precautions 1：Aluminum Safety Sensor
- Safety Precautions 2：Explosion Proof Valve
- Safety Precautions 3：Spillover Valve
- Safety Precautions 4：Emergency Decline Valve
- Customization 1：with Rollers on Top
- Customization 2：with Protective Curtains
- Customization 3：with Wheels for Easy Moving
- Customization 4：with Guardrails
- Customization 5：Battery Operated Moving
- Customization 6：One Controller for Two Units Working Together
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description

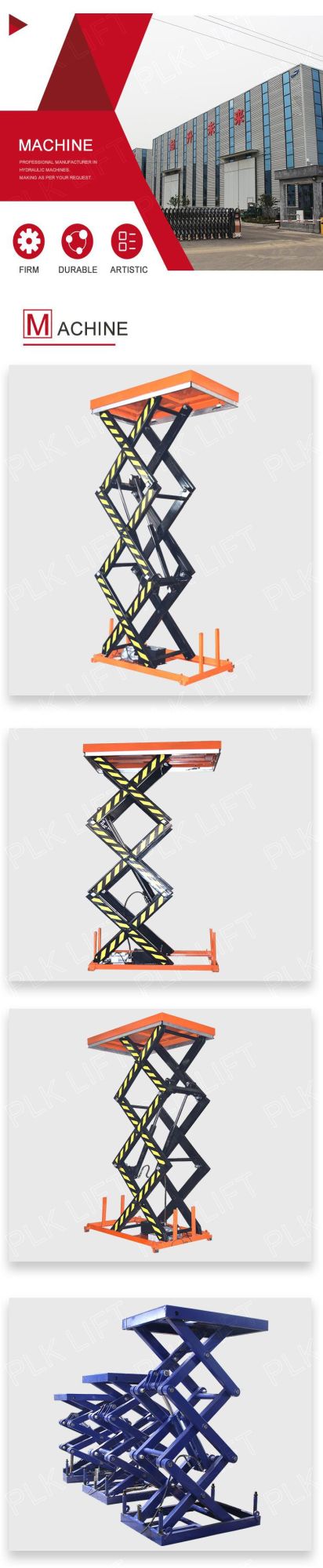

Multi scissor
1ph or 3ph210 HD2000 2000 350 1780 1300X850 35-45 295 HD4000 4000 400 2050 1700X1200 55-65 520 HT1000 1000 470 3000 1700x1000 35-45 450 HT2000 2000 560 3000 1700x1000 50-60 750 HF400 400 600 4140 1700x1000 30-40 800 HF800 800 706 4210 1700x1000 70-80 858
Features & Advantages:
1ph or 3ph
Features & Advantages:

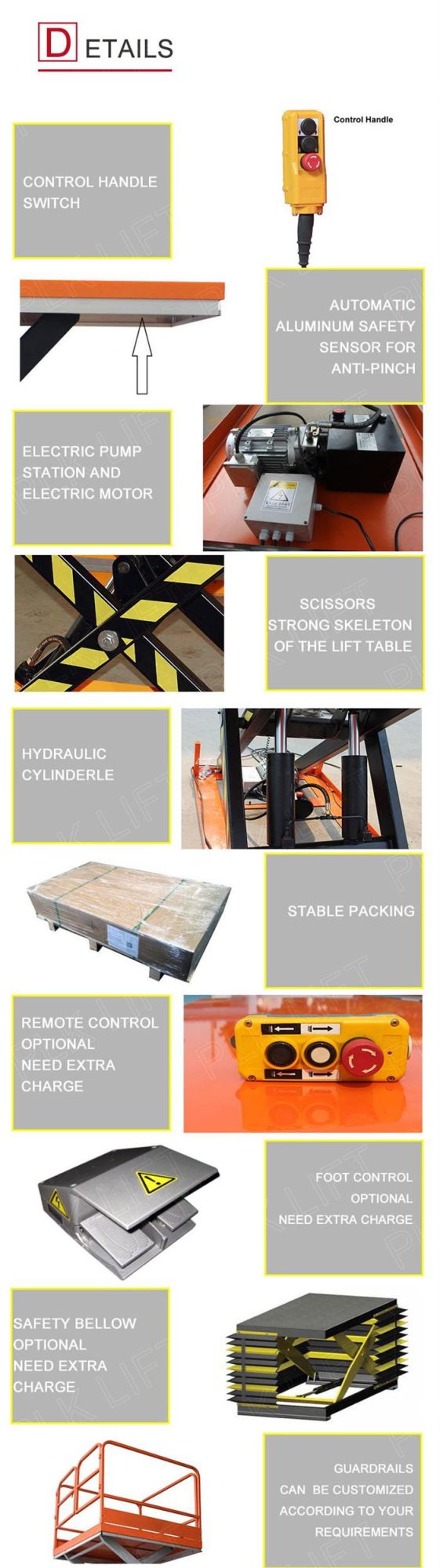

- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
