Single Drum Mining Hoist for Lifting Mine From Deep Underground Wells

Changsha Mining Equipment Co., Ltd.
  • After-sales Service：Video Training or Send Engineer to The Site
  • Warranty：12 Months
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：3.7~5.8 M,S
  • Carrying Capacity：130 Kn

Base Info

  • Model NO.：Jk (B) -3X2.2
  • Tonnage：57 T
  • Reel Number：1
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：ISO 9001
  • Standard：National Standards
  • Drum Diameter：3 M
  • Drum Width：2.2 M
  • One Layer Lifting Height：508 M
  • Two Layer Lifting Height：1034 M
  • Three Layer Lifting Height：1569 M
  • Wire Rope Diameter：37 mm
  • Speed Ratio：20~31.5 I
  • Motor Power：560~900 Kw
  • Motor Speed：<= 750 R,Min
  • Transport Package：Null
  • Specification：12.5*11.0*3.5m3
  • Trademark：CSME
  • Origin：Changsha, China(Mainland)
  • HS Code：8425110000
  • Production Capacity：50 Sets,Month

Description

900
1000
1120
140014.2×11.0×4.081000JK- 3.5×2.8
JK- 3.5×2.8P28006481318200014.5×11.0×4.085000Product Photo:
Single Drum Mining Hoist for Lifting Mine From Deep Underground WellsSingle Drum Mining Hoist for Lifting Mine From Deep Underground Wells

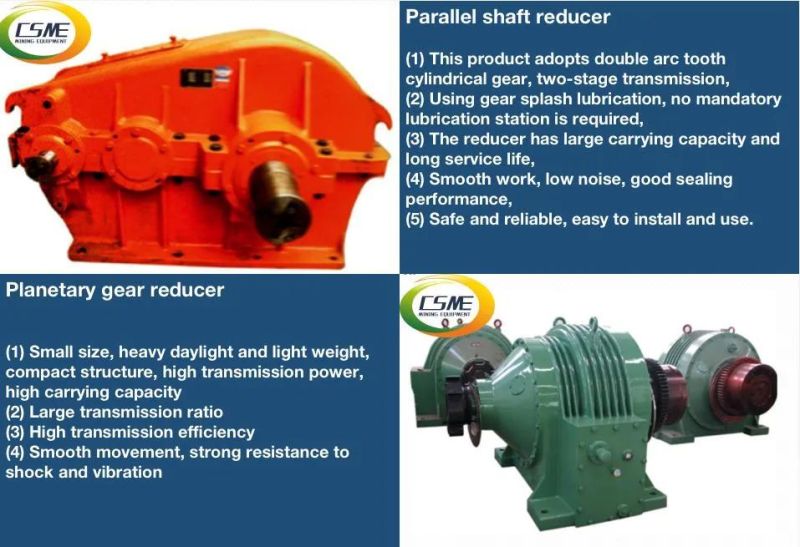

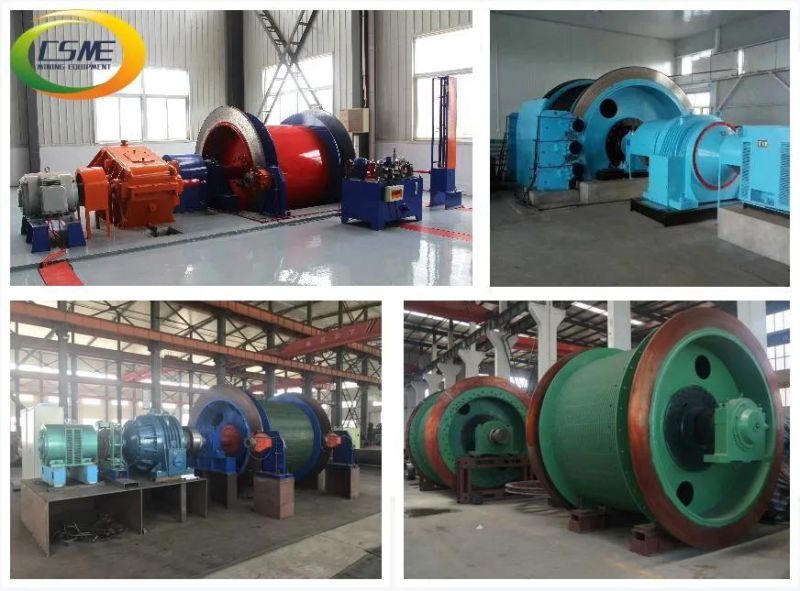

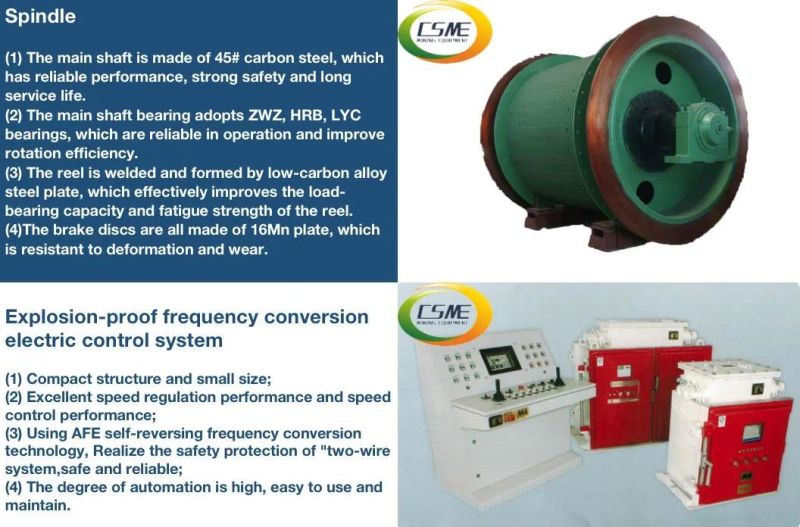

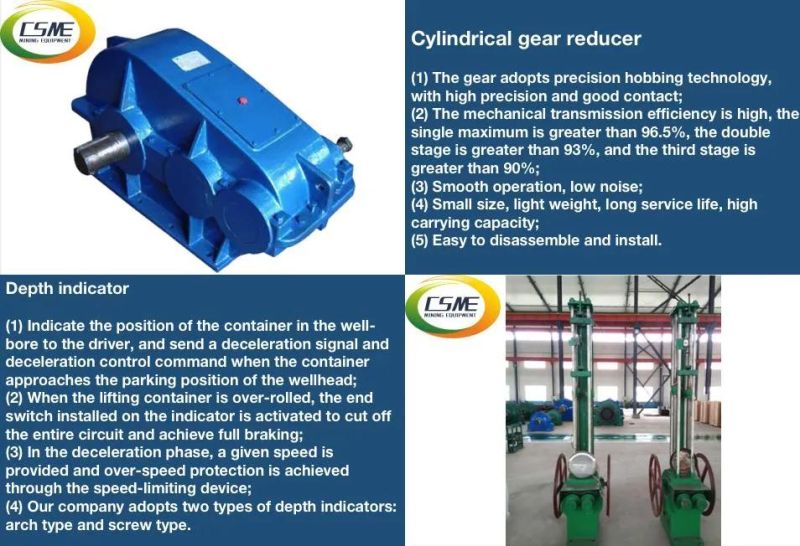

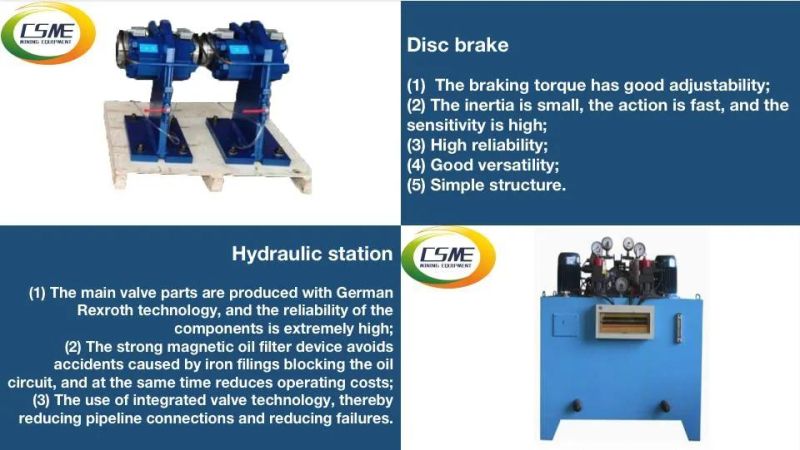

Product Details:Single Drum Mining Hoist for Lifting Mine From Deep Underground Wells
Single Drum Mining Hoist for Lifting Mine From Deep Underground WellsSingle Drum Mining Hoist for Lifting Mine From Deep Underground WellsSingle Drum Mining Hoist for Lifting Mine From Deep Underground Wells

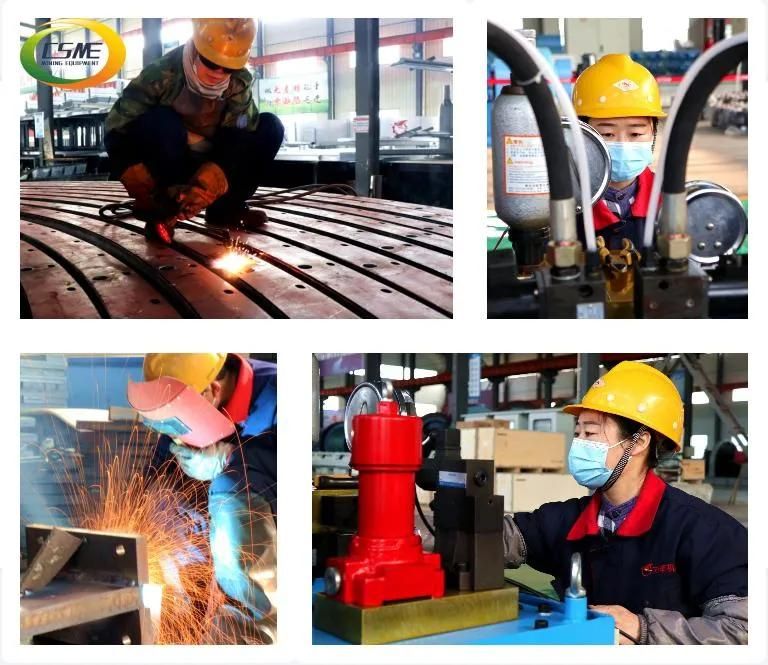

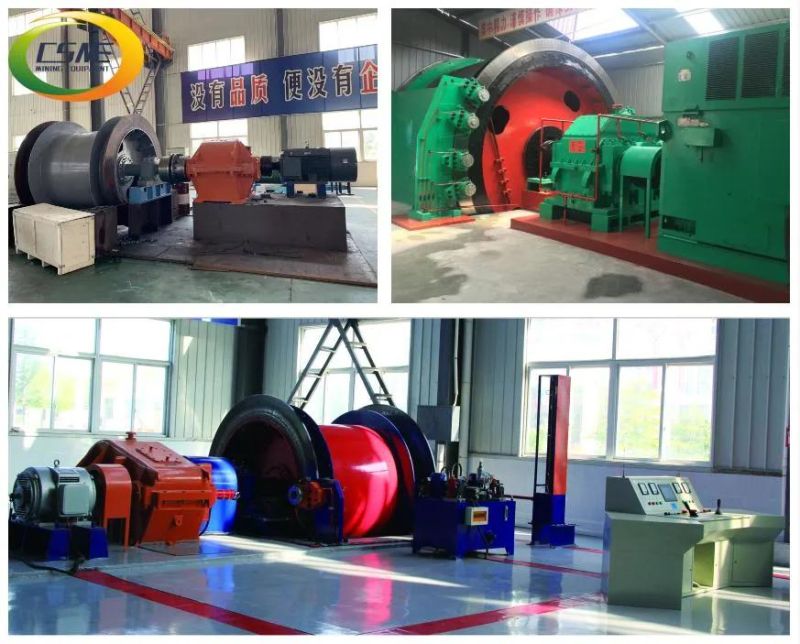

Factory workshop:
Single Drum Mining Hoist for Lifting Mine From Deep Underground Wells

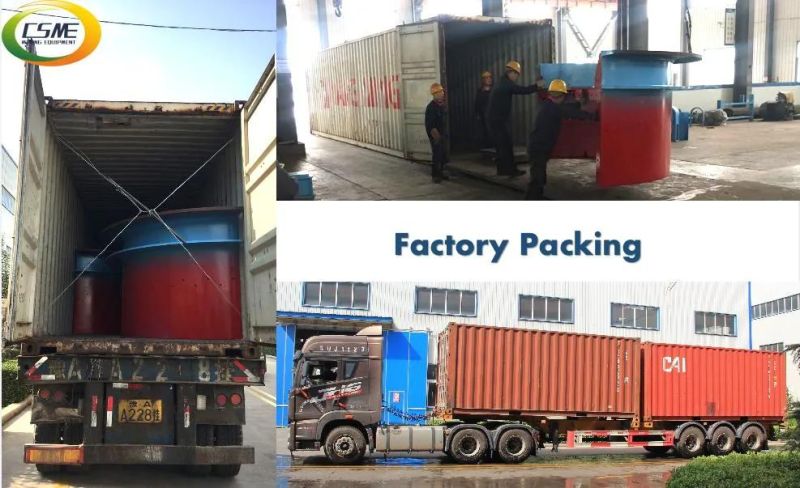

Pakage:
Single Drum Mining Hoist for Lifting Mine From Deep Underground WellsSingle Drum Mining Hoist for Lifting Mine From Deep Underground Wells
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
