• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating, Emergency Stop
• Certification：GS, CE, RoHS, ISO 9001
• Lifting Height：205~4140mm or Customized
• Load Capacity：500~4000kg or Customized
• Platform Size：1600*1000mm or Customized
• Customized Service：Platform Size,Load Capacity,Lifting Height
• Switch：up,Down Button
• Anti-Corrosion：Yes
• Emergency Decline Valve：Yes
• Design：Scissor Structure
• Platform Materials：Steel or Aluminum or Stainless Steel
• Optional 1>：Remote Control,Foot Step Control
• Optional 2>：Wheel,Guardrail,Organ Cover,Roller,Rotary Platform
• Usage：Factory,Workshop,Home Garage
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428902000
• Production Capacity：2000sets,Month

Basic Info.

Running Mode Stationary Feature Explosion-Proof, Insulating, Emergency Stop Certification GS, CE, RoHS, ISO 9001 Lifting Height 205~4140mm or Customized Load Capacity 500~4000kg or Customized Platform Size 1600*1000mm or Customized Customized Service Platform Size,Load Capacity,Lifting Height Switch up/Down Button Anti-Corrosion Yes Emergency Decline Valve Yes Design Scissor Structure Platform Materials Steel or Aluminum or Stainless Steel Optional 1> Remote Control,Foot Step Control Optional 2> Wheel,Guardrail,Organ Cover,Roller,Rotary Platform Usage Factory,Workshop,Home Garage Transport Package Wooden Pallet and High Quality Paper Boxes with St Trademark SAGAFIRST Origin China HS Code 8428902000 Production Capacity 2000sets/Month

Product Description

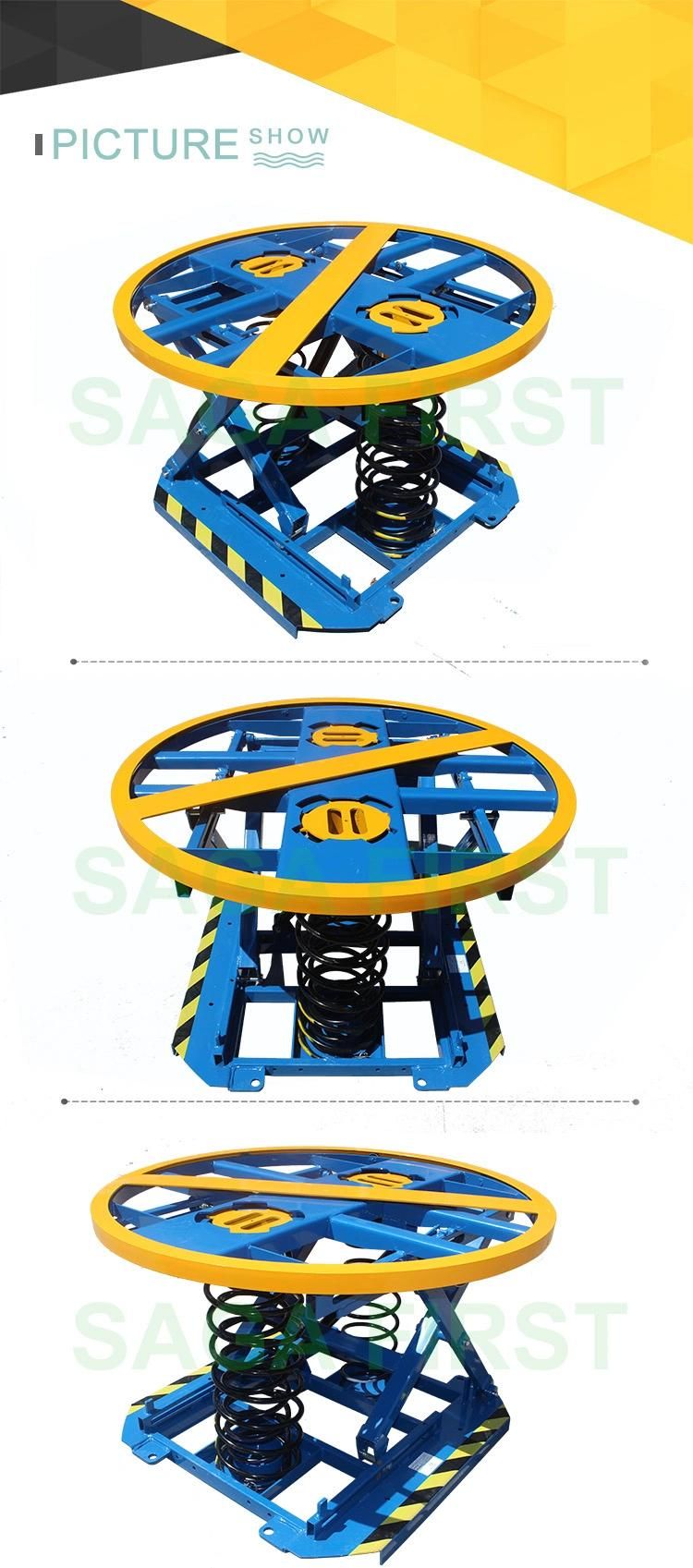

Electric Lifting Equipment Hydraulic Pallet Spring Scissor Lift Table
OEM & ODM Service
 SAGAFIRST Brand Scissor Lift Tables are high quality electronic hydraulic scissor lifts up to American standard ANSI/ASME and Europe standard EN1570. Standard model types load capacity are from 1000kg to 4000kg.Lifting height from 205mm to 4140mm.Please check if the following standard model types meet your demands.If not,just tell us required platform size,load capacity and lifting height.We'll customize it.

1. Automatically maintain a load at the ideal height for manual loading and uploading.
2. Automatically maintain the top pf the load at the working height.
3. Includes a steel scissor lift mechanism and at least one large compression spring.
4. The springs are chosen to match the weight and height of a fully loaded pallet.
5. With a shock absorber to eliminate tendency for the load to bounce on the springs.

Model	HS2000A
Load Capacity (kg)	182-2000kg
Max. Pallet Size(mm)	1270*1270*1820
Base Size(mm)	920*933
Lowered Platform Height(mm)	242
Max Platform Height(mm)	705
Rotary Platform Diameter(mm)	1108
Net Weight(kg)	173
Construction	Steel
Operation	Spring Lift

Compact structure can be modularized into a small space;With a new electric propulsion system, ride provides more flexibility,

Safety Precautions:
1. Explosion-proof valves                  2. Spillover valve
3. Emergency decline valve              4. Overload protection locking device.
5. Emergency decline valve              6. Automatic Safety sensor:stop when come across barriers.


Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.

Features and Advantages:
1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function.
2. High quality pump station make the scissor lift table lifts and falls very stably.
3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye can help to lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.Stationary scissor lift table is mainly used in workshop, warehouse and factory .And it can load cars just as parking lot and automobile showrooms. Also the lift can use in electric and building roof maintenance and many industrial application.

Standard Scissor Lift Table will be packed in paper carton and wooden pallet.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
Two year quality guarantee.send the parts free of charge


Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance.  >USD5000:  30%TT in advance,balance before shipment.  >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting  color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
