• Model NO.：SOV-CLP
• Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Name：Single Acting Pancake Lock Nut Jack for Constructi
• Cylinder Capacity Ton (Kn)：60 (606)-520 (5114)
• Stroke mm：45-50
• Cylinder Effective Area Cm2：86, 6-730, 6
• Oil Capacity Cm3：432-3287
• Collapsed Height(a) mm：125-192
• Extended Height(B) mm：175-237
• Outside Diameter(D) mm：140-400
• Weight Kg：15-189
• Transport Package：in a Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8412210000
• Production Capacity：500sets Per Month

Basic Info.

Model NO. SOV-CLP Certification EPA, CS, CE, ISO 9001:2000, ISO 9001:2008 Condition New Name Single Acting Pancake Lock Nut Jack for Constructi Cylinder Capacity Ton (Kn) 60 (606)-520 (5114) Stroke mm 45-50 Cylinder Effective Area Cm2 86, 6-730, 6 Oil Capacity Cm3 432-3287 Collapsed Height(a) mm 125-192 Extended Height(B) mm 175-237 Outside Diameter(D) mm 140-400 Weight Kg 15-189 Transport Package in a Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8412210000 Production Capacity 500sets Per Month

Product Description

                              Single Acting Pancake Lock Nut Jack for Construction

Description:
§  SOV pancake lock nut cylinders have a flat design for use in confined areas
§  Safety lock nut for mechanical load holding
§  Single-acting load return
§  Special bearing design resists sideload forces
§  Overflow port functions as a stroke limiter
§  CR-400 coupler and dust cap included on all models

Product Parameter

Model Number	Cylinder    Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-CLP-602	60 (606)	50	86,6	432	125	175	140	15
SOV-CLP-1002	100 (1027)	50	146,8	734	137	187	175	26
SOV-CLP-1602	160 (1619)	45	231,3	1040	148	193	220	44
SOV-CLP-2002	200 (1999)	45	285,6	1285	155	200	245	57
SOV-CLP-2502	260 (2567)	45	366,8	1650	159	204	275	74
SOV-CLP-4002	400 (3916)	45	559,5	2517	178	223	350	134
SOV-CLP-5002	520 (5114)	45	730,6	3287	192	237	400	189

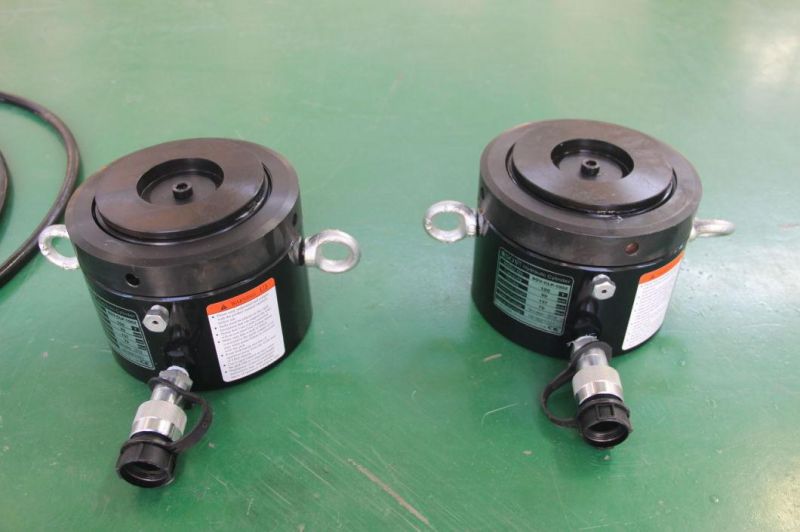

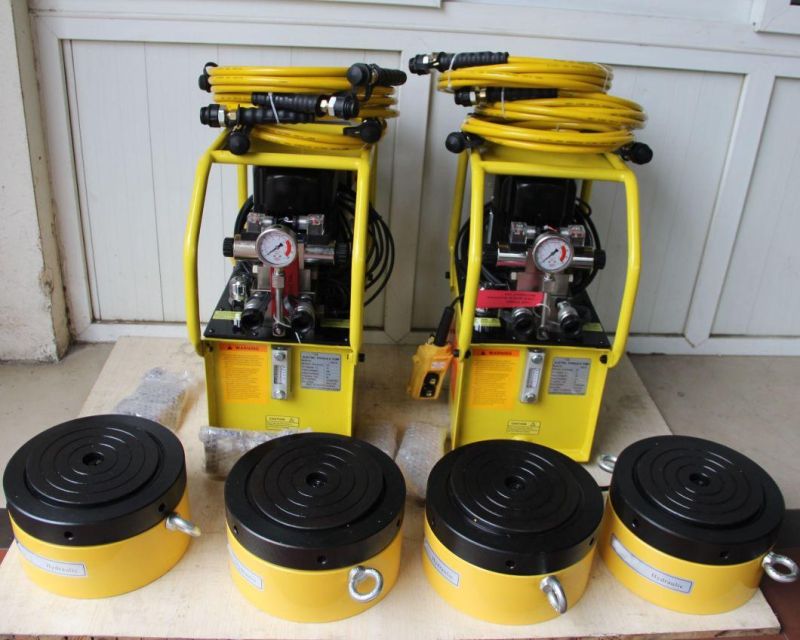

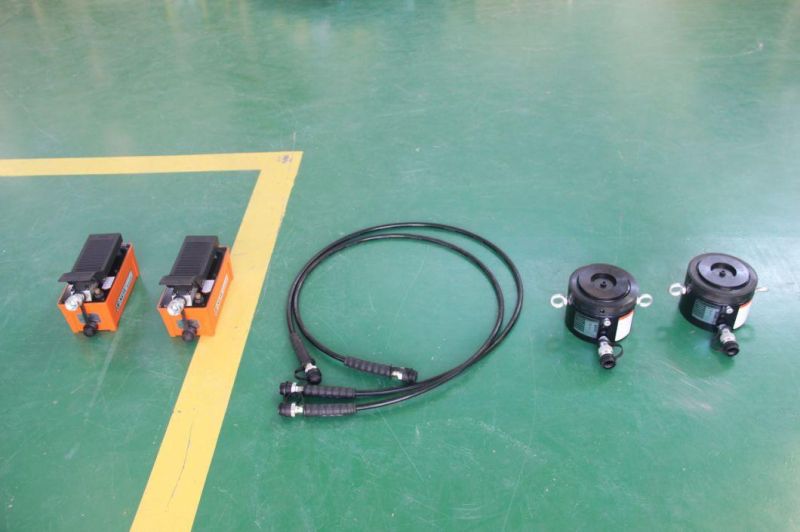

Photos

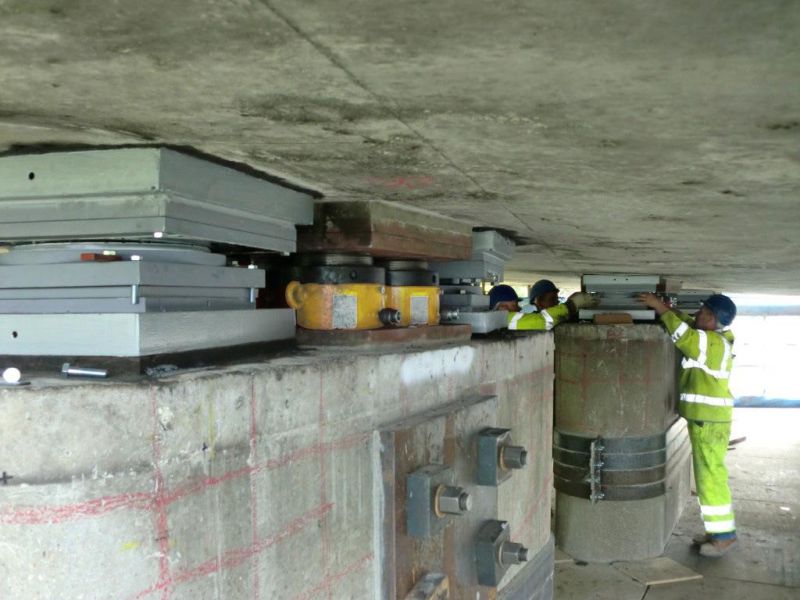

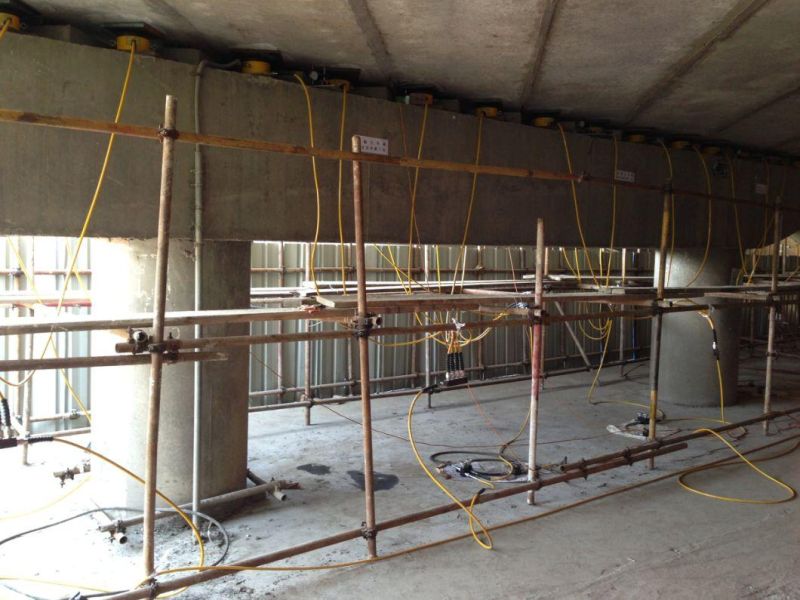

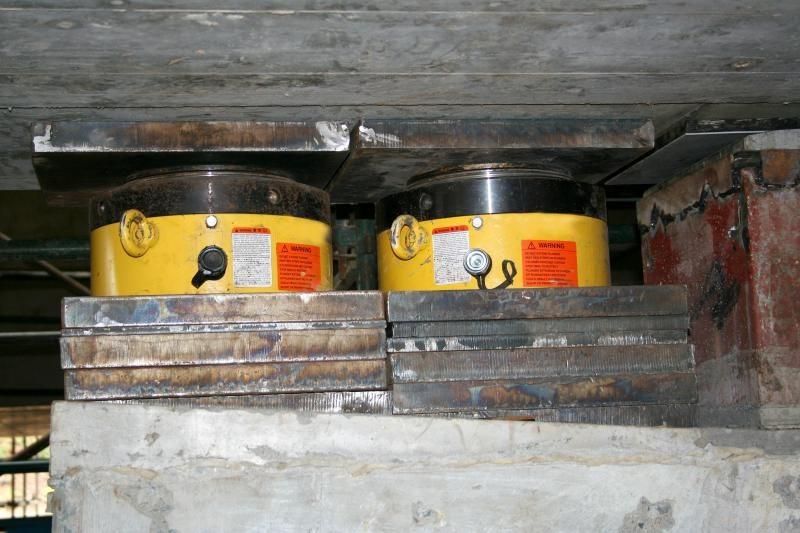

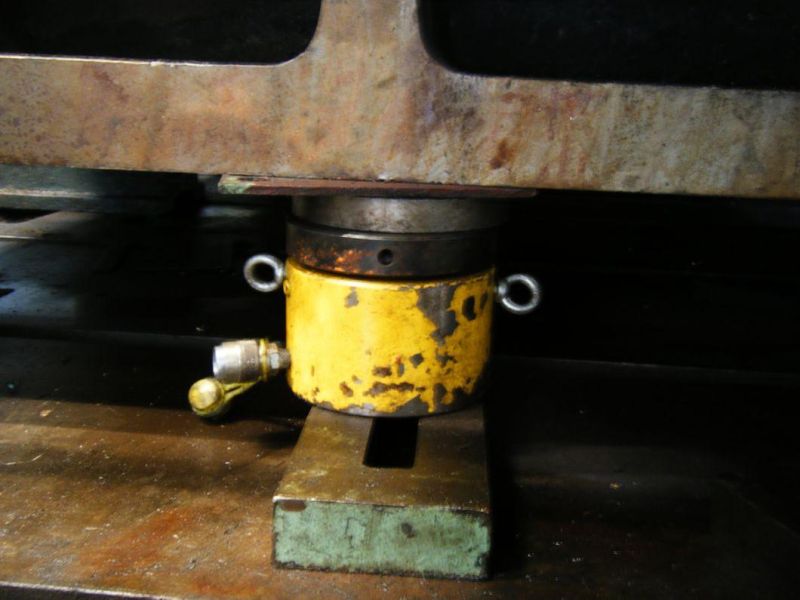

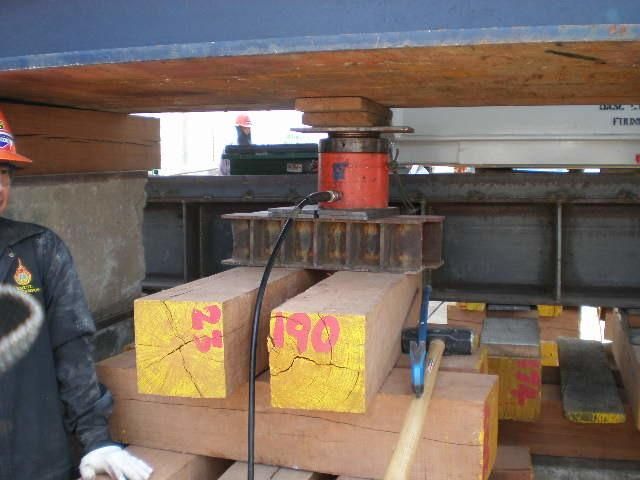

Application:

Pancake Lock Nut Cylinders ( long time lifting for repairing massive equipment )

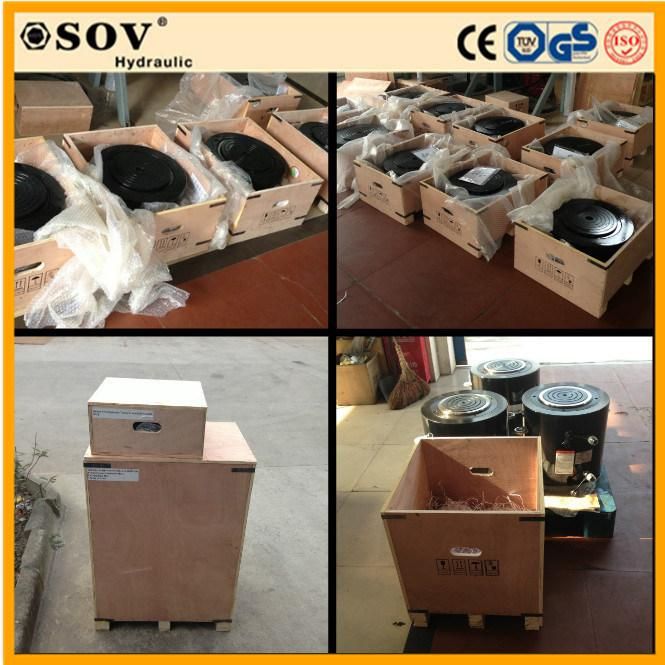

Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port


Our service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company information
SOV Hydraulic Technology(Shanghai )Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

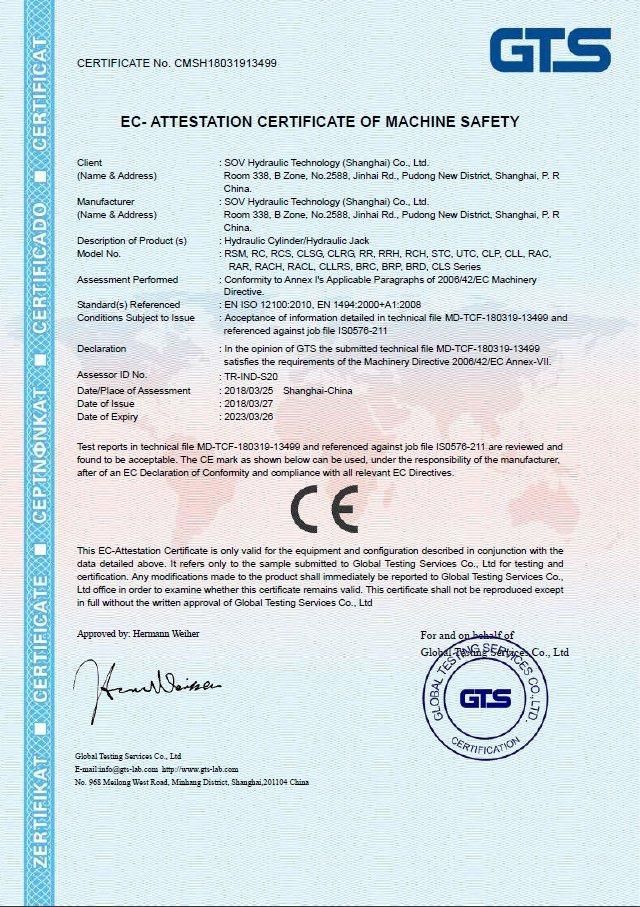

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.


Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions (4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


Competitive Advantages
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.

WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.

Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.

Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
