• Model NO.：ZLP250 ZLP500 ZLP630 ZLP800 ZLP1000
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Safety Lock：Ls 30, 20-30kn.M
• Voltage：220-440V, 50-60Hz, 3phase
• Length of Platform：From 1m to 10m
• Max. Lifting Height：300 M
• Surface Treatment：Painted, Hot Galvanized
• Wire Rope Dia.：8.3,8.6,9.1,9.3,10.2mm
• Operate System：Electrical, Auto, Manual
• Usage：Electrical Work Gondola Equipment
• Matrial：Steel, Aluminum Alloy
• Rated Load(Kg)：200, 500, 630, 800, 1000
• Transport Package：Paper Box and Wooden Cases or as Your Requirements
• Specification：Steel, Aluminum Alloy
• Trademark：Steel, Aluminum Alloy
• Origin：China
• HS Code：8428909090
• Production Capacity：5000sets,Year

modelzlp500zlp630zlp800zlp1000appearancepainting/hot galvanizedfabrication materialsteel/aluminum alloyrated load500kg630kg800kg1000kglifting speed9-11m/min9-11m/min8-10m/min8-10m/minmotor power2x1.5kw2x1.5kw2x1.8kw2x2.2kwbrake torque16km16km16km16kmsteel rope angle adjusting range3°-8°3°-8°3°-8°3°-8°distance between two steel rope≤100mm≤100m≤100m≤100mcounter weight(optional)25kgx30pcs25kgx36pcs25kgx40pcs25kgx44pcsdiameter of steel rope8.3mm8.3mm9.1mm10.2mmmax lifting height(m)300m300m300m300mmotor rotation speed1420r/min1420r/min1420r/min1420r/minvoltage(3phases)(optional)220v/380v/415v/440v    50hz/60hz to be OEM

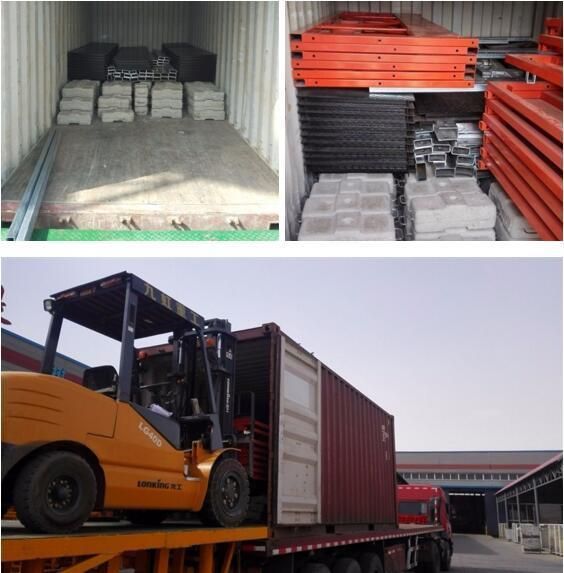

packageplatformcounter weighthoist & safety lockcontrol panel & other smallpartsfilmpalletwooden casecarton box

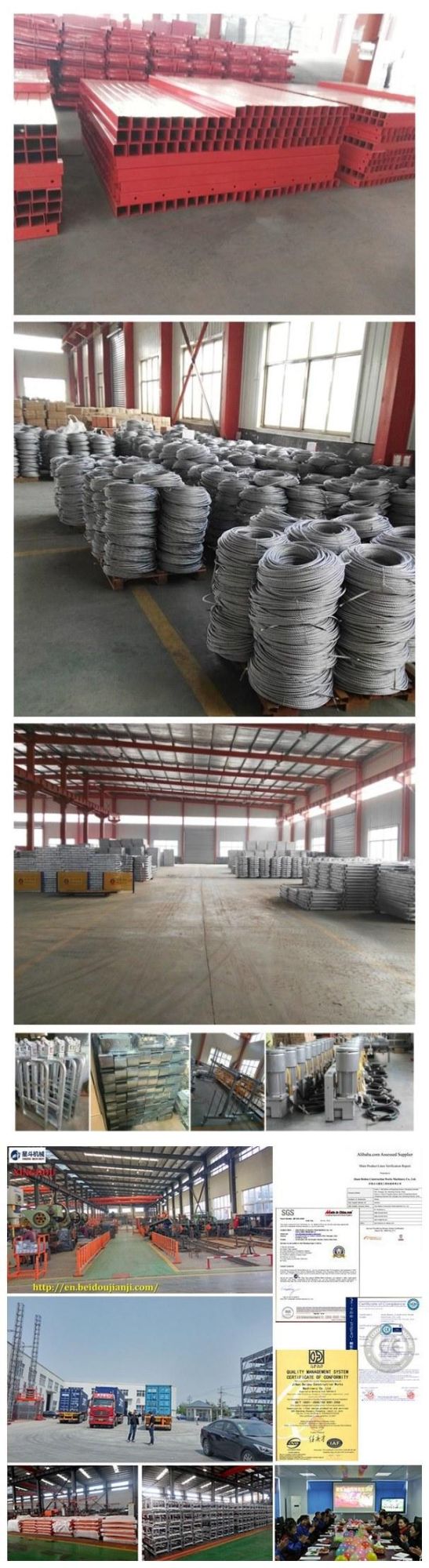

Our Company
The suspended construction cradle can be customized according to customers'requirements(drawing, specifications and so on).




After-sale services

1.Quality Assurance:    Good quality is assured by advanced manufacturing technology.and all products will be checked by our quality-control manager.

2.Excellent Package:    We provide standard,strong,protective package for our products to prevent is from outer damage.

3.Quickly Response:    Detailed information,specific model and price of price of products will be provided quickly after receiving your inquiry.

Welcome to visit our factory!
Any questions,Please feel free to contact me!
