• Model NO.：TBL
• Feature：360 degrees rotating
• Certification：CE
• Name：Towable Articulating Boom Lift
• Lifting height：14m
• Load capacity：150kg
• Dimension：9500*1950*2200mm
• Power：2.2kw
• Rotating：360 degree
• Legs：4 full-automatic hydraulic outriggers
• Material：structural steel
• System：Hydraulic
• Horizontal Span：7.5m
• Transport Package：Plywood Package
• Specification：9500*1950*2200mm
• Trademark：Moral
• Origin：China
• HS Code：842890
• Production Capacity：20sets,Month

Basic Info.

Model NO. TBL Feature 360 degrees rotating Certification CE Name Towable Articulating Boom Lift Lifting height 14m Load capacity 150kg Dimension 9500*1950*2200mm Power 2.2kw Rotating 360 degree Legs 4 full-automatic hydraulic outriggers Material structural steel System Hydraulic Horizontal Span 7.5m Transport Package Plywood Package Specification 9500*1950*2200mm Trademark Moral Origin China HS Code 842890 Production Capacity 20sets/Month

Product Description

                                   ★★Hydraulic Towed Telescopic Aerial Platform★★
★Main features:
1.Platform
Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2..Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive
It can be diesel or storage battery according to customer's requirements.
4.Material
Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder:
Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,
6.Aloft work platform
Equipped with balanced valve, automatic pressure maintaining ,etc.
7. Advantages
The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.
★Specification:
1. Compact, narrow design is easy to maneuver in congested work areas
2. Big Horizontal working reach
3. Automatic leveling system and tilt alarm
4. Easily towed behind a pickup or SUV
5. Safe, easy to operate
6. 359˚non-continuous turntable rotation
7. Articulating boom
8. Multiple job site application, indoors and outdoors
9. High and low operation panel
10. Hydraulic outriggers and outrigger interlocks
11. Made of high strength steel, famous china brand
12. All pipelines put inside the machine, to aviod tangled sun and rain or other objects
★ Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction  and other large range homework place.
★Technical data:

Type	Lifting height(m)	Load(kg)	Horizontal Span(m)	Platform size(L*W)mm	Dimension(L*W*H) mm	Power (kw)	Weight (kg)
TBL-8	8	150	3.5	1300*700	5460*1950*1800	1.5	1500
TBL-10	10	150	4.5	1300*700	6460*1950*1800	2.2	1700
TBL-12	12	150	6.5	1300*700	8200*1950*2000	2.2	2000
TBL-14	14	150	7.5	1300*700	9500*1950*2200	2.2	3200

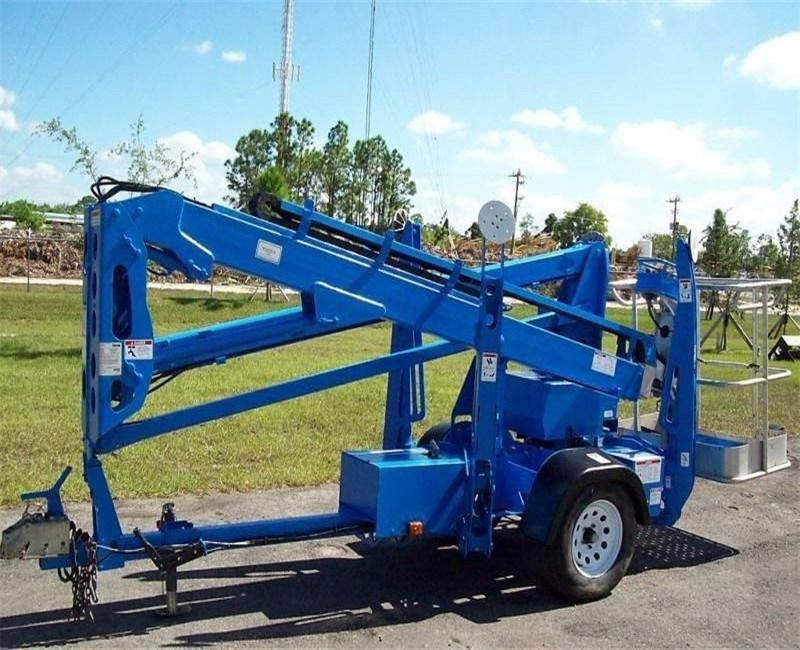

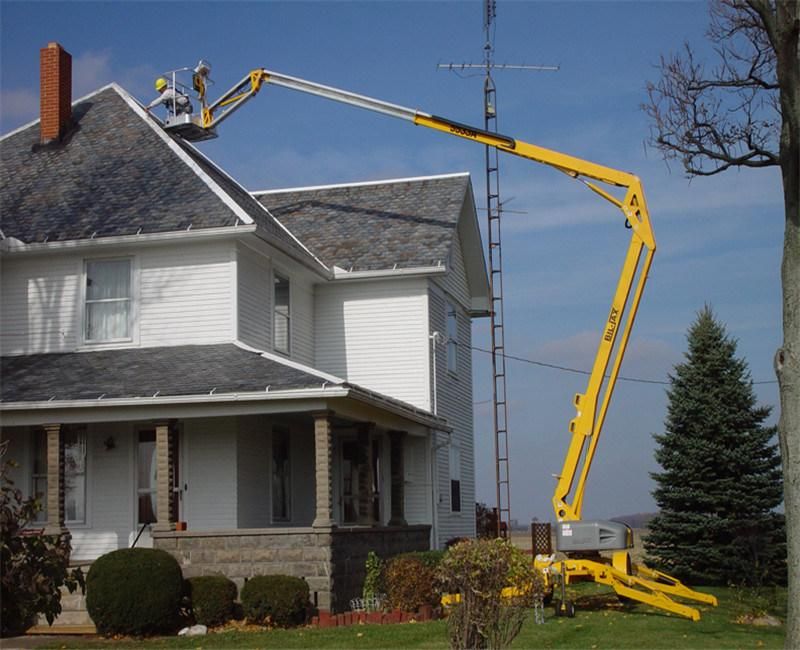

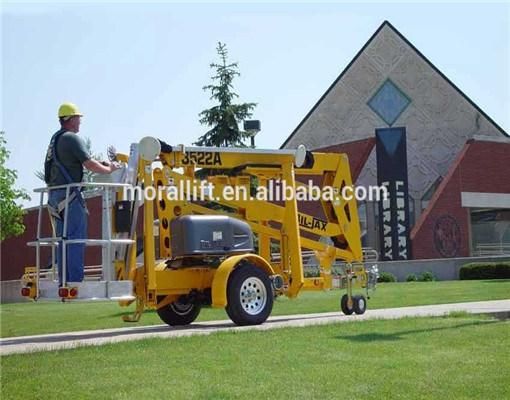

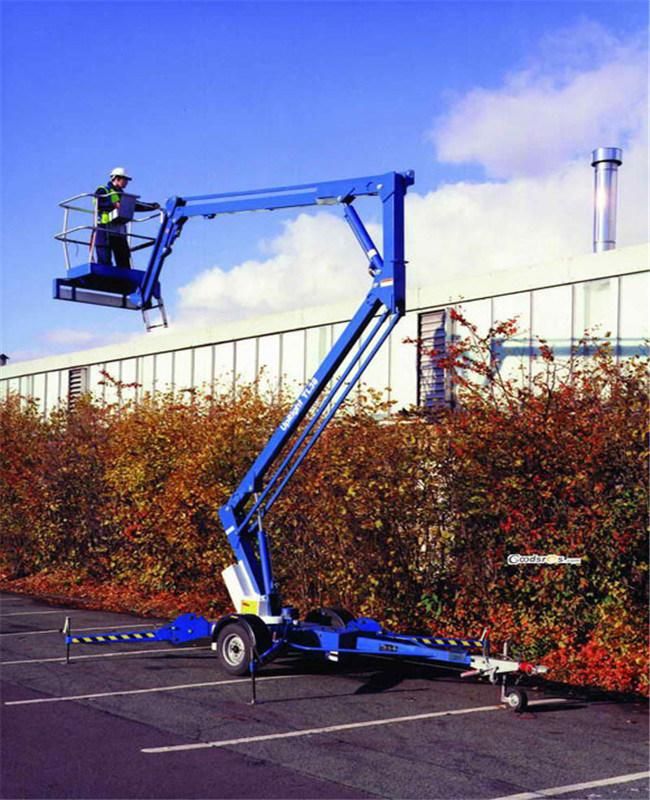

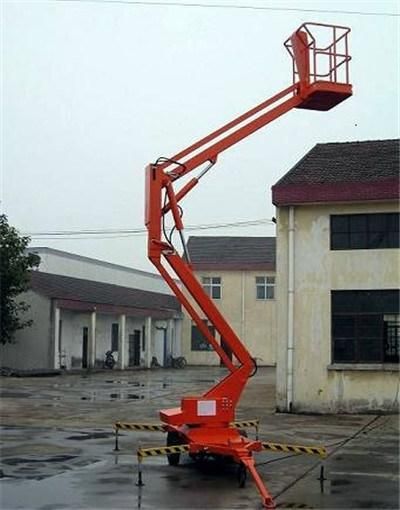

Detailed images:
