CE Approved Heavy Load Hydraulic Cargo Elevator Lift
Jinan Moral International Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：SJD
- Feature：Explosion-Proof
- Certification：CE
- Speed：100mm,S
- Color：Customized
- Material：Double T
- Loading Capacity：3000kg or Optional
- Lifting Height：3000mm or Optional
- Platform Size：1500*1500mm or Optional
- Power：3kw
- Safety：Wire Rope
- Control：Button,Remote Controls
- Transport Package：Standard Export Packing
- Specification：CE
- Trademark：Moral
- Origin：Jinan, Shangdong, China
- HS Code：842890
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. SJD Feature Explosion-Proof Certification CE Speed 100mm/S Color Customized Material Double T Loading Capacity 3000kg or Optional Lifting Height 3000mm or Optional Platform Size 1500*1500mm or Optional Power 3kw Safety Wire Rope Control Button/Remote Controls Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 500PCS/MonthProduct Description

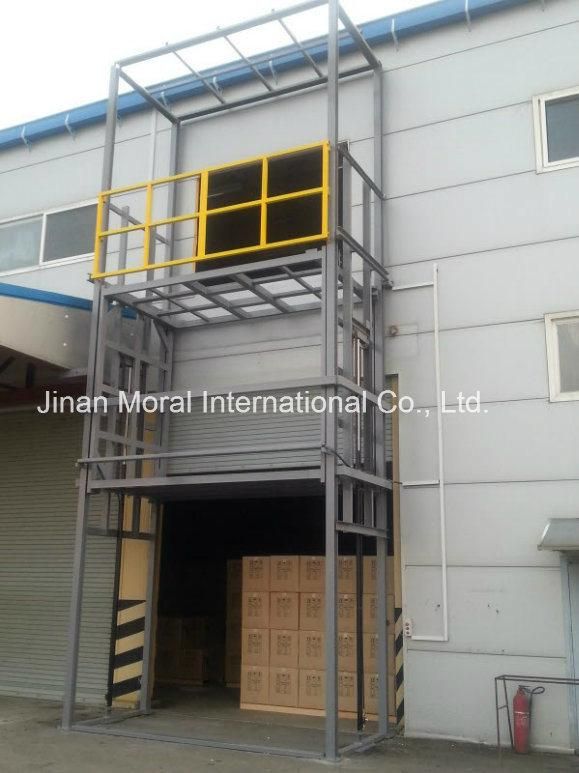

CE Approved Heavy Load Hydraulic Cargo Elevator LiftVertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.
This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.
1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.
| Model | SJD0.5-10 |
| Load capacity | 500--1000KG |
| Platform size | 1500*1200MM |
| Lifting height | 10000MM |
| speed | 100mm/s |
| power | 3kw |
| power supply | AC 220V/380V 50HZ/60HZ |
| weight | 800KG |
