• Model NO.：TS0.5-12
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Leg：Manual Supporting Legs
• Paint：Epoxy Paint
• Tyre：Four Solid Tyres
• Platform：Anti-Skid
• Power Source：AC, DC or Dual Power
• Color：Red
• Move：Trailing
• Transport Package：Stretch Film & Veneer Cases
• Specification：2560*1370*1660mm
• Trademark：MORN
• Origin：Shandong
• HS Code：842890
• Production Capacity：50,Month

Basic Info.

Model NO. TS0.5-12 Feature Explosion-Proof Certification CE, ISO 9001 Leg Manual Supporting Legs Paint Epoxy Paint Tyre Four Solid Tyres Platform Anti-Skid Power Source AC, DC or Dual Power Color Red Move Trailing Transport Package Stretch Film & Veneer Cases Specification 2560*1370*1660mm Trademark MORN Origin Shandong HS Code 842890 Production Capacity 50/Month

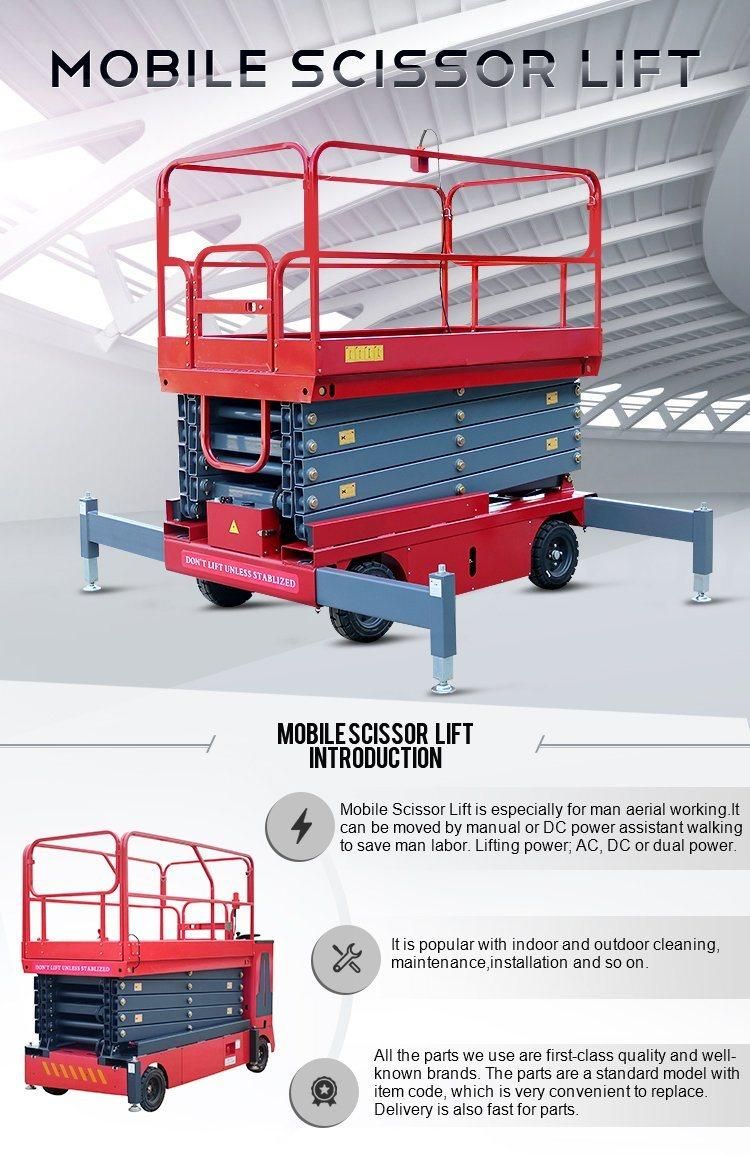

Product Description

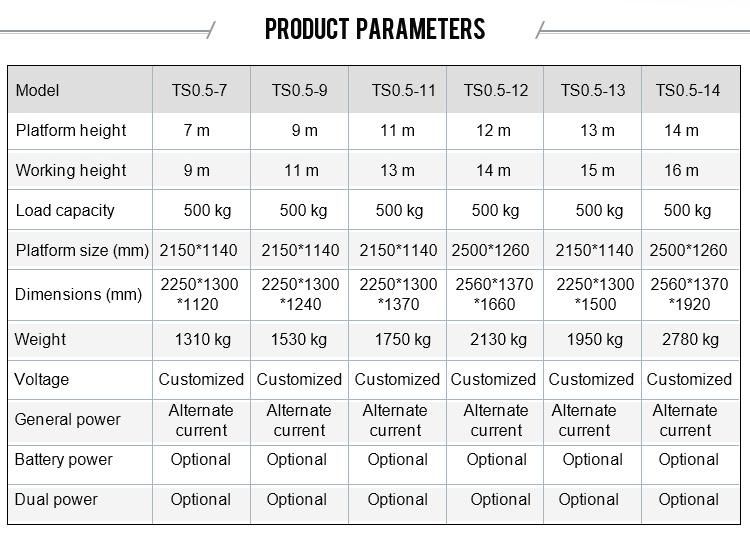

Model	TS0.5-7	TS0.5-9	TS0.5-11	TS0.5-12	TS0.5-13	TS0.5-14
Platform height	7 m	9 m	11 m	12 m	13 m	14 m
Working height	9 m	11 m	13 m	14 m	15 m	16 m
Load capacity	500 kg	500 kg	500 kg	500 kg	500 kg	500 kg
Platform size	2150*1140 mm	2150*1140 mm	2150*1140 mm	2500*1260 mm	2150*1140 mm	2500*1260 mm
Dimensions (mm)	2250*1300*1120	2250*1300*1240	2250*1300*1370	2560*1370*1660	2250*1300*1500	2560*1370*1920
Weight	1310 kg	1530 kg	1750 kg	2130 kg	1950 kg	2780 kg
Voltage	Customized	Customized	Customized	Customized	Customized	Customized
General power	Alternate current	Alternate current	Alternate current	Alternate current	Alternate current	Alternate current
Battery power	Optional	Optional	Optional	Optional	Optional	Optional
Dual power	Optional	Optional	Optional	Optional	Optional	Optional
Units for 20 GP	4 units	4 units	4 units	1 units	1 units	1 units
Units for 40GP	8 units	8 units	8 units	4 units	4 units	3 units
