• Model NO.：CD
• Maximum Lifting Height：>20m
• Chain Falls：1
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Customized Color
• Useage：Materials Lifting
• Lift Capacity：0.5-5tons(on Request)
• Lift Height：10m,20m, 30m(on Request)
• Transport Package：Plywood Box+Water Proof Membrane
• Specification：Customized type
• Trademark：Mingdao
• Origin：China
• HS Code：8425110000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. CD Maximum Lifting Height >20m Chain Falls 1 Certification CE, ISO9001:2000 Condition New Color Customized Color Useage Materials Lifting Lift Capacity 0.5-5tons(on Request) Lift Height 10m,20m, 30m(on Request) Transport Package Plywood Box+Water Proof Membrane Specification Customized type Trademark Mingdao Origin China HS Code 8425110000 Production Capacity 5000 Sets/Year

Product Description

Brief Introduction:
CD or MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes.
All the above has made the electric hoists common in industrial and ore enterprises, railway, wharf and warehouses.
CD or MD model monorail wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure,light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied,it will have long life and high mechanical efficiency.
CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.

This Low Headroom Hoist is specially designed for those who has low vertical space in their workshop or warehouse.
Unlike the normal electric hoist, the trolley running motor is paralell to  the lift device.


Application places:
1.Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2.Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3.It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

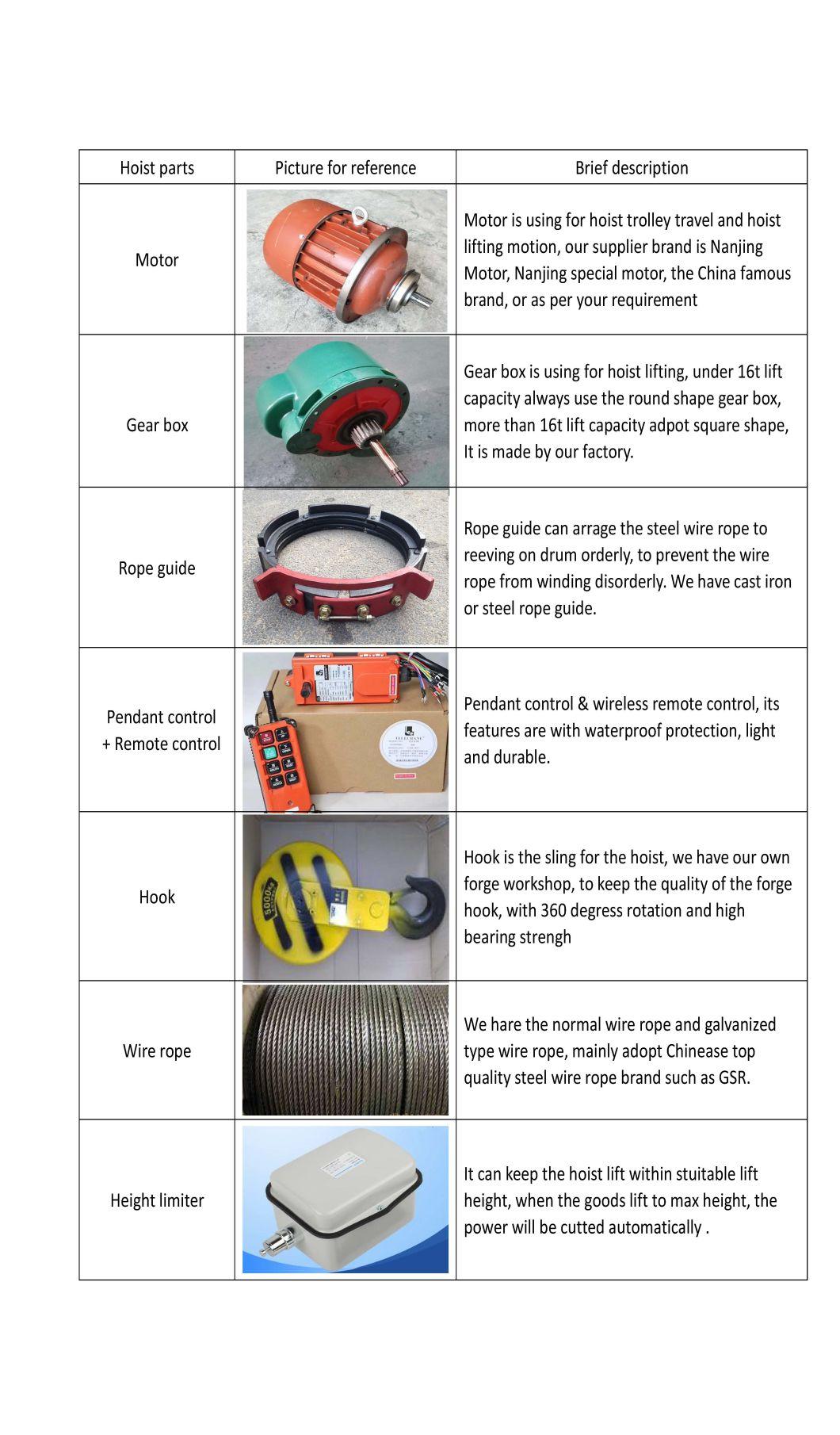

High configuration
Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake
motor, in order to adapt to the frequent direct start in the intermittent work.

Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long
life and high mechanical efficiency.

Main electric parts: adopts top quality and famous brand: Siemens brand.

Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported
on ball or roller bearings, to ensure smooth, low-friction operation.

Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may
not uncoil even when the Hoist is in unloaded condition.

Hook: The hook is closed type with high safety; it wrought with special high quality steel.

Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central
part of hoist.

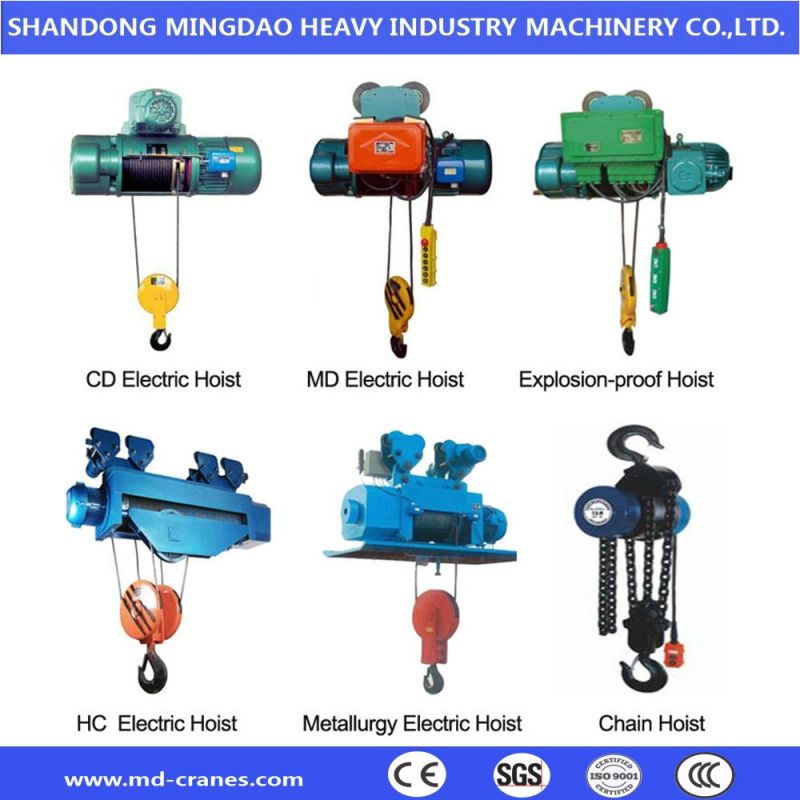

We have a variety of electric hoists:
