• Model NO.：SCQ-200
• Structure：Rack-Pinion Jack
• Capacity (Load)：21-30T
• Power Source：Lever
• Max Height：>400mm
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Rated Jacking Force：200kn
• Rated Hook Lifting Force：78kn
• Lifting Lift：More Than 270mm
• ROM The Road Efficiency：127mm , Second
• The Initial Height：50mm
• Weight：25kg
• Certificate：Ce & ISO9001
• Maximum Top Capacity：5-20t
• Top Height：345-680mm
• Lift Height：160-350mm
• Transport Package：Container
• Specification：SGS, ISO, CE
• Origin：Shandong China
• HS Code：7214100000
• Production Capacity：2000PCS,Month

Basic Info.

Model NO. SCQ-200 Structure Rack-Pinion Jack Capacity (Load) 21-30T Power Source Lever Max Height >400mm Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Rated Jacking Force 200kn Rated Hook Lifting Force 78kn Lifting Lift More Than 270mm ROM The Road Efficiency 127mm / Second The Initial Height 50mm Weight 25kg Certificate Ce & ISO9001 Maximum Top Capacity 5-20t Top Height 345-680mm Lift Height 160-350mm Transport Package Container Specification SGS, ISO, CE Origin Shandong China HS Code 7214100000 Production Capacity 2000PCS/Month

Product Description



Introduction Of Double Lever Sockets Railway Lifting Jack 5/10/15t Mechanical Jack

By GB/T19001-2000 idt ISO9001: 2000 quality management system certification


Specifications
1. Rack and pawls: 20CrMnTi alloy steel,
2. Other part: Superior cast steel
3. Rack and pawls: 20CrMnTi alloy steel


1, The using scope

SCQ-200 type track lifting jack, suitable for the construction of railway track panel lift, bridge or other heavy objects; Also applies to the mining industry, transport, ports and other transport companies, installation, adjustment of equipment and lifting, handling a variety of take up a heavy tool.
The machine structure is simple, lifting reliable, simple operation, repair and maintenance convenience. Crane lift big upgrade (lifting) speed, high efficiency from the road. zmwm02
Second, the main technical parameters
1, Rated jacking force: 200kN
2, rated hook lifting force: 78kN
3, lifting lift: ≥ 270mm
4, from the road efficiency: 127mm / second

5, the initial height: 50mm
6, the lever (crowbar) Length (user-owned): 1.5m
7, the maximum operating at full load lifting force: 1920N
8 Dimensions: (L × W × H) 420 × 165 × 522mm
9, Weight: ≤ 25kg

Rail jack
1. Certificate: CE & ISO9001
2. Maximum top capacity: 5-20T
3. Lift Height: 160-350mm
4. Top height: 345-680mm

Parameter Of Double Lever Sockets Railway Lifting Jack 5/10/15t Mechanical Jack



Max.   lifting  capacity	size	Max. hooking  capacity	lift  height  (mm	Top  height  (mm)	Hook  lifting  height	weight	FOB  PRICE  qingdao
5 T	191*130*384	2.5t	160mm	345mm	43mm	17kg
10T	230*154*418	5t	180mm	410mm	45mm	24kg
15t	260*135*590	7.5t	280mm	580mm	60mm	37kg	91.6  USD
20T	280*140*630	10t	350mm	680mm	75mm	43kg

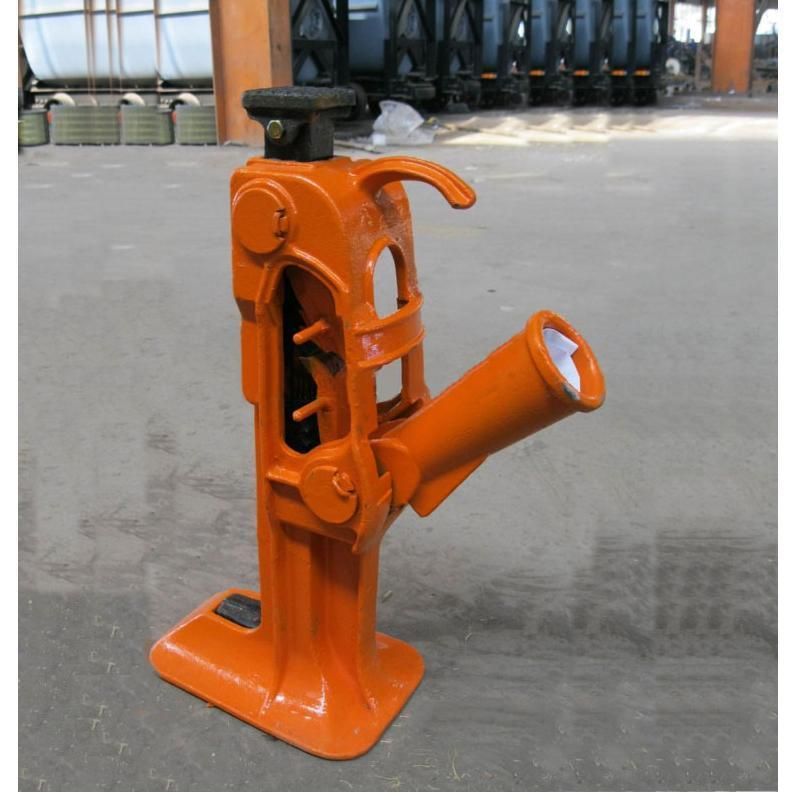

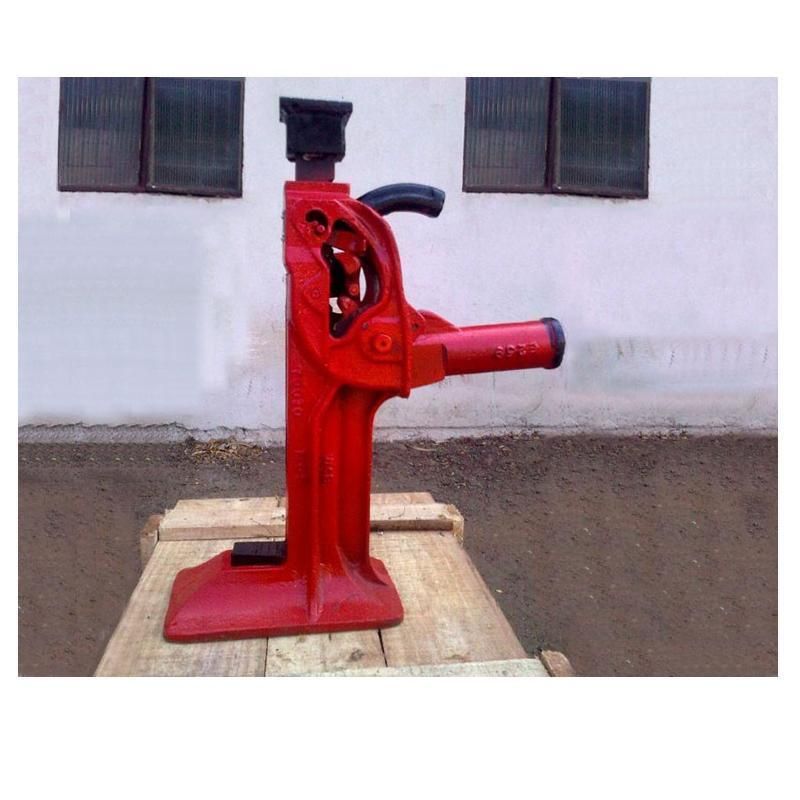

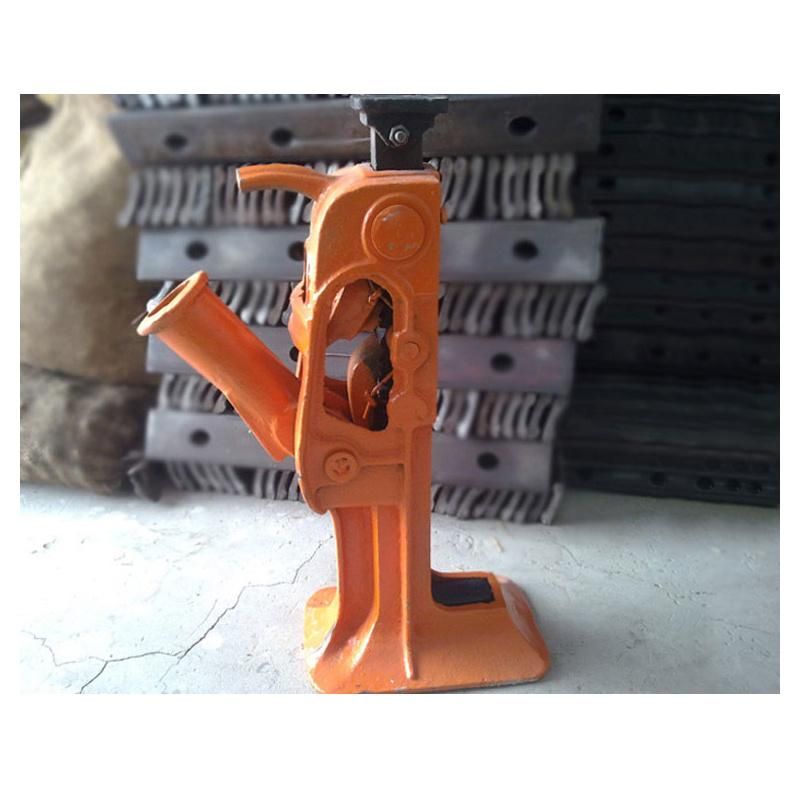

Photos Of Double Lever Sockets Railway Lifting Jack 5/10/15t Mechanical Jack
