Heavy Duty Cargo Lift Dock Lift with Scissor Design

Jinan Moral International Co., Ltd.
  • Application：Workshop Crane, Warehouse Crane, Building Crane, Factory, Residence
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：SJG
  • Feature：Explosion-Proof
  • Certification：CE
  • Drive System：Hydraulic
  • Material：High Strength Steel
  • Lifting Speed：80-100mm,s
  • Control Method：Remote,Button Control
  • Load Capacity：5000kg,Customized
  • Lifting Height：5400mm,Customized
  • Platform Size：4000*2000mm,Customized
  • Design：Scissor
  • Usage：Factory,Warehouse,Residence etc
  • Colour：Pls tell us
  • Transport Package：Standard Plywood Packaging
  • Specification：8 CBM, 6000KG gross weight
  • Trademark：MORAL
  • Origin：Jinan, Shandong, China
  • HS Code：842890
  • Production Capacity：1500sets, Year

Description

Basic Info.

Model NO. SJG Feature Explosion-Proof Certification CE Drive System Hydraulic Material High Strength Steel Lifting Speed 80-100mm/s Control Method Remote/Button Control Load Capacity 5000kg/Customized Lifting Height 5400mm/Customized Platform Size 4000*2000mm/Customized Design Scissor Usage Factory/Warehouse/Residence etc Colour Pls tell us Transport Package Standard Plywood Packaging Specification 8 CBM, 6000KG gross weight Trademark MORAL Origin Jinan, Shandong, China HS Code 842890 Production Capacity 1500sets/ Year

Product Description

Heavy Duty Cargo Lift Dock Lift with Scissor Design


Main feature
1. The stationary scissor lift platform is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.
2. It is characterized by great loading capacity.
3. Hydraulic lift system steady ascending and descending.
4. Electric or manual drive.
5. The scissor lift is heavy-carrying.
6. Lift tables are suitable for factory, institutions, shopping, garages, warehouse and other industries.

Heavy Duty Cargo Lift Dock Lift with Scissor Design

Parameter
TypeMix height (mm)Rises height (mm)Raise weight (kg)Platform size (mm)Power (KW)Weight (KG)
SJG4.5-3.5760350045004000*20005.54500
SJG2-4.8700480020003600*20005.53800
SJG5-5.4950540050005000*16007.56000
SJG3-7.2860720030005500*3000118870
SJG0.5-585050005002000*10002.21200
SJG1-3.3840330010001900*150031300
SJG1-4.3860430010002500*25001.52500
SJG1-61230600010002200*15002.22500
SJG2-3.51000350020002200*15002.21800
SJG2-4.51070450020001600*160042500
SJG2-6.81400680020002550*220043300

Specification
1)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden  drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety.
2) the handrail to guarantee safety .
3) equipped with 4 guide rails to ensure safety and steady.
4) the limit switch system ensure lifts stop at accurate position.
5) overload protection facility is equipped on, the lift will not work when goods is overloaded.
6) Electric control system adopt elevator system from Japan Mitsubishi ensure safety.
7) guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

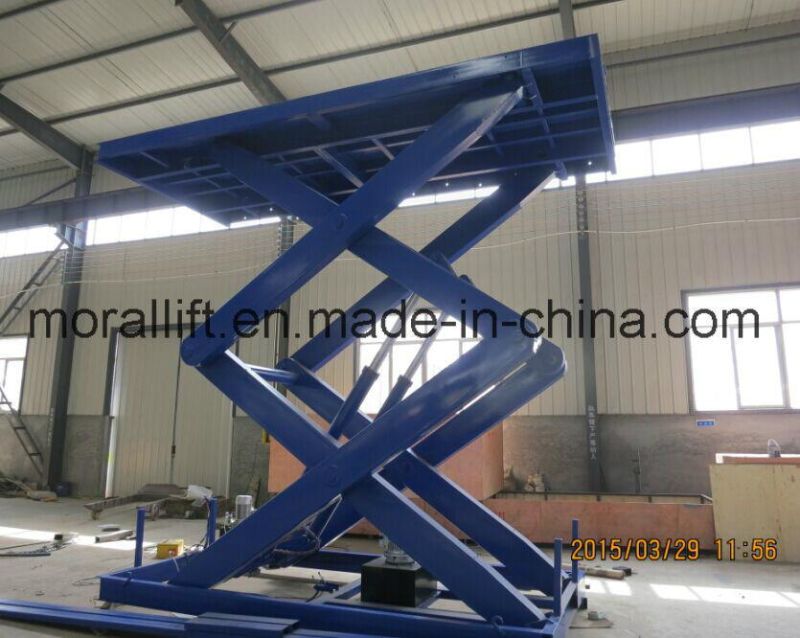

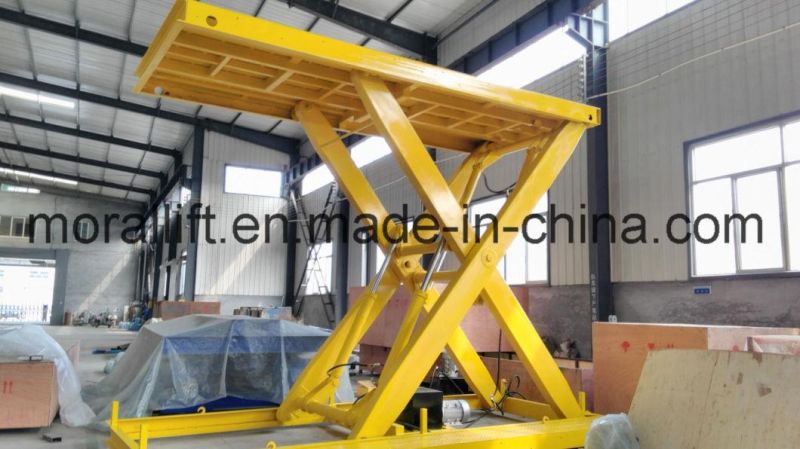

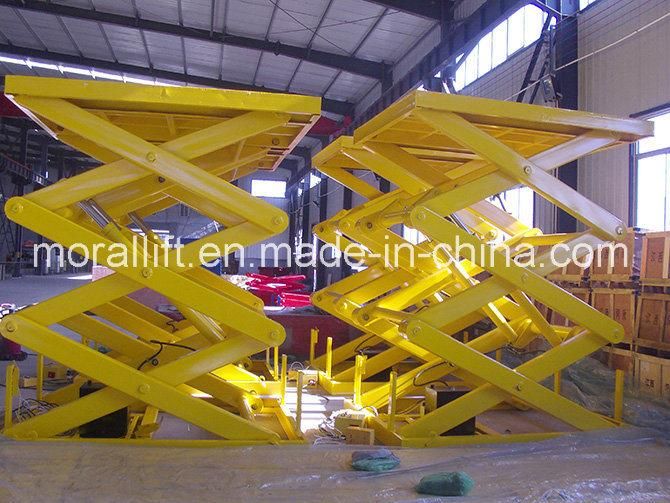

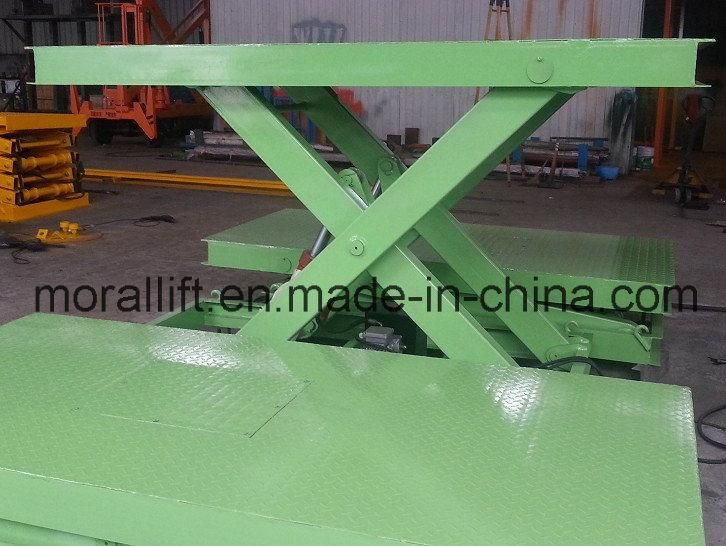

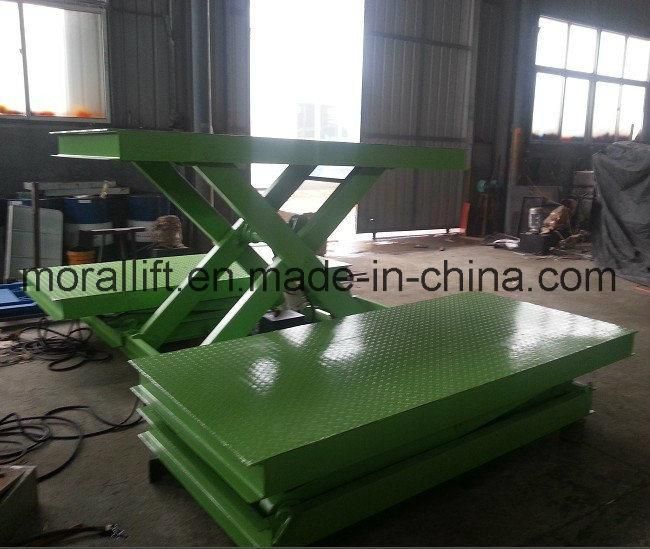

Product show
Heavy Duty Cargo Lift Dock Lift with Scissor Design
Heavy Duty Cargo Lift Dock Lift with Scissor Design
Heavy Duty Cargo Lift Dock Lift with Scissor Design
Heavy Duty Cargo Lift Dock Lift with Scissor Design

After sales
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

FAQ
1. MOQ?-1 set
2. Delivery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted

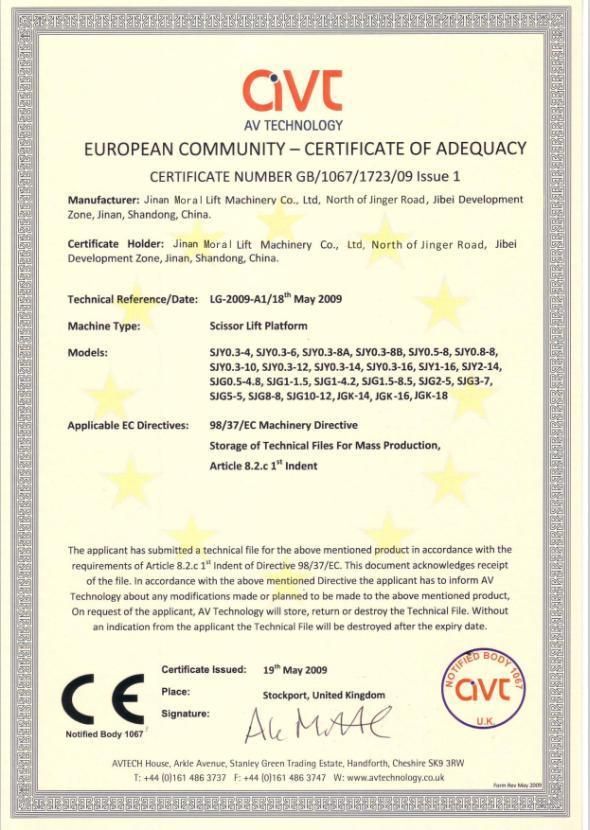

Certification
Heavy Duty Cargo Lift Dock Lift with Scissor Design
