• Model NO.：SOV-CLP series
• Certification：CE, ISO 9001:2008
• Condition：New
• Capacity：60 - 520 Ton
• Stroke：45 - 50 mm
• Closed Height：125 -195 mm
• Cylinder O.D：140 - 400 mm
• Oil Capacity：432 - 3287 mm
• Working Pressure：700bar
• Weight：15 - 189 Kgs
• Certificate：CE&ISO
• OEM：Yes
• Transport Package：Standard Export Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8425421000
• Production Capacity：800PCS,Month

Basic Info.

Model NO. SOV-CLP series Certification CE, ISO 9001:2008 Condition New Capacity 60 - 520 Ton Stroke 45 - 50 mm Closed Height 125 -195 mm Cylinder O.D 140 - 400 mm Oil Capacity 432 - 3287 mm Working Pressure 700bar Weight 15 - 189 Kgs Certificate CE&ISO OEM Yes Transport Package Standard Export Wooden Case Specification CE, ISO Trademark SOV Origin China HS Code 8425421000 Production Capacity 800PCS/Month

Product Description

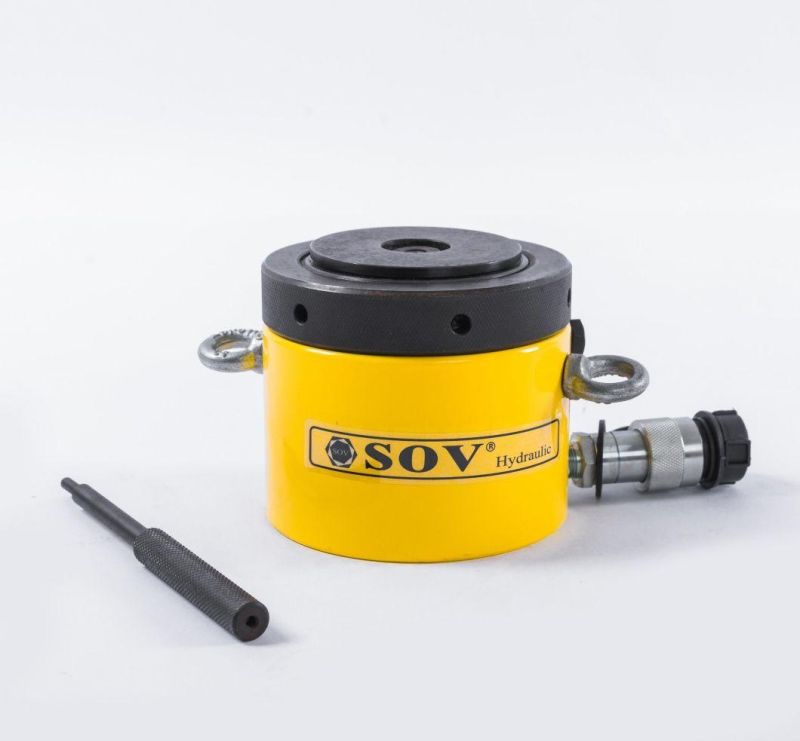

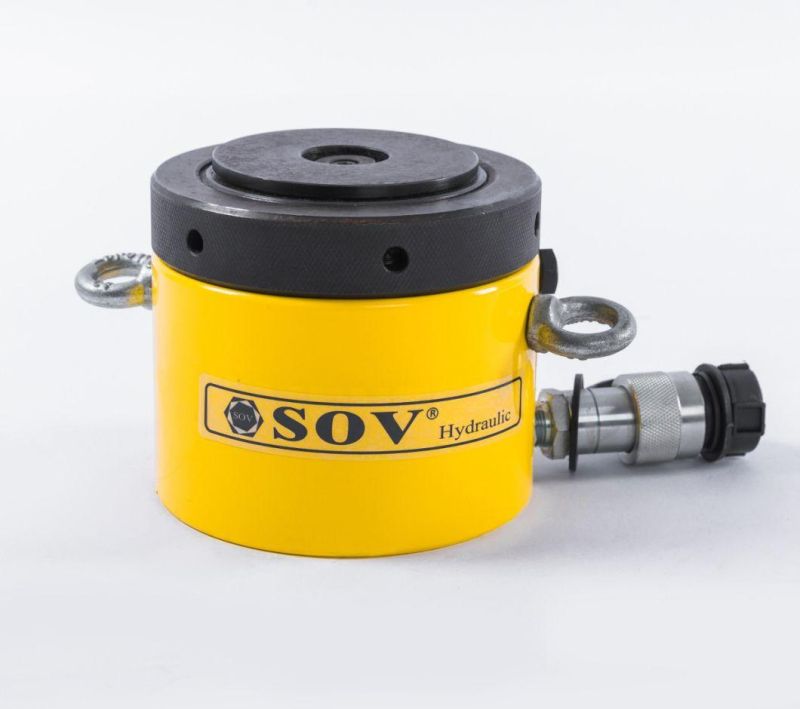

                                                        Widely Used Safety Lock Nut Hydraulic Cylinder
Feature

1.SOV pancake lock nut cylinders have a flat design for use in confined areas
2.Safety lock nut for mechanical load holding
3.Single-acting load return
4.Special bearing design resists sideload forces
5.Overflow port functions as a stroke limiter
6.CR-400 coupler and dust cap included on all models

Accessories Available (extra charge) :
1. Saddles and Gauges

2. Hoses (extra charge)
High quality hydraulic hoses to ensure the integrity of your system, refer to our hydraulic hose.

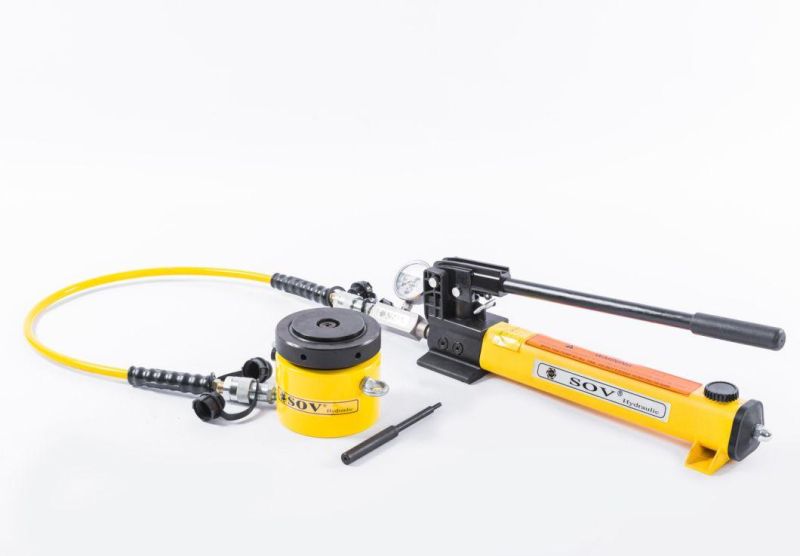

3. Manual hydraulic pumps (extra charge)
Single acting cylinder pump is the quickest and easiest way to start working right away
Optimum match of individual components
4. All sets are ready-for-use

Parameter

Model Number	Cylinder    Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-CLP-602	60 (606)	50	86,6	432	125	175	140	15
SOV-CLP-1002	100 (1027)	50	146,8	734	137	187	175	26
SOV-CLP-1602	160 (1619)	45	231,3	1040	148	193	220	44
SOV-CLP-2002	200 (1999)	45	285,6	1285	155	200	245	57
SOV-CLP-2502	260 (2567)	45	366,8	1650	159	204	275	74
SOV-CLP-4002	400 (3916)	45	559,5	2517	178	223	350	134
SOV-CLP-5002	520 (5114)	45	730,6	3287	192	237	400	189

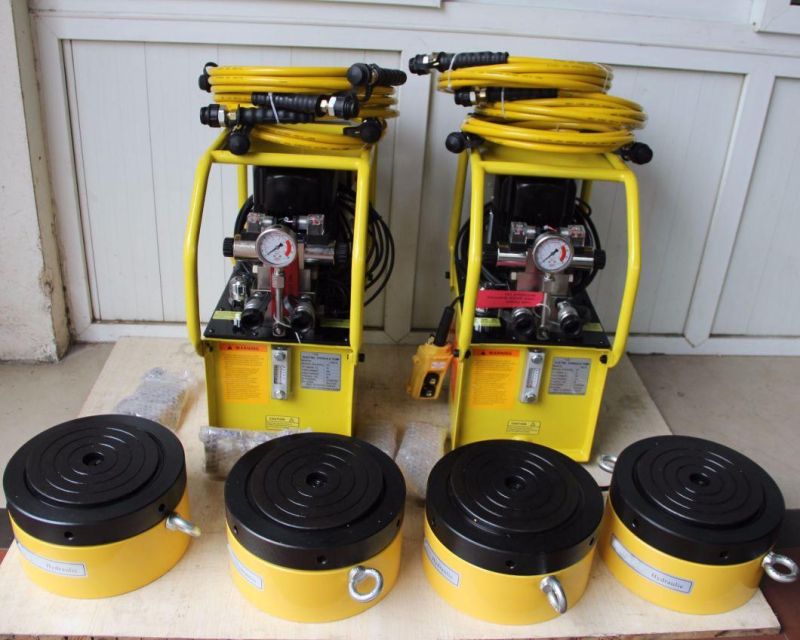

Photos

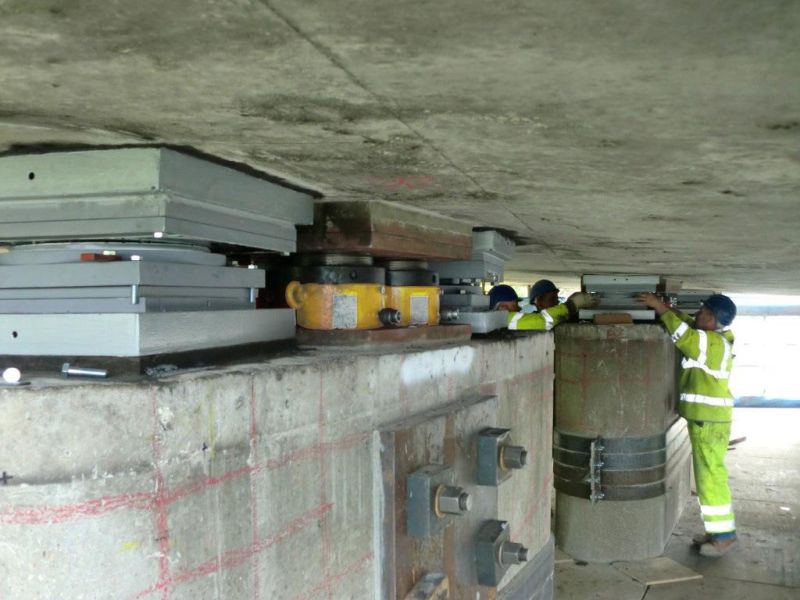

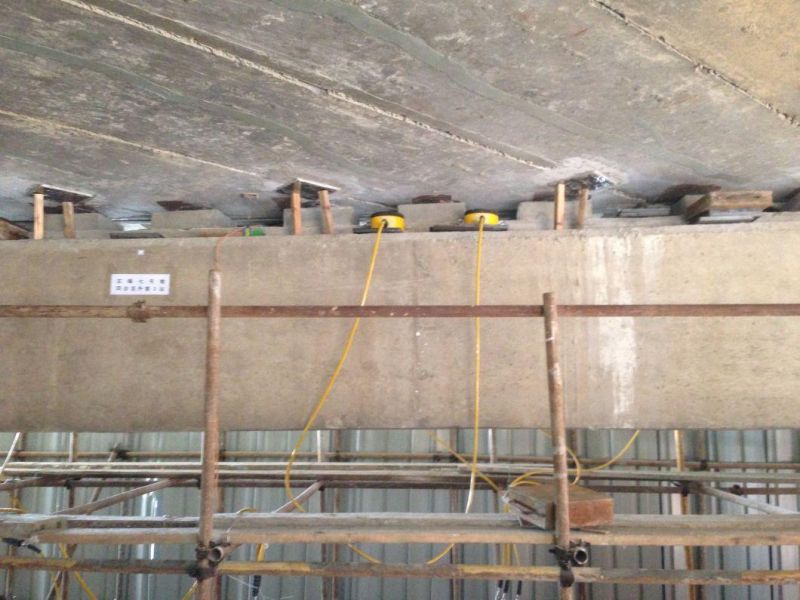

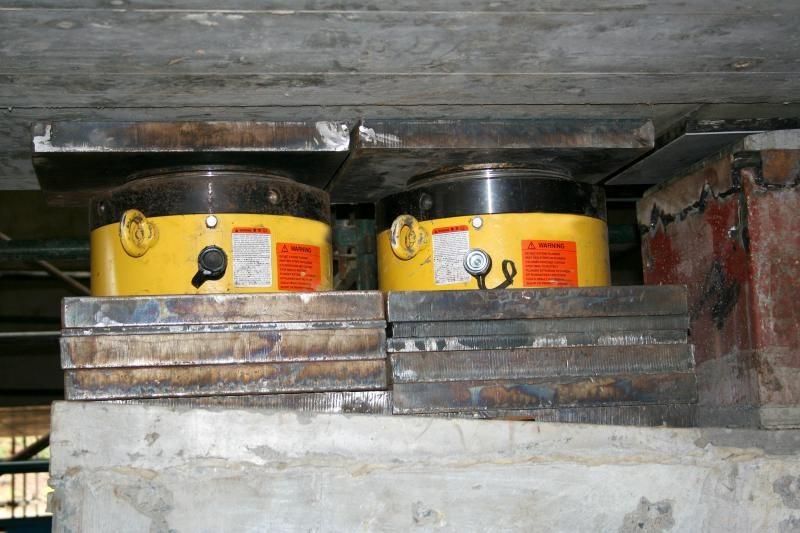

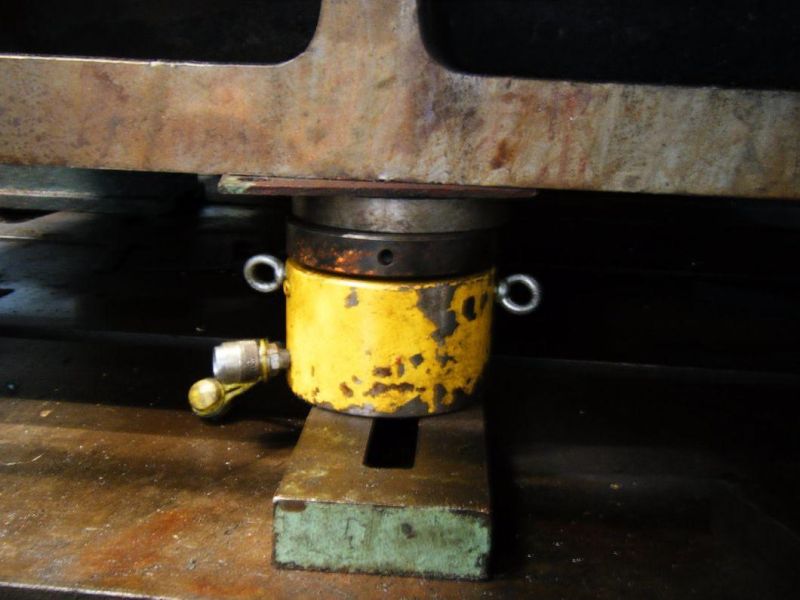

Applications







Packing details: Out packing: standard export wooden case


Delivery time
1. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock;
2. Delivery time: Prompt delivery;

Shipping way
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our service
1. 24hours online technical support (telephone and email)
2. 100% Satisfaction Guarantee
3. Engineers are available


Our company


Established in 1995, SOV hydraulic technology company is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, America, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

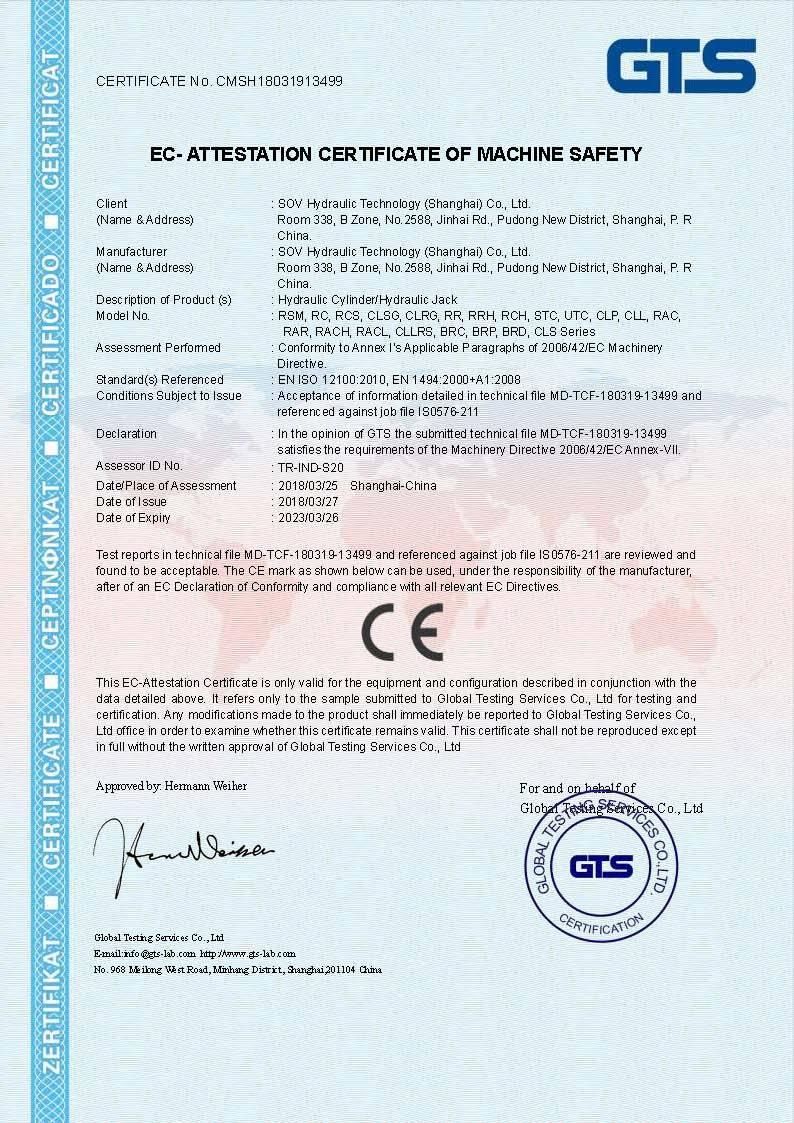

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have gained CE and ISO9001:2008 certificates.
Our Main Series Products:
1.Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut;
2.Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
3.Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
4.Hydraulic pumps, manual and electric type (max up to 4000bar);
5.Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
6.Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
