Stationary Electric Single Scissor Lift Table Hw1001
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：110V, 220V, 380V, 400V, Customized
- Color：Red, Yellow, Orange, Blue, Green, Customized
- Load Capacity：1000kg, 2000kg, 4000kg, Customized
- Lifting Height：1m, 1.3m, 1.4m, 1.5m, Customized
- Platform Size：Standard Models, Customized Models
- Safety Precautions 1：Aluminum Safety Sensor
- Safety Precautions 2：Explosion Proof Valve
- Safety Precautions 3：Spillover Valve
- Safety Precautions 4：Emergency Decline Valve
- Customization 1：with Rollers on Top
- Customization 2：with Protective Curtains
- Customization 3：with Wheels for Easy Moving
- Customization 4：with Guardrails
- Customization 5：Battery Operated Moving
- Customization 6：One Controller for Two Units Working Together
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description

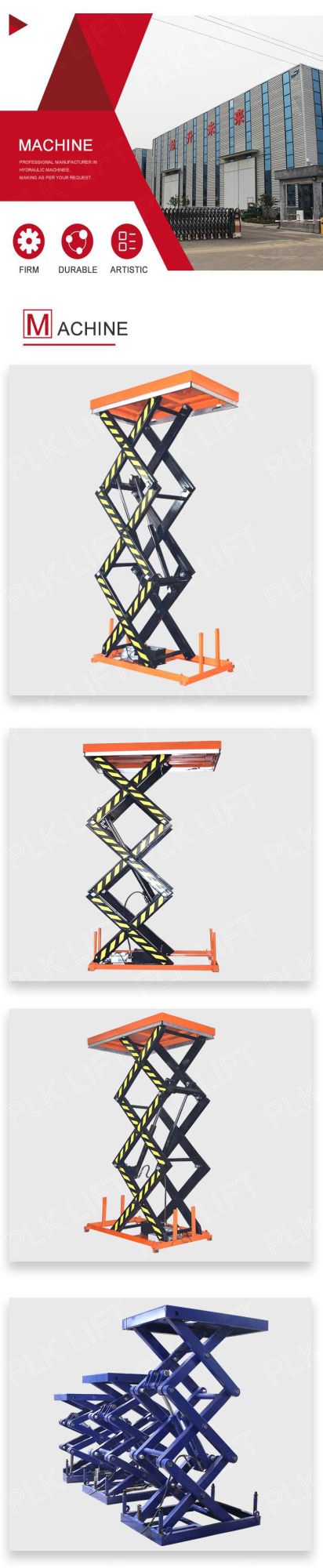

Multi scissor
1ph or 3ph210 HD2000 2000 350 1780 1300X850 35-45 295 HD4000 4000 400 2050 1700X1200 55-65 520 HT1000 1000 470 3000 1700x1000 35-45 450 HT2000 2000 560 3000 1700x1000 50-60 750 HF400 400 600 4140 1700x1000 30-40 800 HF800 800 706 4210 1700x1000 70-80 858
Features & Advantages:
Contact Information:
Ava (Sales manager)
Jinan PLK Machinery Co., Ltd
Add: No. 6, Huixin Road, Jiyang County, Shandong, China
URL: plklift.en.made-in-china.com
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
1ph or 3ph

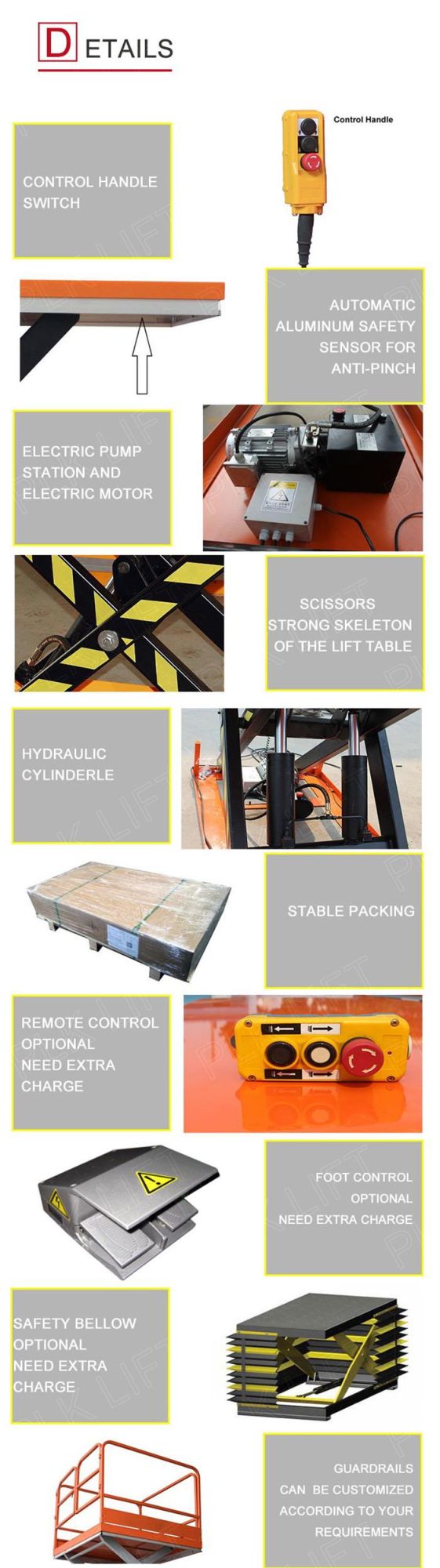

Features & Advantages:
- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
