• Model NO.：SJD
• Feature：Chain Protection
• Certification：CE
• Drive System：Hydraulic
• Material：Double-T steel
• Control Method：Remote,Button Control
• Lifting Speed：80-100mm,s
• Load Capacity：300kg,Customized
• Lifting Height：5000mm,Customized
• Platform Size：1000*1000mm,Customized
• Protector：Chain
• Usage：Factory, Warehouse, Shopping etc
• Warranty：12 Month
• Transport Package：Standard Export Package
• Specification：8CBM
• Trademark：MORAL
• Origin：Jinan, Shandong, China
• HS Code：842890
• Production Capacity：2000,Year

Basic Info.

Model NO. SJD Feature Chain Protection Certification CE Drive System Hydraulic Material Double-T steel Control Method Remote/Button Control Lifting Speed 80-100mm/s Load Capacity 300kg/Customized Lifting Height 5000mm/Customized Platform Size 1000*1000mm/Customized Protector Chain Usage Factory, Warehouse, Shopping etc Warranty 12 Month Transport Package Standard Export Package Specification 8CBM Trademark MORAL Origin Jinan, Shandong, China HS Code 842890 Production Capacity 2000/Year

Product Description

Industrial Warehouse Elevator for Goods Lifting

PRODUCT DESCRIPTION
Vertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is  about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.

This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications.The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.

We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. machine are available in capacities from 100kg. to 100,000kg.



MAIN FEATURE
1) Chain lifting platform features lifting the goods through the different floors.
2) Chain lifting platform-------hydraulic driven and lift by chain.
3) Special lifting chain and have long use life.
4) The close height is low so don't need pit installation.
5) Closed type structure, safe and easy to clean.
6) Steady up and down.

PARAMETERS

Model	SJD0.3-5
Load capacity	300kg/customized
Platform size	1000*1000mm/customized
Lifting height	5000mm/customized
speed	80-100mm/s
power	2.2kw
power supply	AC 220V/380V  50HZ/60HZ
weight	1200KG

Faster, Stronger, Sturdier Cargo Lifts...and Much More!

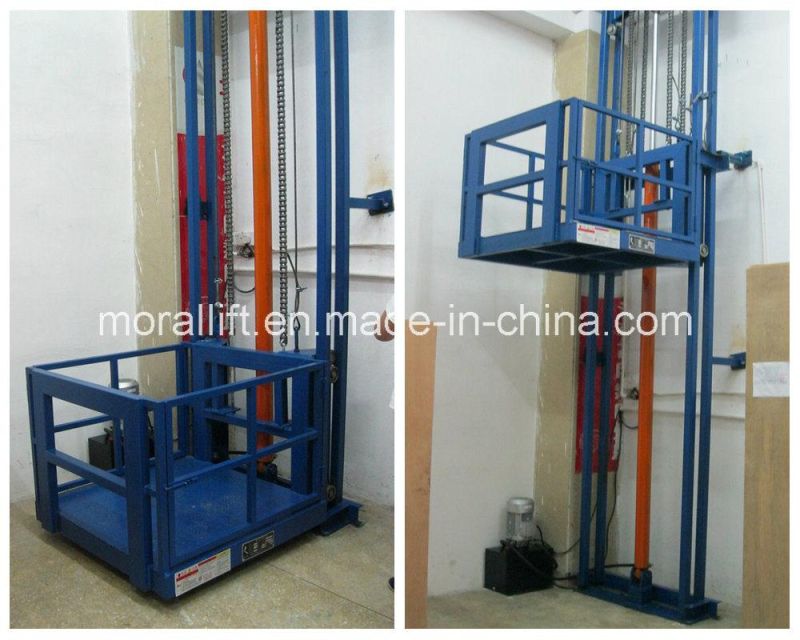

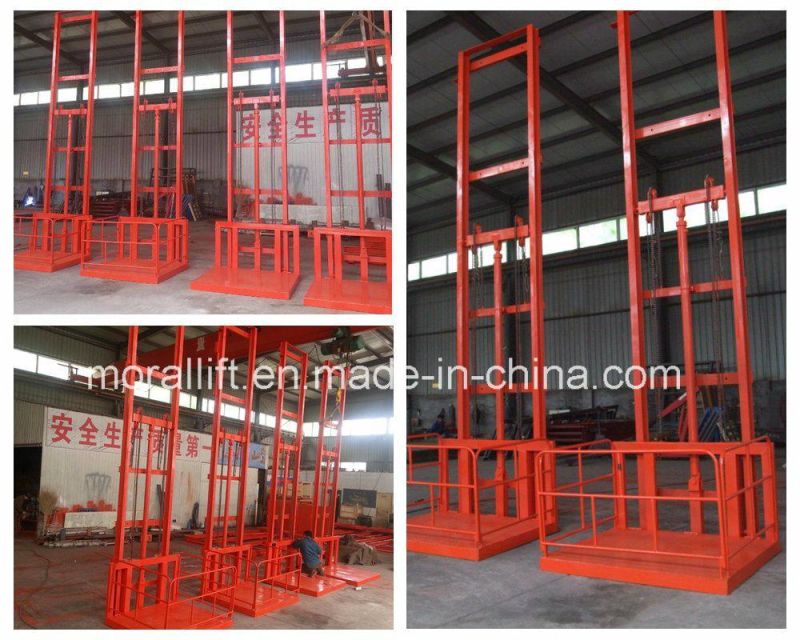

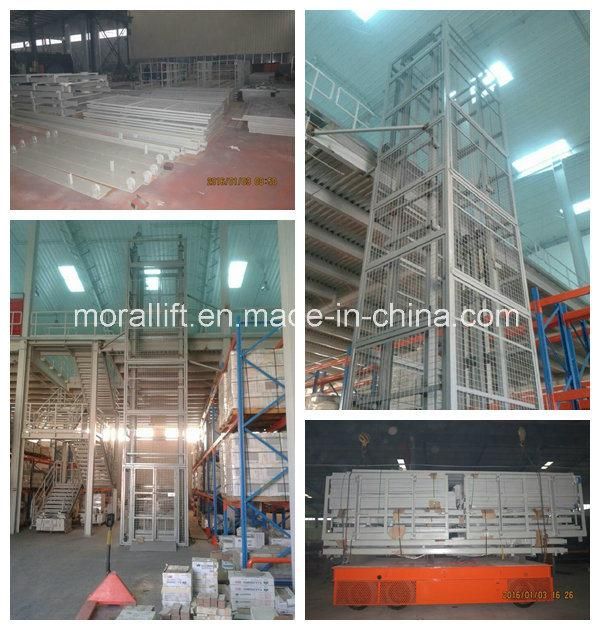

PRODUCT SHOW



 Perimeter defence system

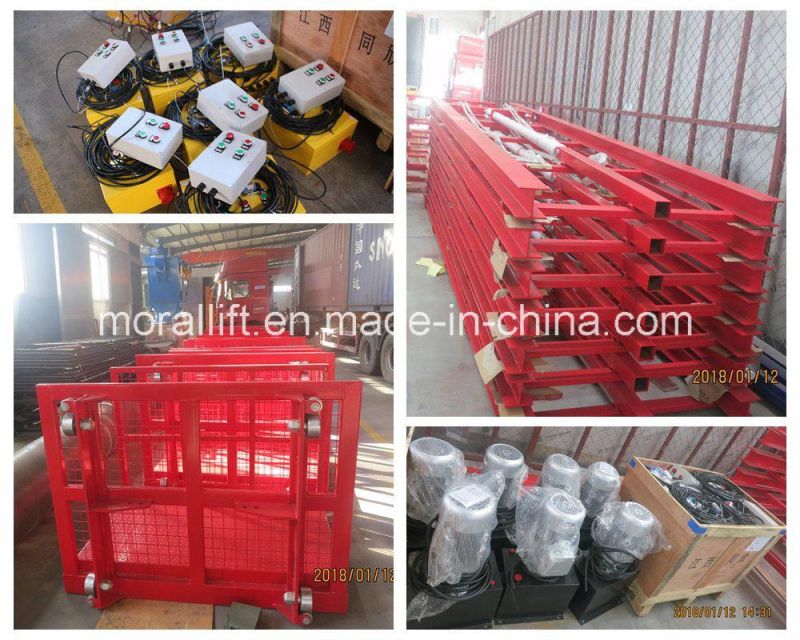

DETAILS



COMPANY INFO
Welcome to Moral Lift, we are a professional manufacturer of VERTICAL CARGO LIFT with high quality and low price. our promise: Quality First, Customer Above.

Why choose us??

1. Professional design drawing for the confirmation in case of any misunderstanding.

2. All products will be produced strictly according to CE quality management system.

3. Every lead rail lift must be tested before delivery,100% qualified.

4. Detailed rust-removing and powder painting process.

5. 5 years warranty for main structure and 1 year warranty for electrical parts.

Pls tell us parameters you need, load capacity, lifting height, platform size, we can customize for you accordingly.
