Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE

Shandong Lift Machinery Co., Ltd.
  • Warranty：24 Months
  • Application：Home Lift Elevator
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Stationary
  • Driven Type：Hydraulic

Base Info

  • Model NO.：SJGL0.25-3
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Control：Remote and Control Panel
  • Load Capacity：250kg - 500kg
  • Lift Height：1m - 12m
  • Safety Sensor：Available at The Bottom
  • Lift Speed：60mm,S
  • Elevator Type：Passenger Elevators
  • Transport Package：Iron Case or Wooden Package
  • Specification：CE
  • Trademark：SDLIFT or OEM
  • Origin：Shandong
  • HS Code：842890
  • Production Capacity：1200 PCS,Year.

Description

Safety Device Safety Interlock:Lock the platform when it is out of controlEmergency StopThe lift can be stopped immediately in case of any emergencyEmergency LoweringThe platform can be lowered by manual down button in case of power failureSafety SensorThe lift will be stopped immediately if the safety edge meets obstacles when going down.Auto-flap rampTurn up to max 75°and prevent the wheelchair outside

Model List

Model

Lifting height

Load capacity

Platform size

Self weight

Glass Door

SJGL0.25-1

1000mm

250kg

1200*1000mm

550kg

Yes

SJGL0.25-2

2000mm

250kg

1200*1000mm

600kg

Yes

SJGL0.25-3

3000mm

250kg

1200*1000mm

650kg

Yes

SJGL0.25-4

4000mm

250kg

1200*1000mm

800kg

Yes

SJGL0.25-5

5000mm

250kg

1200*1000mm

900kg

Yes

SJGL0.25-6

6000MM

250kg

1200*1000mm

1100kg

Yes

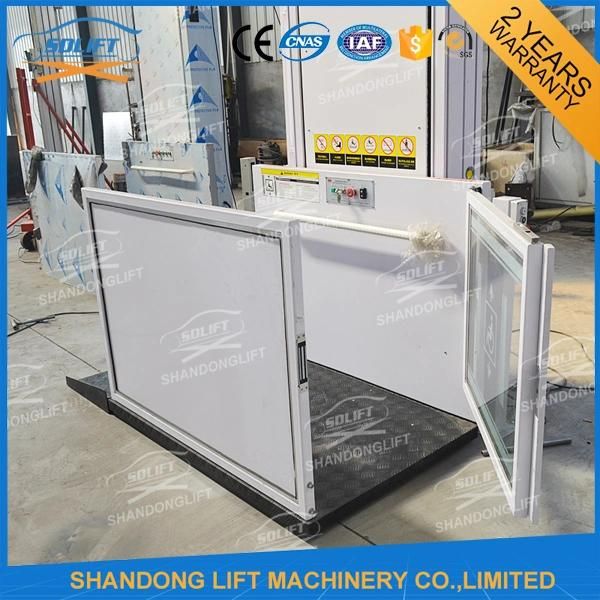

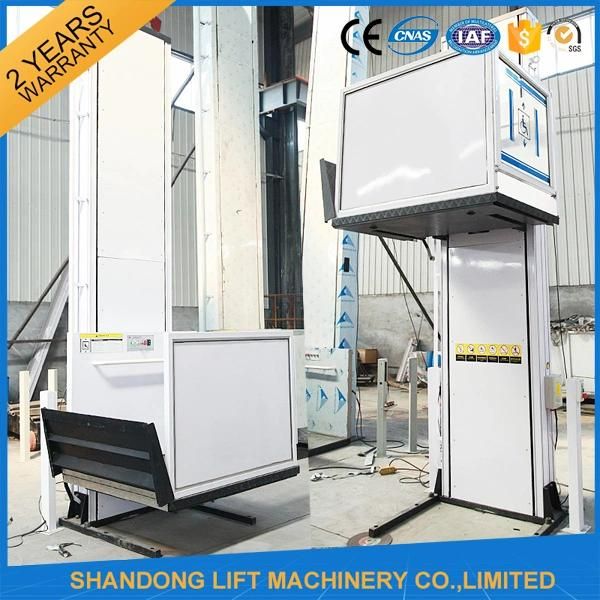

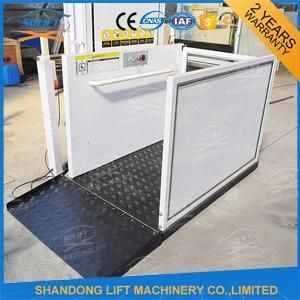

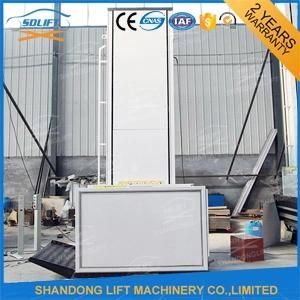

Detailed views:

Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE  Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE

Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE  Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE

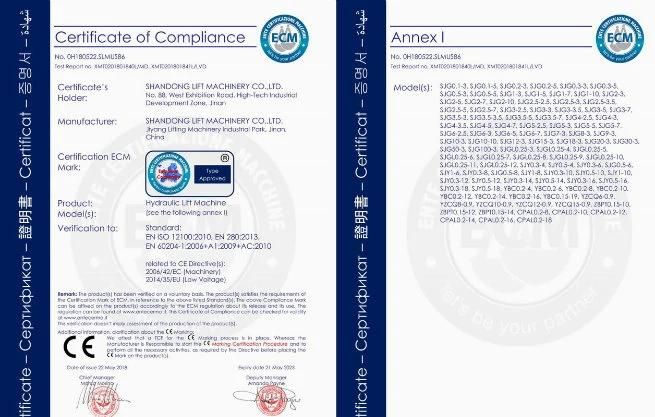

CE Certificate:

Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator with CE
 Our services:

1) We can design the Electric Hydraulic Wheelchair Lift Disabled Stair Lift Elevator as per your requirement.
2) The hydraulic wheelchair ift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
