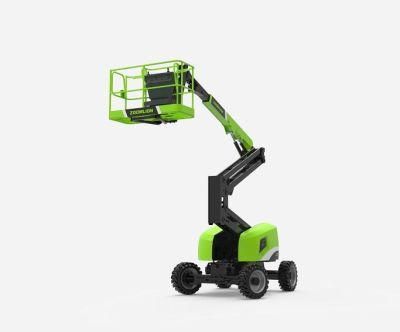

Zoomlion Aerial Platform 16m Articulated Boom Lifts (ZA14J)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Articulated Lift
  • Carrying Capacity：Special Weight Level
  • Moves：Moving

Base Info

  • Model NO.：ZA14J
  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Work Height：15.8m
  • Platform Height-Elevated：13.8m
  • Platform Length：1.83m
  • Platform Width：0.76m
  • Platform Capacity：300kg
  • Gross Weight：7100kg
  • Transport Package：Container,Roro,Bulk
  • Specification：6.57*2.3*2.27m
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：50units,Month

Description

Overview Product Description

Product Parameters



Comply with   CE/ANSI/GB StandardModel ZA14JSizeWork Height15.80mPlatform Height13.80mHorizontal Outreach7.70mUp and Over Height7.55mA - Stowed Length6.57mB - Stowed Width2.30mC - Stowed Height2.27mD - Platform   Length1.83mE - Platform   Width0.76mF - Wheelbase2.36mG - Ground   Clearance0.42mPerformancePlatform Capacity300kgDrive Speed6.8km/hGradeability45%   (24°)Axles Oscillation0.1mTurning Radius (Inside)2.06mTurning Radius (Outside)4.78mSwing355°Platform Rotation±90°H-Tail Swing0Max. Working Slope5°Max. Wind Speed12.5m/sPowerDiesel EngineDeutz D2.9L4Engine Power35.7kw/2600rpmFuel Tank Capacity65LAuxiliary Power12VControl Voltage12VHydraulic System Capacity150LHydraulic Tank Capacity76LTireType315/55 D20 Foam-filled TiresWeightGross7100kg Detailed Photos
