• Model NO.：VA
• Condition：New
• Color：Orange
• Handle Material：Steel
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Warranty：1 Year
• Delivery Time：10days
• Cover：Alloy
• Lever Hoist Color：to Order
• Rotation Angle：360
• Transport Package：Carton
• Specification：1T3M
• Trademark：HUGONG YIYING
• Origin：Shanghai
• HS Code：8425190000
• Production Capacity：20000set,Month

Basic Info.

Model NO. VA Condition New Color Orange Handle Material Steel Payment Term T/T, L/C Loading Port Shanghai Warranty 1 Year Delivery Time 10days Cover Alloy Lever Hoist Color to Order Rotation Angle 360 Transport Package Carton Specification 1T3M Trademark HUGONG YIYING Origin Shanghai HS Code 8425190000 Production Capacity 20000set/Month

Product Description

                             Lever Ratchet Chain Block Lever Hoist


Introdcution of VA Lever Hoist

Vital chain hoist which is made accroding to Japan Standared
1. Got certificate of CE and ISO9001.
2. Offer OEM or vital brand

Vital chain hoist which is made accroding to Japan Standared, Offer OEM or vital brand, Automatic double-pawl braking system

5)Gear: They are innovated symmetrical arrayed highspeed synchronous gears, and are made form international standard gear steel. Compared with common gears, they are more wearable and steadier, and more laborsaving.

6)Chain: Adopts high strength chain and high precision welding technology, meet ISO3077-1984 international standard; Fits for gusty overload work conditions; Takes your hands a better feeling; Multi-angle operation(with 45 degree).

7) Hook: Made of high-class alloy steel, it has high strength and high security; By using new design, weight will never escape.

8)Limit Switch: Using limit switch component in designation to protect chain and ensure security.

9)Components: Main components are all made of high-class alloy steel, with high precision and security. The static test is four times of capacity, and running test is one and a hlaf times of capatity one by one

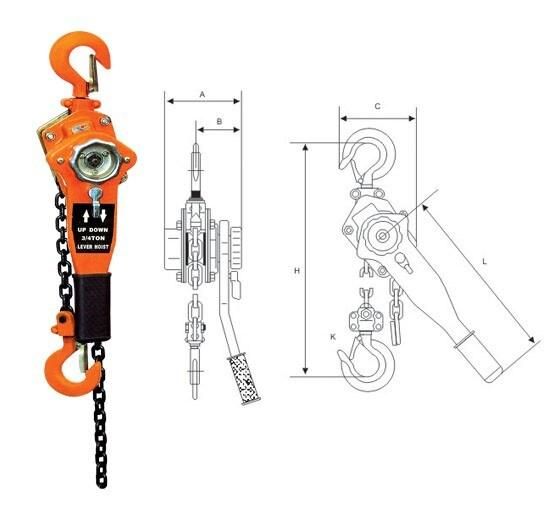

Parameters of VA Lever Hoist

Model	HS-VT	HS-VT1	HS-VT1	HS-VT2	HS-VT3	HS-VT5	HS-VT10
Capacity      t	0.5	1	1.5	2	3	5	10
Standard  lifting  height      m	2.5	2.5	2.5	3	3	3	3.5
Test  load      t	0.75	1.5	2.25	3	4.5	7.5	15
Min  distance  (hook  to  hook)    mm	285	315	340	380	475	600	700
Chain  pull  to  lift  full  load      N	25	33	34	34	35	39	41
No.   of  load  chain  fall  lines	1	1	1	1	2	2	4
Diameter  of  load  chain      mm	1.6	7.1	7.1	8	7.1	9	9
Net  weight      Kg	8.4	11	13.5	21	22	40	77
Gross  Weight      Kg	9.4	12	14.5	22	23	41.5	85
Packing  measurement   (L*W*H)      cm	30*17*32	30*17*32	30*17*32	28*19*23	30*17*32	40*20*34	62*50*26

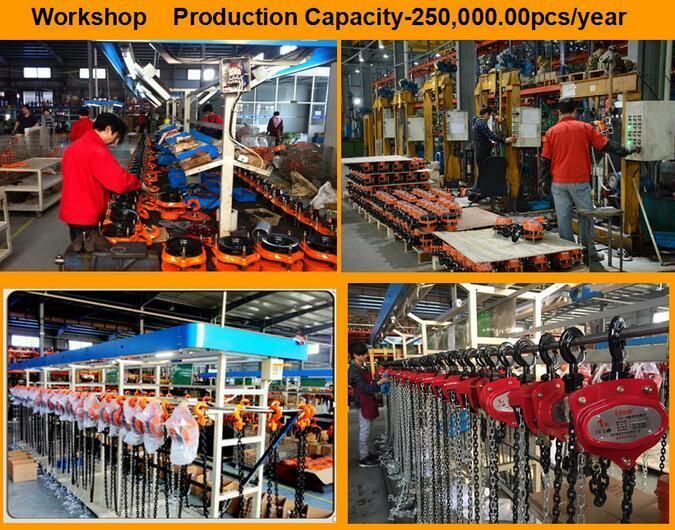

Factory View



Our Cetificate & Service
