• Model NO.：DN-880U-1150
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Electric and Hydraulic
• Certification：CE
• Platform：1140*720 , 1240*820mm
• Cetificate：Ce
• Loading：300kg
• Volt：12-24VDC
• Max Lifting Height：880mm
• Own Weight：140kg
• Packing Size：Wooden Case, 1.2*0.6*1.4m
• Operation：Fully Automatic
• Working Temperature：-20~+50
• Transport Package：Plywood Case
• Specification：140kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：842890909
• Production Capacity：100 PCS

Overview

Product Description

Product Advantages

Product Parameters

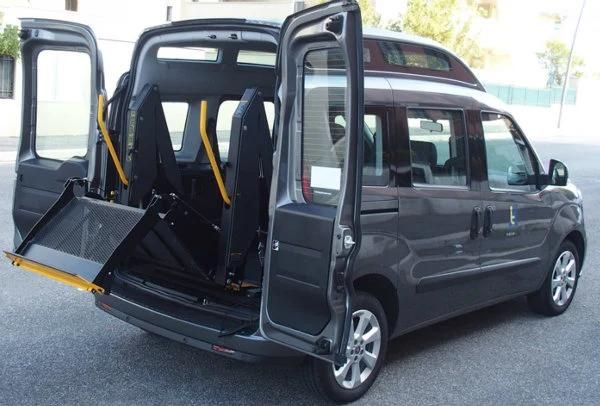

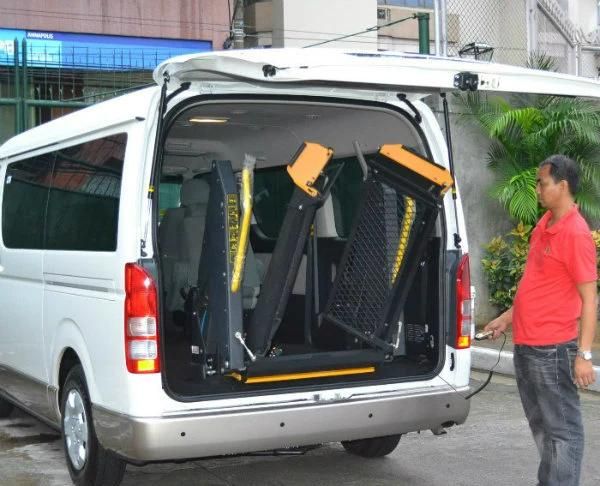

DN-880U Wheelchair LiftThis wheelchair lift is the lift with a unique "fold-in-half" platform. When the lift is stowed, it provides an unobstructed view for the driver, helping to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Plus, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required - even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy-to-maintain.

• Unobstructed view from within the vehicle
• Added safety benefit of minimized blind spots
• Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door
• Stable and compact when stowed

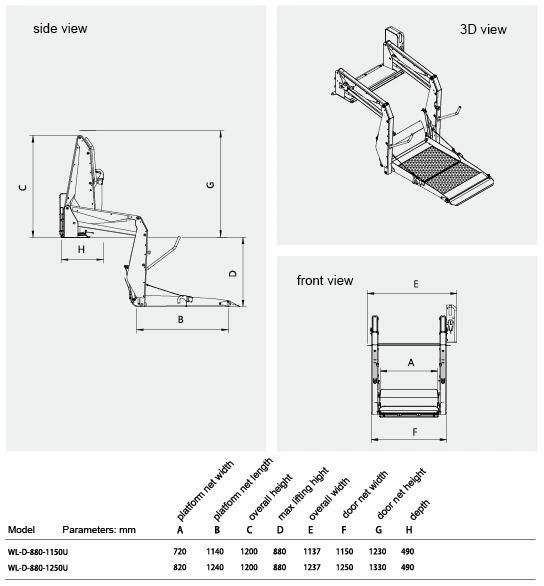

DIMENSIONS

Model	DN-880-1150	DN-880S-1150	DN-880U-1150	DN-880-1250	DN-880S-1250	DN-880U-1250
Platform size	1140*720	1150*720	1140*720	1240*820	1215*820	1240*820
overall width	1137	1137	1137	1237	1237	1237
overall height	1215	1235	1200	1315	1300	1200
overall depth	435	490	490	435	490	490
max lifting height	880	880	880	880	880	880
Volt	12-24V	12-24V	12-24V	12-24V	12-24V	12-24V
max working pressure	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa
loading capacity	350KG	350KG	350KG	350KG	350KG	350KG

We also have different type of platform
model DN-880S-1150 has split platform;
model DN-880-1150 has solid platform;

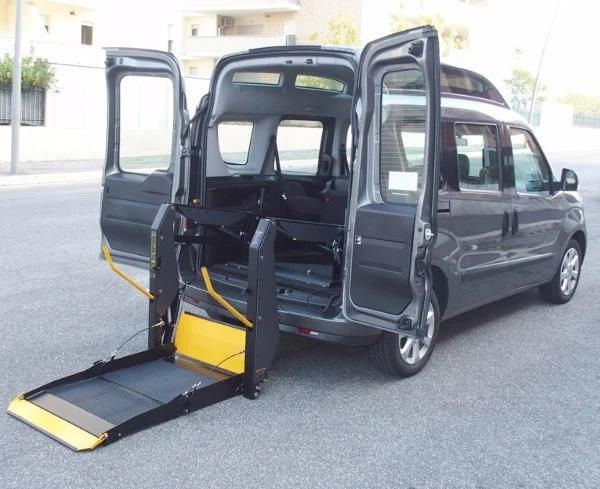

DN-880s wheelchair lift, with split platform;
This wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.

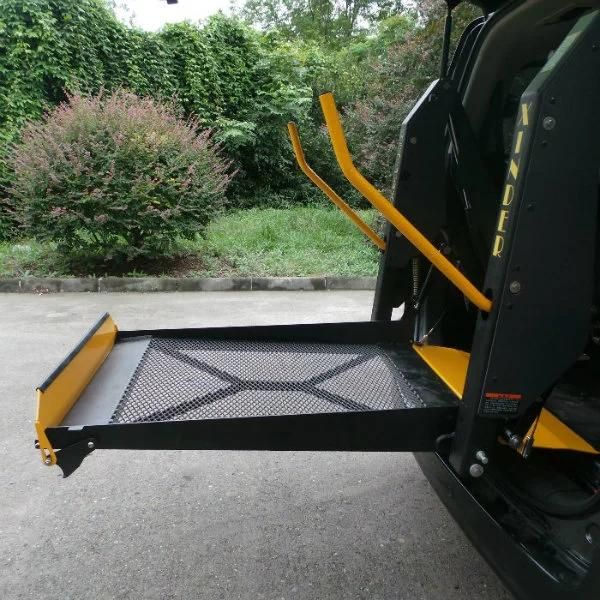

DN-880 wheelchair lift,with solid platform
The outomatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift aslo features a strong durable steel frame built to give you years of dependable service.
There are so many advantages of this product, such as automatic inboard and outboard rollstops, quietand smooth operation, welded all-steel frameare, built-in manual backup system, permanent no-lube bearings at all major pivot points, easy to maintain and so on.
