• Model NO.：Single Arm Davit or A type
• Rope Capacity of The Reel：30m
• Max.Hoisting Load：30kn,15kn
• Transport Package：Deyuan Marine Standard Export Packing
• Specification：ccs
• Trademark：DEYUAN MARINE
• Origin：China
• HS Code：8464109000
• Production Capacity：100sets Per Month

Basic Info.

Model NO. Single Arm Davit or A type Rope Capacity of The Reel 30m Max.Hoisting Load 30kn/15kn Transport Package Deyuan Marine Standard Export Packing Specification ccs Trademark DEYUAN MARINE Origin China HS Code 8464109000 Production Capacity 100sets Per Month

Product Description

Single Arm Davit for Solas Fast Rescue Boat 6 Persons

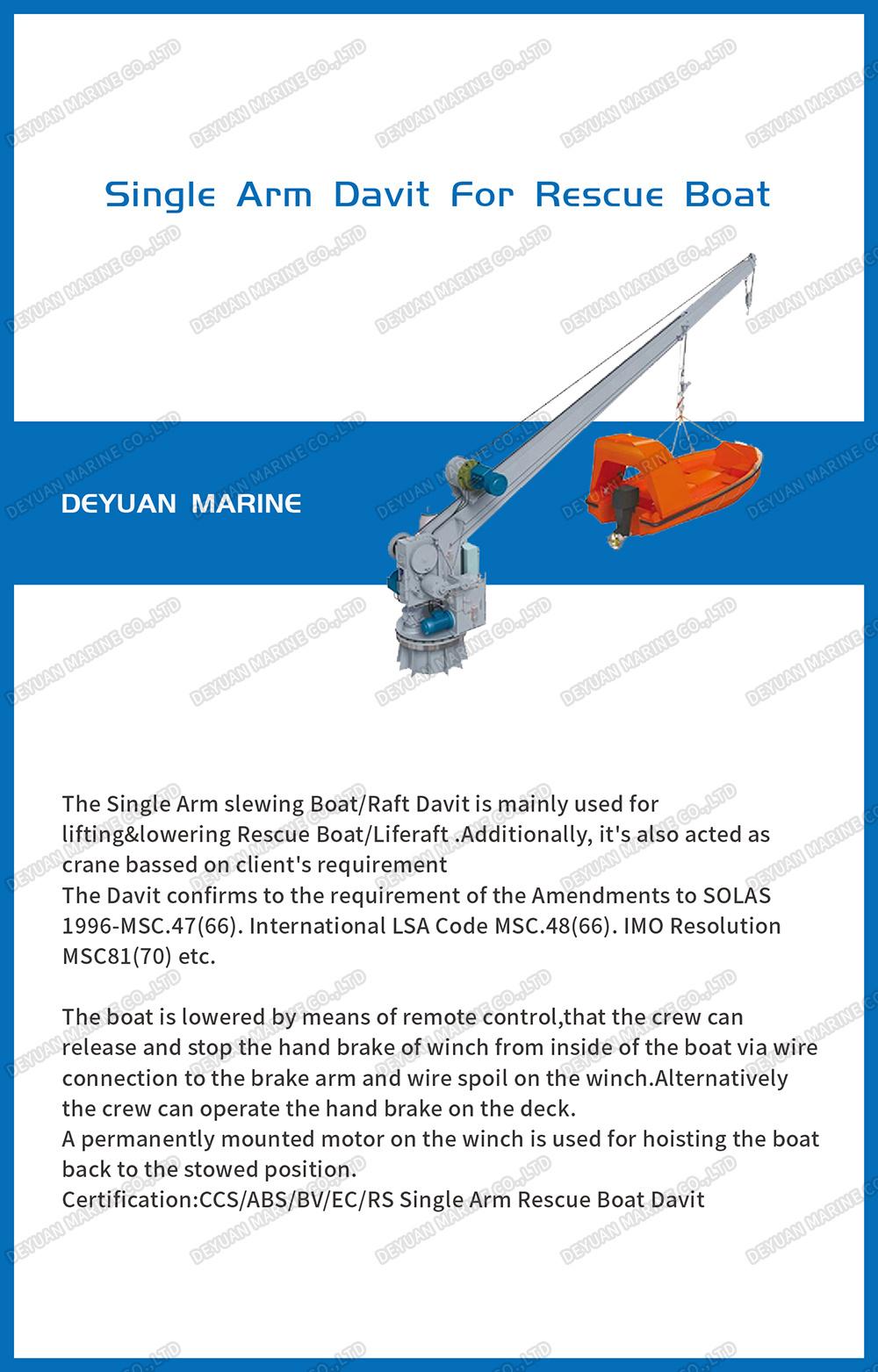

SOLAS Single Arm Davit

The davit is a single jib. It is composed of boat seat frame, crane arm, boom beam and boat crane. It is characterized by small deck area, convenient lifting and simple manufacturing process. When the boat is in use, release the boat crane, and the single arm boat frame falls overboard; when the boat is in position, continue to release the boat sling, and the boat continues to land to the surface. The single arm davit is suitable for launching lifeboats from inland vessels.

Single Arm Type Davit Crane for Solas Fast Rescue Boat The Single Arm slewing Boat/Raft Davit is mainly used for lifting&lowering Rescue Boat/Liferaft .Additionally, it's also acted as crane bassed on client's requirement
The Davit confirms to the requirement of the Amendments to SOLAS 1996-MSC.47(66). International LSA Code MSC.48(66). IMO Resolution MSC81(70) etc.
The boat is lowered by means of remote control,that the crew can release and stop the hand brake of winch from inside of the boat via wire connection to the brake arm and wire spoil on the winch.Alternatively the crew can operate the hand brake on the deck.
A permanently mounted motor on the winch is used for hoisting the boat back to the stowed position.
The requirements as stated in the current SOLAS regulations.It has CCS, BV, RINA, ABS approval.
 Deyuan Marine provides different types of davits for rescue boat, like 21KN rescue davit, 23kn rescue davit, 25kn davit crane, 30KN hydraulic davit, please contact us for more details.
