• Model NO.：JQHS50
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001, API7K,ABS,CCS,BV,Dnv
• Standard：National Standards
• Brand：Dali
• Pulling Force：5t,11000lbs
• Pulling Speed：12m,Min
• Drum：Single Drum(Customized)
• Braking Type：Band Brake, Disc Brake, Air Brake
• Conditions：Brand New
• Certificate：API, CCS,ISO,CE, ABS
• Transport Package：Iron Boxes,Wooden Cases
• Specification：ABS, CCS, ISO9001-2008, API, CE, ATEX
• Trademark：DaLi
• Origin：Shandong, China
• HS Code：84253990
• Production Capacity：500

Basic Info.

Model NO. JQHS50 Running Mode Stationary Feature Explosion-Proof Certification GS, CE, RoHS, ISO 9001, API7K,ABS,CCS,BV,Dnv Standard National Standards Brand Dali Pulling Force 5t,11000lbs Pulling Speed 12m/Min Drum Single Drum(Customized) Braking Type Band Brake/ Disc Brake/ Air Brake Conditions Brand New Certificate API, CCS,ISO,CE, ABS Transport Package Iron Boxes/Wooden Cases Specification ABS, CCS, ISO9001-2008, API, CE, ATEX Trademark DaLi Origin Shandong, China HS Code 84253990 Production Capacity 500

Product Description

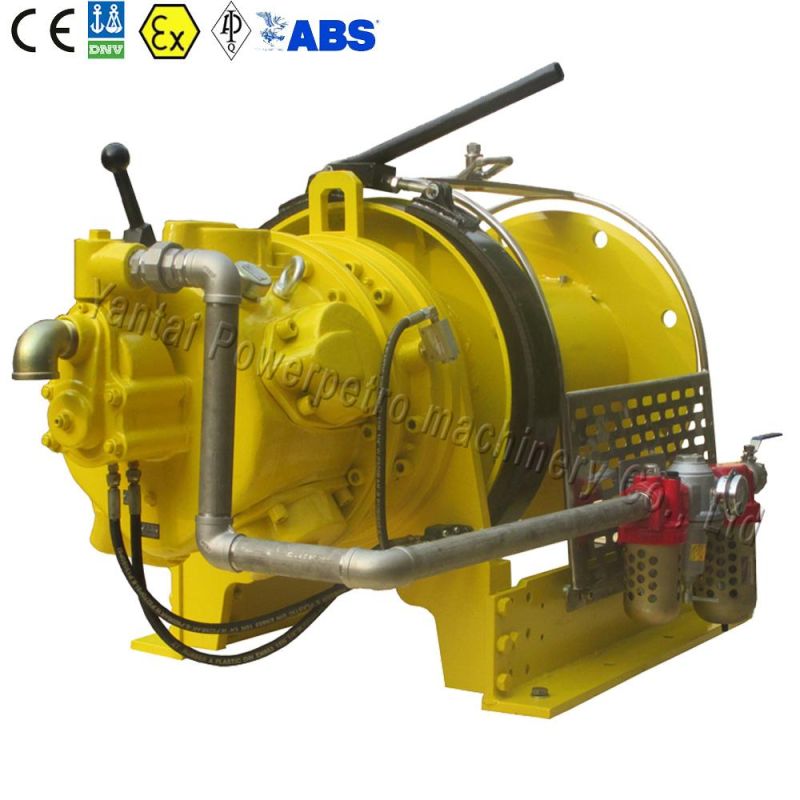

API Certified Air Tugger Winch Ingersollrand Type for Coal Minings with Disc Brake


Introduction:
The JQHS50 Air Winch adopts compressed air as power to drive the TMH17 piston air motor, transferring torque to drum through the second Gear Reducer. By operating manual diversion valve on the motor, the winch can perform hoisting, lowering and stopping actions to the wire rope. Considering security, it is specially designed with hand and foot double manual brakes for fear of unexpected accidents.
The Double-braking Air Winch is especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields off-sea and inland, etc. (Its maximum load is up to 5 ton

Features:
1. Compact in size and light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling, lifting and other work in mines, construction engineering sites, platforms of oilfields, etc;
7. The Normal Pull Force can be tailor-made to your requirement;
8. Good after-sale service with high quality;
9. ISO, API, CCS approved.

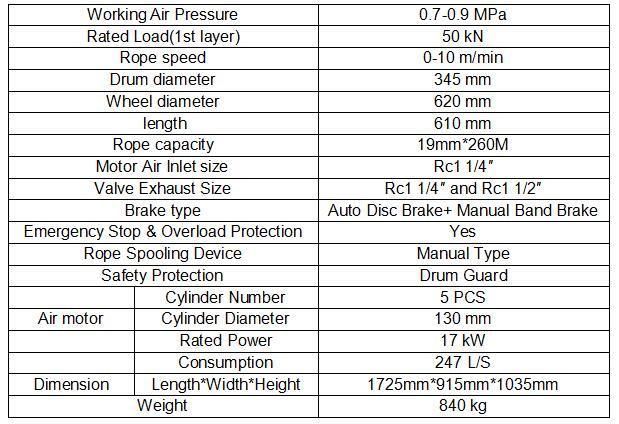

Technical Parameters:
