Coal Mining Explosion Proof Electric Small Lifting Hoist Dispatch Winder Heavy Duty Winch Underground Hydraulic Dispatching Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Warranty：1year
- Type：Construction Winch
Base Info
- Model NO.：JD
- Driven Type：AC
- Speed：Fast
- Carrying Capacity：Middle-Level
- Tonnage：1T
- Reel Number：1
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：ISO 9001
- Standard：National Standards
- Model：Jd-0.5
- Dia of Wire Rope：9.3mm
- Rope Capacity：250m
- Motor Power：5.5kw
- Motor Voltage：380,660V
- Transport Package：Wooden Case
- Specification：1100*765*730mm
- Trademark：China Coal
- Origin：China
- HS Code：8425311000
- Production Capacity：500 Sets,Month
- Package size per unit product：800.00cm * 800.00cm * 800.00cm
- Gross weight per unit product：800.000kg
Description
Basic Info.
Model NO. JD Driven Type AC Speed Fast Carrying Capacity Middle-Level Tonnage 1T Reel Number 1 Running Mode Stationary Feature Explosion-Proof Certification ISO 9001 Standard National Standards Model Jd-0.5 Dia of Wire Rope 9.3mm Rope Capacity 250m Motor Power 5.5kw Motor Voltage 380/660V Transport Package Wooden Case Specification 1100*765*730mm Trademark China Coal Origin China HS Code 8425311000 Production Capacity 500 Sets/MonthPackaging & Delivery
Package size per unit product 800.00cm * 800.00cm * 800.00cm Gross weight per unit product 800.000kgProduct Description
Introduction of Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch
Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch is widely used to pull the tramcar underground.The explosion-proof electric device can be applicable for the colliery and other mine with gas danger.
JD Dispatching Winch are all explosion-proof for mine or surface mine car loading operation grouping and hauling carts in the middle of roadways and other supporting transport purpose.
JD Dispatching Winch are used plantary gear drive, have following features:compact structure, good rigidity, high efficiency, conveniency for installing and moving, flexible operation, smooth braking, low noise.
Main Parameter of Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch
| Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
| Traction Force KN | 7.5 | 7.5 | 10 | 17.6 | 30 |
| Average Speed m/s | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
| Dia of Wire Rope mm | 9.3 | 9.3 | 12.5 | 15 | 20 |
| Drum Size mm | 200×300 | 200×300 | 224×304 | 310×400 | 620×580 |
| Rope Capacity m | 250 | 250 | 400 | 440 | 480 |
| Total Reduction Ratio | 34.81 | 34.81 | 41 | 32.5 | 31.8 |
| Motor Type | YB132S-4-B5 | YBJ-11.4 | YBJ45-4 | YBJ40-4 | YB2-132S-4 |
| Motor Power KW | 5.5 | 11.4 | 25 | 40 | 5.5 |
| Motor Rev Rev/min | 1440 | 1460 | 1470 | 1470 | 1440 |
| Motor Voltage V | 380/660 | 380/660V | 380/660V | 380/660V | 380/660V |
| Di mention mm L×W×H | 1085×730 ×697 | 1085×730 ×697 | 1073×766 ×727 | 1448×1255 ×1260 | 1900×2350 ×1370 |
| Weight KG | 400 | 400 | 578 | 1370 | 2800 |

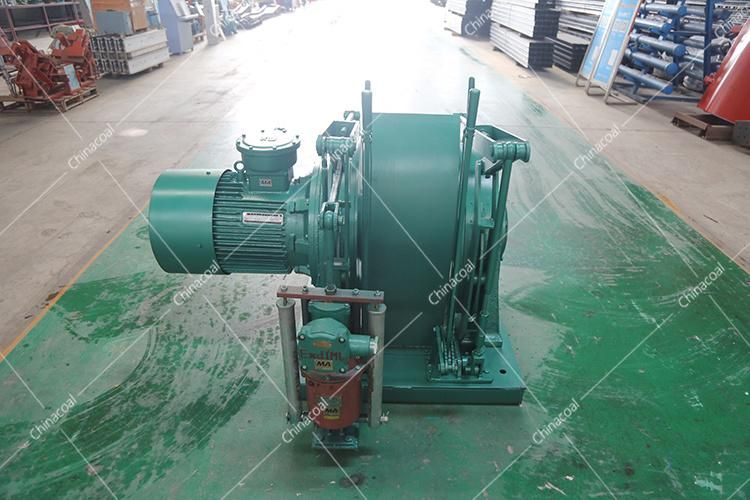

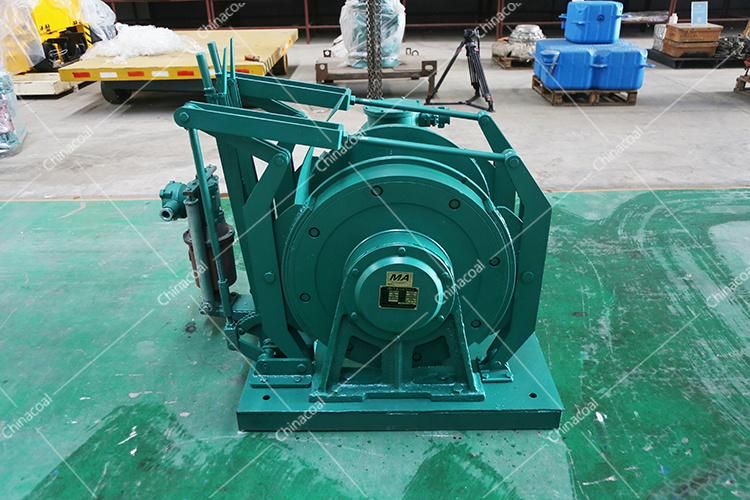

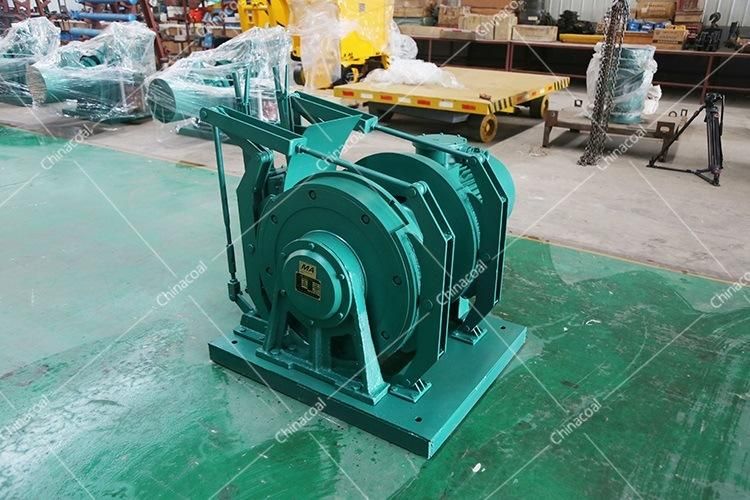

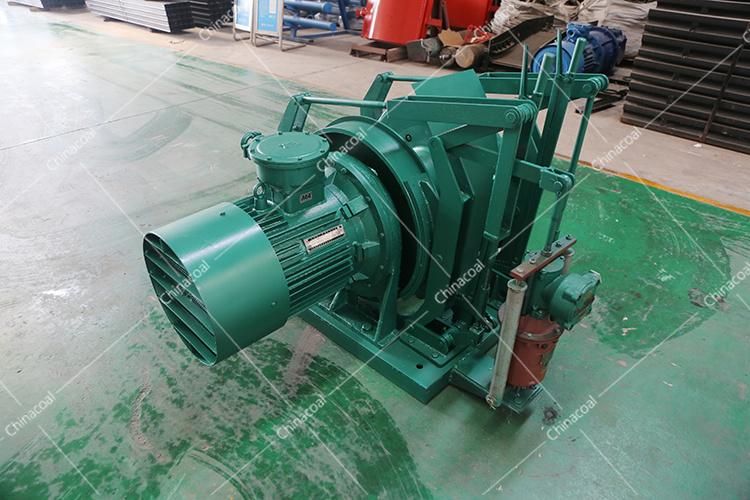

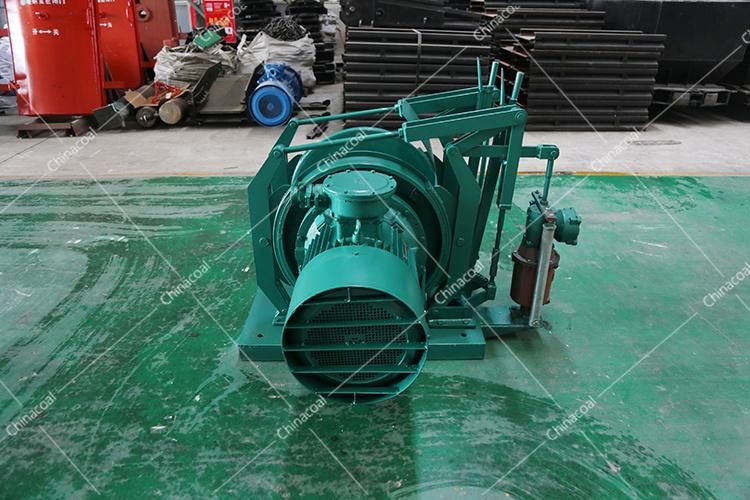

Pictures of Coal Mining Explosion Proof Electric Lifting Hoist Underground Dispatching Winch
