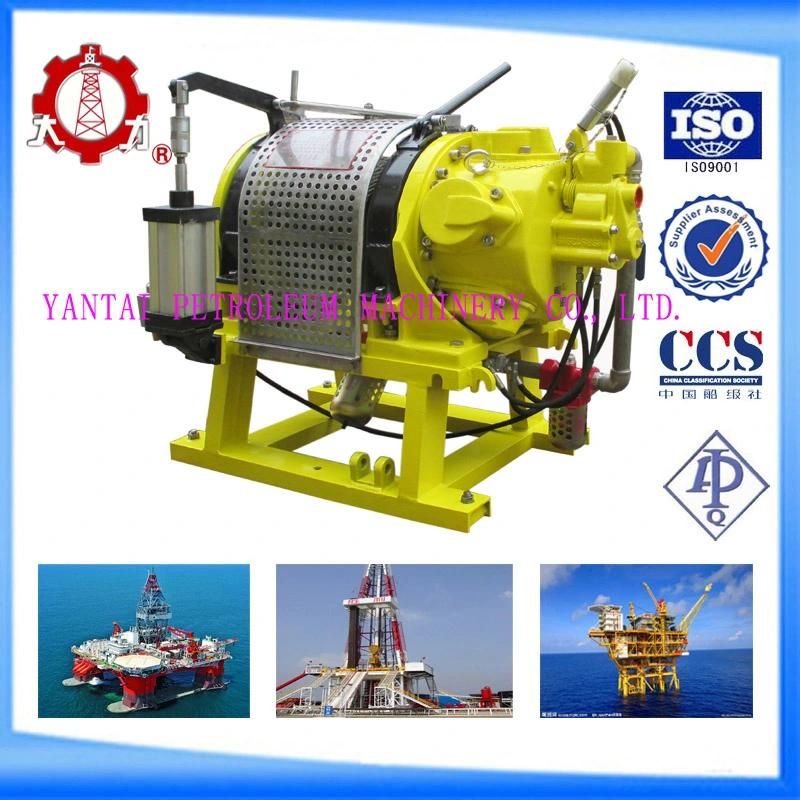

Jqh50*12 Air Winch Tugger with Hand Brake Auto Brake 50kn
Yantai Petroleum Machinery Co., Ltd.- Type：Construction Winch
- Driven Type：Air
- Speed：Fast
- Carrying Capacity：Middle-Level
- Tonnage：5T
- Reel Number：1
Base Info
- Model NO.：JQH50*12
- Running Mode：Moving
- Feature：Explosion-Proof
- Certification：CE, API,ABS,Dnv
- Standard：National Standards
- Corlor：as You Like
- Paint：Marine Grade Paint for Harsh Environment
- Transport Package：Iron Boxes,Wooden Cases
- Specification：1250*770*1016mm
- Trademark：DALI
- Origin：Shandong, China
- HS Code：842539
- Production Capacity：500
Description
Basic Info.
Model NO. JQH50*12 Running Mode Moving Feature Explosion-Proof Certification CE, API/ABS/Dnv Standard National Standards Corlor as You Like Paint Marine Grade Paint for Harsh Environment Transport Package Iron Boxes/Wooden Cases Specification 1250*770*1016mm Trademark DALI Origin Shandong, China HS Code 842539 Production Capacity 500Product Description
Benefits & Features
* Compact design with easy mobility
*Designed for easy and safe operation
*High durability for applications in harsh environments
*Resistant to overheating damage and at overload capacity
*Continuous operation at full load
*Large drum diameter to prolong rope life
*Marine grade paint for harsh environment
Worldclass Quality, Outstanding Performance
*Poppet / spool valve construction to eliminate air leakages
*Reverse rotation available. Valve handle operation allows free handling of the load as air flows into the control valve
*Built-in radial piston air motor
*Ball / roller bearings minimize friction
*Set-up reduction ratio works on rope pull and line speed
*Claw clutch mechanism allows safe, accurate handling in locked ON/OFF positions
*Automatic or manual brake
*Use sealed ball bearings to prevent oil leakage
*Self closing throttle valve shuts off automatically when released
Specification
| Items | Parameters | Measurement Unit |
| Rated Working Pressure | 0.6-0.8 | Mpa |
| Rated Pull Force | 50 | KN |
| Rated Cable Speed | 12 | m/min |
| Piston Air Motor Model | TMH17 | ----- |
| Piston Air Motor Rated Power | 17 | kW |
| Piston Air Motor Air Consumption | 247 | L/S |
| Drum Diameter | 222 | mm |
| Drum Width | 335 | mm |
| Drum Wheel Diameter | 465 | mm |
| Cable Diameter | 15.875 | mm |
| Cable Storage | 120 | m |
| Air Inlet Diameter | 1 1/4 | in |
| Configuration | 1200*920*989 | mm |
| Weight | 498 | KG |
