• Model NO.：ZS0607
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Self Propelled
• Certification：GS, CE, RoHS, ISO 9001
• Gradeability：30%
• Drive Motor：White
• Pcu&ECU：Delta Tech
• Swithc：Schneider
• Controller：Curtis
• Hose：Alfagomma
• Sensor：Honeywell
• Battery：Troian
• Charger：Delta-Q
• Transport Package：Standard Export Packing or as Required
• Specification：L*W*H: 1.82*0.81*2.06m
• Trademark：RY
• Origin：China
• HS Code：842890
• Production Capacity：5000PCS,Year

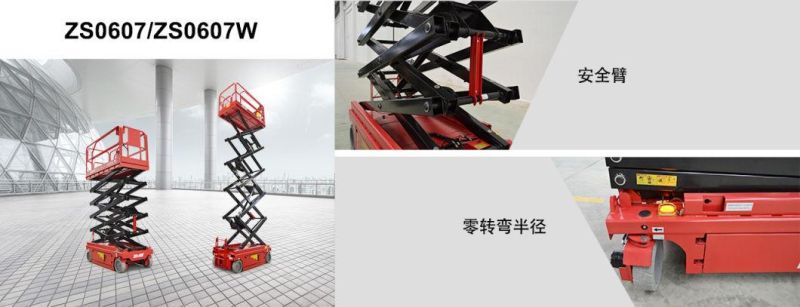

ZS0607

• Working Height Maximum7.8 m (25 ft 7 in)Platform Height Maximum5.8 m (19 ft)Length5 ft 12 in (1.82 m)Width2 ft 8 in (0.81 m)Height Stowed7 ft 2 in (2.18 m)Platform Size (leigth * width)5 ft 5 in * 2 ft 6 in (1.65 m x 0.76 m)Side-Out Platform Extension Deck2 ft 11 in (0.9 m)Ground Clearance-center 0.8 in (0.02 m)Wheelbase4 ft 5 in (1.35 m)Lifting Capacity6507 lbs (230 kg)Turning radius (inside / outside)0 /5 ft 1 in (1.55 m )Drive speed stowed2.5 mph (4.0 km/h)Drive speed raised0.5 mph (0.8 km/h)Raise/Lower speed18 / 28 sGradeability stowed25 %Max.work angle of inclination3° / 1.5°Tires-sold non-marking12 x 4 in (30.5 x 11 cm)

  Drive motor	4.49 ps (3.3 kw)
  Battery	24V DC (four 6V DC 224 ah batteries)
  Weight	3307 lbs (1500 kg)

                                    Drive motor4.49 ps (3.3 kw)Battery24V DC (four 6V DC 224 ah batteries)Weight 2734 lbs (1,240 kg)
