China Manufacture 1ton to 50ton Hydraulic Winch for Boat/ Crane/Tow Truck
Jining Jinjia Hydraulic Co., Ltd.- After-sales Service：Free Parts
- Warranty：1year
- Type：Construction Winch
- Driven Type：Hydraulic
- Speed：Fast
- Carrying Capacity：Special Weight Level
Base Info
- Model NO.：HW
- Tonnage：1 2 3 5 10 15 20 30 Ton
- Reel Number：1
- Running Mode：Stationary
- Feature：Antiseptic
- Certification：ISO 9001
- Standard：National Standards
- Customized Support：OEM, ODM
- Transport Package：Wooden Packing
- Specification：50
- Trademark：jinjia
- Origin：Jining
- Production Capacity：50000
Description
Basic Info.
Model NO. HW Tonnage 1 2 3 5 10 15 20 30 Ton Reel Number 1 Running Mode Stationary Feature Antiseptic Certification ISO 9001 Standard National Standards Customized Support OEM, ODM Transport Package Wooden Packing Specification 50 Trademark jinjia Origin Jining Production Capacity 50000Product Description
Product Description

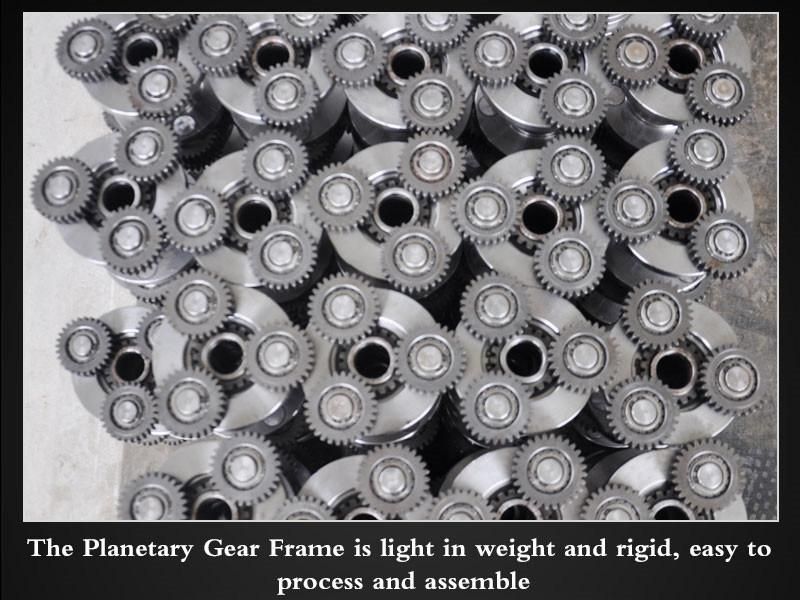

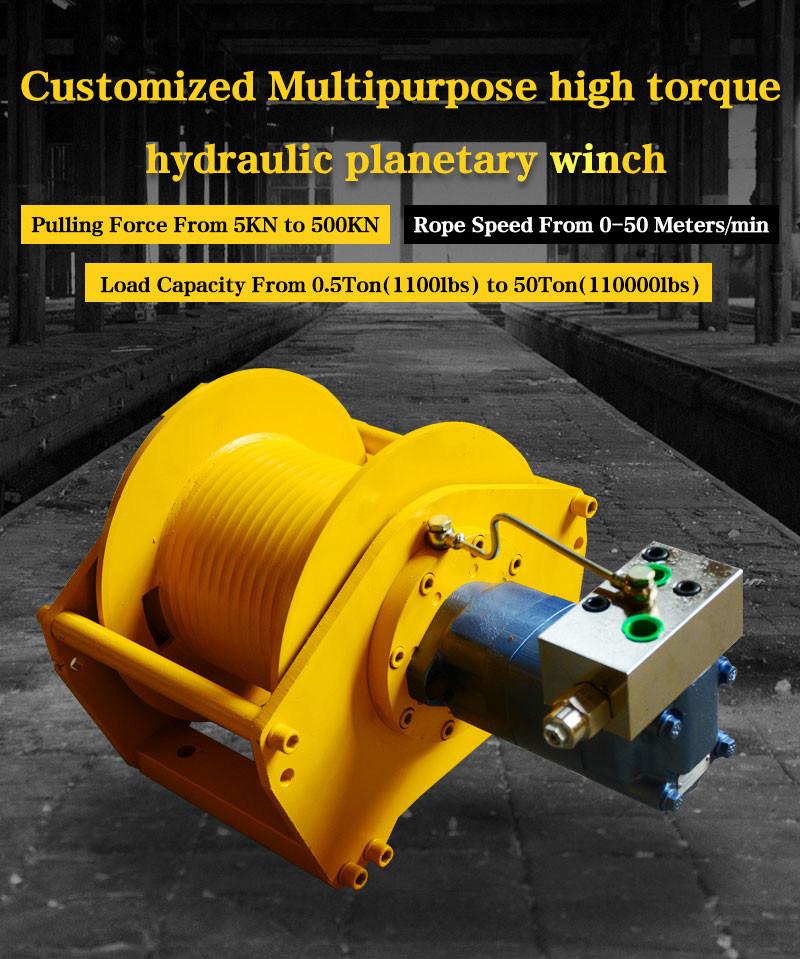

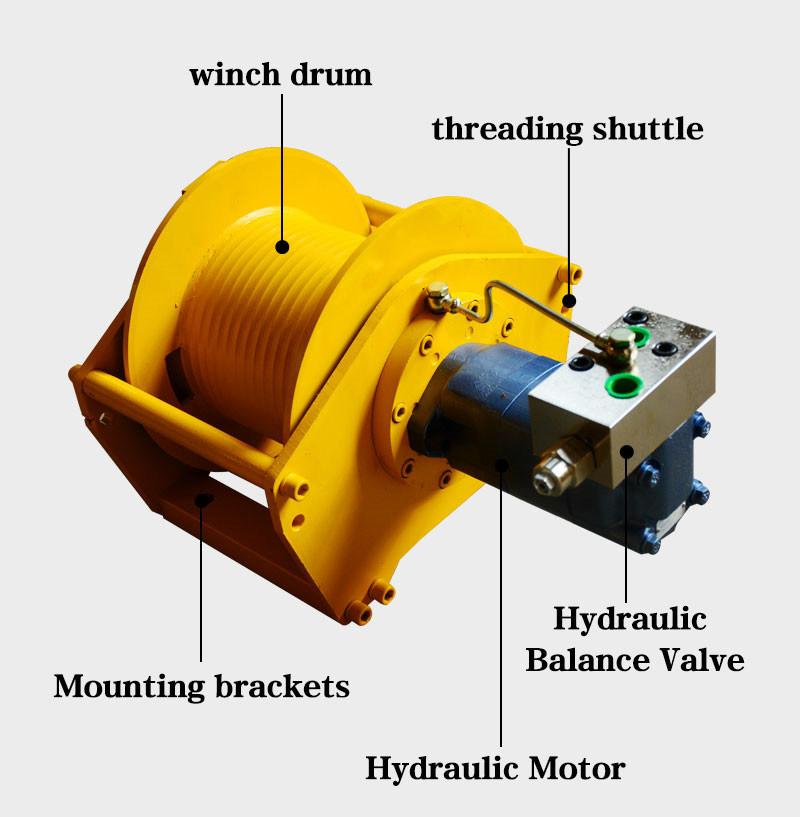

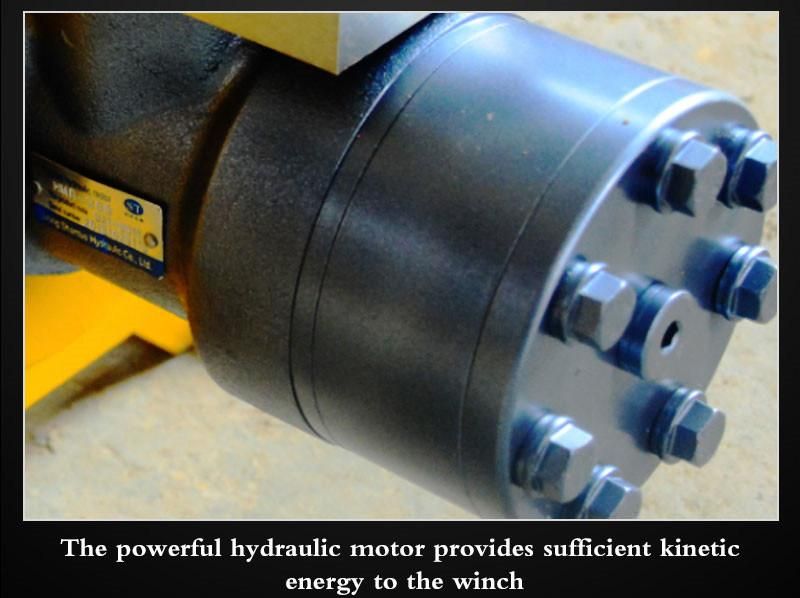

Hydraulic planetary winch is a high torque winch with the rated load 0.5 Ton(1100lbs) to 50 Ton(110000lbs), hydraulic motor have high mechanical efficiency and large torque, can drive different distributor as per different working conditions. This kind of winches have following features:compact structure,small size,light,nice appearance,safety,high efficiency,large torque,good stability,low noise,reliable operation and so on. JINJIA HW Series Hydraulic Winch adopt planetary gear transmission, compact structure, smooth operation, multi-tooth meshing, high transmission efficiency, large output torque, widely used in lifting transportation, engineering machinery, metallurgy, mining, construction machinery and other fields. Grease has been added to this product, and users should replenish grease according to frequency of use (added from 3 small copper caps).
Product Specifications
| Model | HW-0.5T/1T/1.5T | HW-2T/3T | HW-5T | HW-8T |
| Torque (max) | 1912 | 1912 | 2266 | 3200 |
| Reduction ratio | 6 | 6 | 5 | 22.5 |
| Output revolution (rated) | 44.5 | 44.5 | 66 | 53 |
| Weight (kg) | 45 | 45 | 70 | 125 |
| Lubricating oil specification | Grease | Grease | Grease | LCKD220 |
| Model | HW-10T | HP-12T | HP-18T | HP-25T |
| Pull(kn) | 100 | 120 | 180 | 250 |
| Working pressure | 16Mpa | 16Mpa | 20Mpa | 20Mpa |
| Oil flow supply | 220L/min | 220L/min | 220L/min | 220L/min |
| Rope diameter | 30mm | 30mm | 34mm | 42mm |
| Wire rope | 111m | 113m | 130m | 186m |
Product ApplicationApplication:Widely used in construction, water conservancy engineering, forestry, mining, wharf, etc. material lifting, also can be used as a modern electronic control automatic operation line supporting equipment.
Certificate

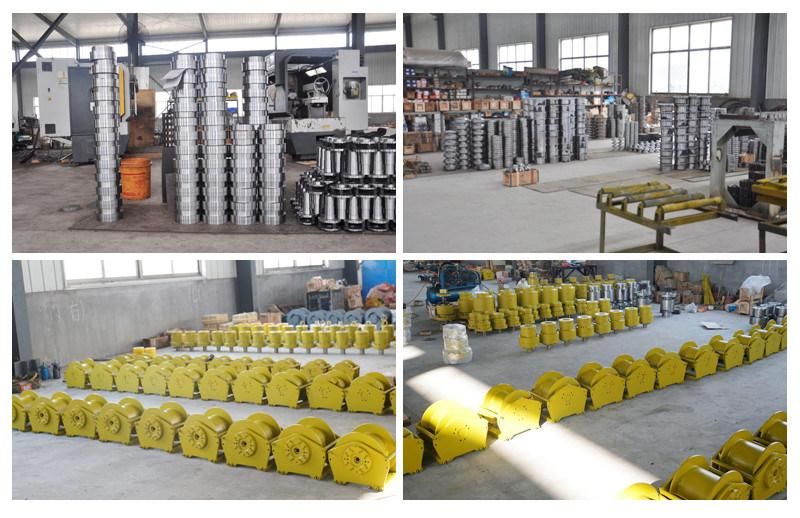

Our Workshop
