Hand Operated Chain Hoist Blocks Manual Lifting Equipment

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
  • Type：Chain Hoist
  • Sling Type：Chain
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：12m
  • Chain Falls：1

Base Info

  • Model NO.：VD
  • Certification：CE
  • Condition：New
  • Color：Orange
  • Name：Hsz Hand Operated Chain Hoists, Manual Lifting
  • Cover：Alloy
  • Request Lifting Capacity：1 Ton
  • Request Lifting Height：2.5 M
  • Hook：Forged
  • Chain：G80
  • Warranty：1 Year
  • Delivery：15 Work Days
  • Loading Port：Shanghai
  • Transport Package：Carton, Plywood, Pallet
  • Specification：CE, SGS, ISO
  • Trademark：Hugo
  • Origin：Shanghai
  • HS Code：8425190000
  • Production Capacity：5000 Sets Per Month

Description

ModelHSZ-VD1THSZ-VD1.5THSZ-VD2THSZ-VD3THSZ-VD5THSZ-VD10TCapacity(T)11.523510Lifting Height(m)2.52.52.5333Load ChinNo.of falls111124Dimension6x87.1x218x2410x309x2710x30Force of full load250265335372360380N.W/G.W(KG)14.5/1516.5/1719.5/20.132/3441.1/43.675.7/79.1DimensionA149176176231249463B153173173185185185C293535394954D415151496775Hmin352385385445615765Additional weight per meter(KG)1.61.92.23.04.69.6Features1. High quality, economical, safe and reliable hand chain block.2. Featuring a drop forged load hook to prevent snapping when overloading.3. Factory tested and certified.4. Heat treated for greater strength and to prevent wear.5. The opening of the hooks has been made wider for easier handling and working. 6. Reliable disk brake and premium grade alloy chain.7. Heat treated for greater strength and to prevent wear.

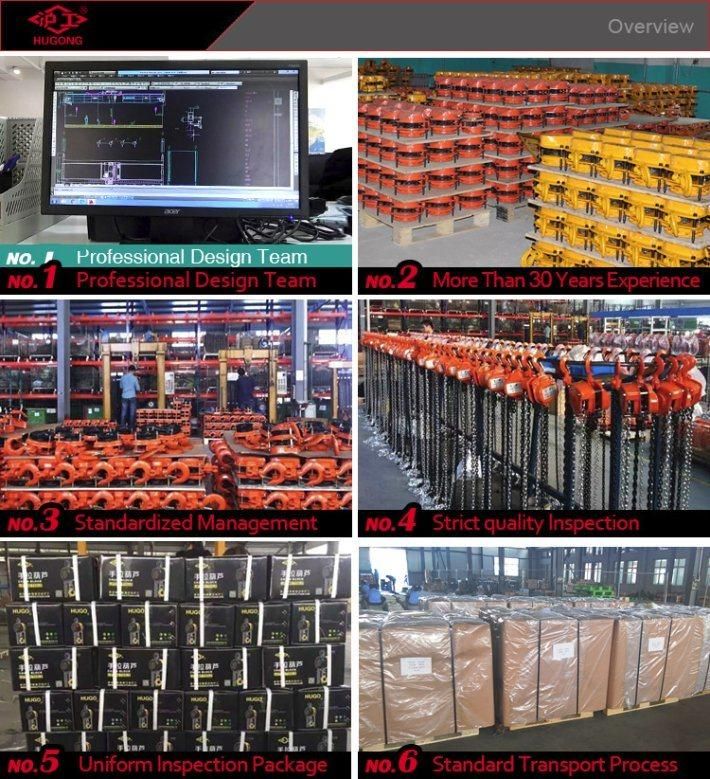

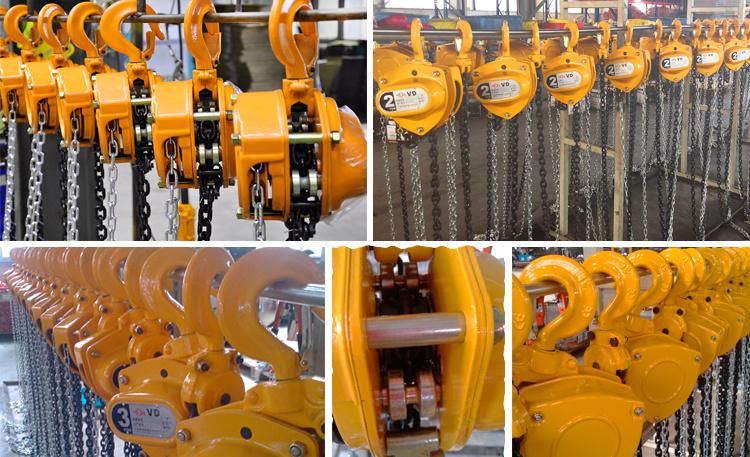

Hand pulley blocks manual chain block Object and detailHand Operated Chain Hoist Blocks Manual Lifting EquipmentHand pulley blocks manual chain block production processHand Operated Chain Hoist Blocks Manual Lifting Equipment

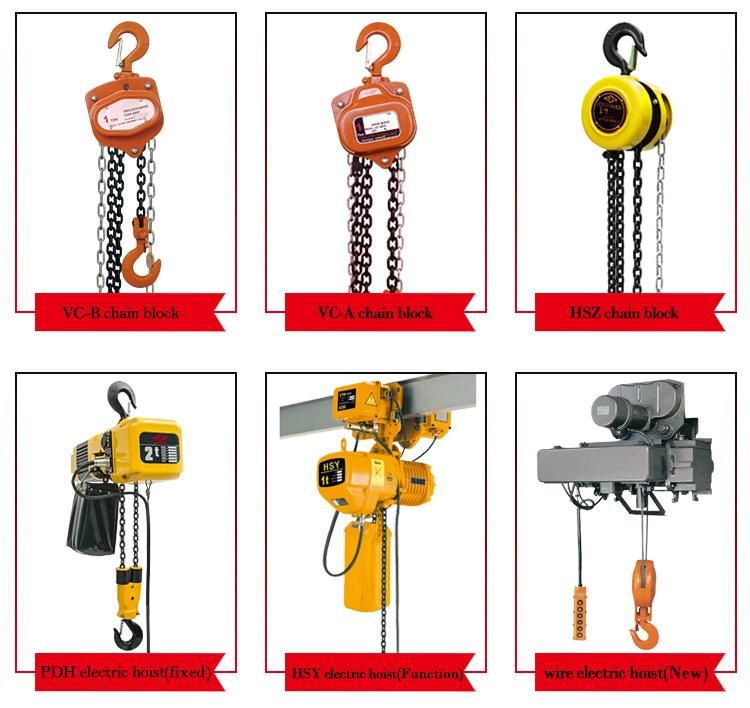

Related productsHand Operated Chain Hoist Blocks Manual Lifting Equipment

Our Customers:Hand Operated Chain Hoist Blocks Manual Lifting Equipment
Certificate:Hand Operated Chain Hoist Blocks Manual Lifting Equipment
