• Model NO.：YPCNG10D-0000
• HS Code：8426419000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. YPCNG10D-0000 HS Code 8426419000 Production Capacity 1000sets/Year

Product Description

Full-Automatic container spreader is suitable the double-link portal crane or jib crane.

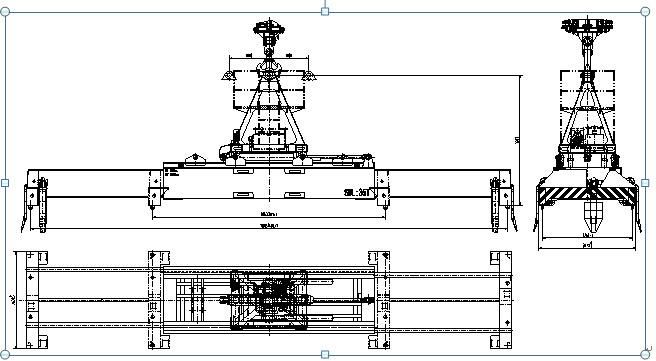

Hydraulic Rotating Container Spreader Specifications:
1, Suitable for 20`-40` telescopic spreader.
2, Capacity under spreader: 40.5t
3, lifting capacity of four lugs: 15t×4
4, Dead weight: ~8200± 2%
5, dead weight of rotation hook: 1400kg
6, Power: AC380V/AC440(3phase)50Hz or 60Hz, 7.5kW
7, Control Voltage: AC220V
8, IP class: IP55
9, Working Pressure: 100bar
10, Working Temperature: -10ºC~+40ºC



YO-PI provides
1. Designs meet customer specification.
2. Fast spare-parts delivery across the world.
3. Acceptance testing including certification such as BV, LRS, GL, DNV, ABS, and etc.

About us
Shanghai YO-PI Port Machinery Co., Ltd. is an enterprise specialized in R&D and manufacturing customized grabs, container spreaders and related spare parts, and with many years of experiences.

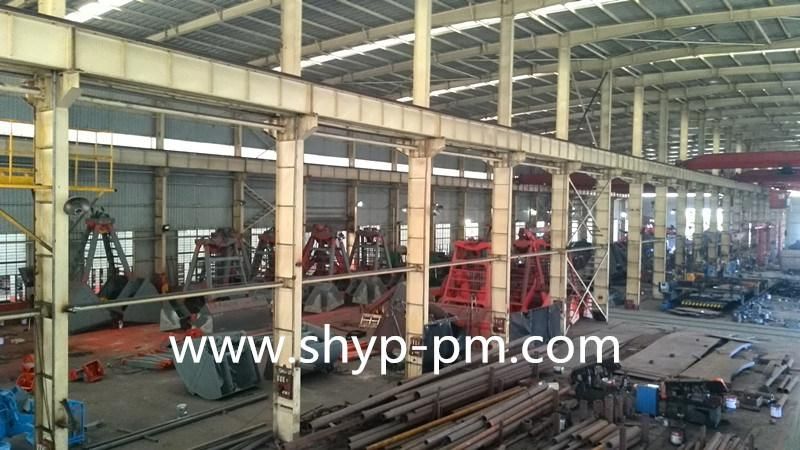

Our factory is located in Nantong Jiangsu province in China, with more than 10000m2, where there are all kinds of special machines for numerical control cutting, cold shaping, shot blasting, NDT, stress relief annealing and so on. Weld procedure and quality management have passed certification of ISO9001.






Our Product Certificate

Our company takes the idea of "Customized Production, Professional Services".
We would like to sincerely dedicate the first-class products and services to you.
