• Model NO.：Mini Manual Movenemnt Scissor Lift
• Certification：CE, ISO 9001
• Transport Package：Waterproof Stretch Film + Iron Support + Sponge
• Specification：Overall Size: 1.25*0.76*1.90 m
• Trademark：East Lift or OEM
• Origin：Suzhou China
• HS Code：8428909090
• Production Capacity：50 Units Per Month

Basic Info.

Model NO. Mini Manual Movenemnt Scissor Lift Certification CE, ISO 9001 Transport Package Waterproof Stretch Film + Iron Support + Sponge Specification Overall Size: 1.25*0.76*1.90 m Trademark East Lift or OEM Origin Suzhou China HS Code 8428909090 Production Capacity 50 Units Per Month

Product Description

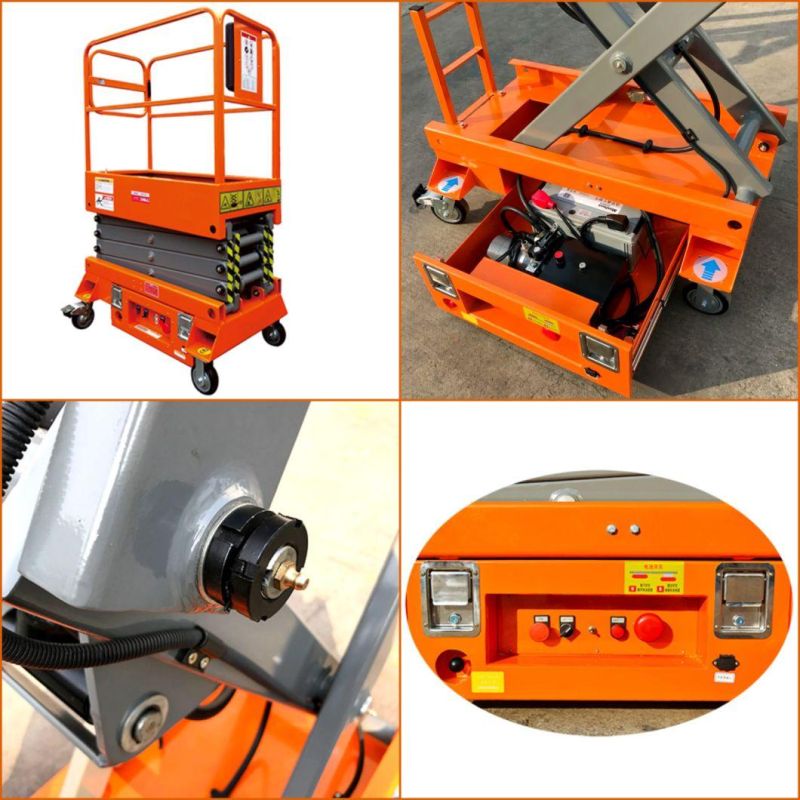

Mini Mobile Scissor lift

Product introduction:

1. Made of wide section manganese steel, heavy loading;
2. Scissor mechanism;
3. Large platform;
4. Upper / lower control mode;
5. Emergency lowering device;
6. Double contractors and double limit switches;
7. Extension platform is optional;
8. Self-propelled is optional;
9. Emergency stop button;
10. Levelling device with supporting screws.


Model	JCPT0507	JCPT0607
Safe Working Load(kg)	240	240
Number of passengers	1	1
Max working height(m)	5.00	5.90
Max height of the platform(m)	3.00	3.90
Overall length (m)	1.30	1.30
Overall width(m)	0.76	0.76
Overall length(rails up)(m)	1.83	1.92
Overall length(rails down)(m)	1.43	1.52
Platform Size(m)	1.15*0.70	1.15*0.70
Min ground clearance (m)	0.06	0.06
Wheelbase(m)	0.99	0.99
Lifting Motor(VDC/kw)	12/0.8	12/0.8
Up/down speed(sec)	34/20	34/21
Accumulator(V/Ah)	12/120	12/120
Charger(V/A)	12/10	12/10
Overall weight(kg)	402	436

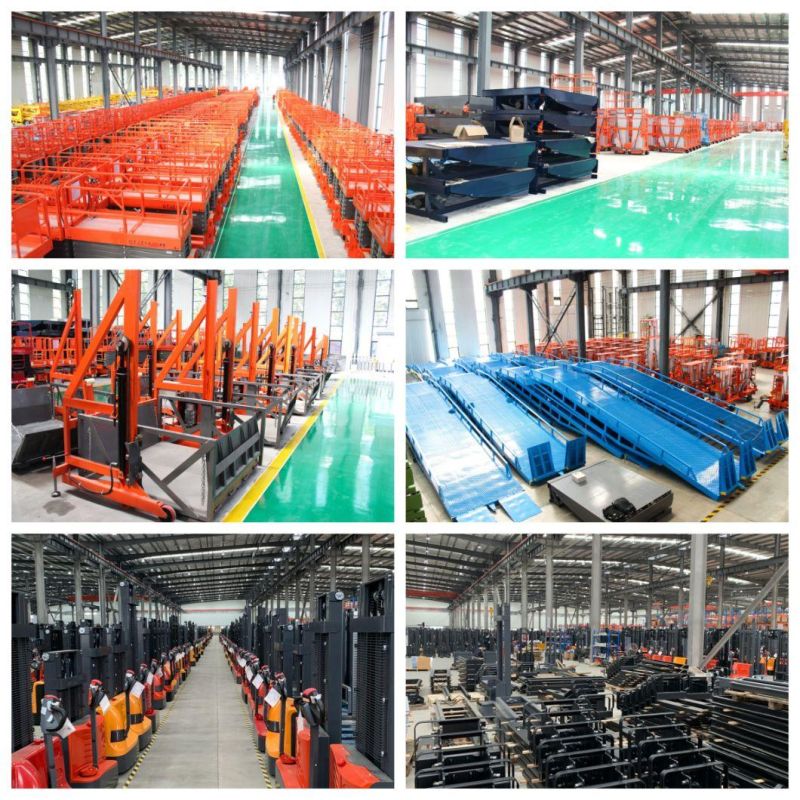

Suzhou East Machinery Co.,Ltd
We are the top manufacturer in Jiangsu China for various Lifting Equipments, decades of experience in the line. Products include but not limited to Mast Aerial Work Platform, Scissor Lift, Stationary Scissor Lift, Stacker, Forklift, Pallet Truck, Dock Leveler, Scissor Lift Table, Order Picker etc.

Our factory established since 2003, we have cooperated with many foreign customers like Indonesia, India, Singapore, South Korea, Vietnam, Thailand, Brazil, Saudi Arabia, United Arab Emirates and a few European countries.



Our Services
1. Shipment can be arranged from our port to your destination port.
2. User-friendly English manual for machine installation using and maintenance.
3. Supply 24-hours technical assistance by email, telephone or other communication online.
4. Customization is available.

Warranty
Bond Nai assure customers: all products are no process or material defects, defects such as the company strictly in
accordance with the requirements of national quality guarantees:
1.Return within ten days
A, customers receive products do not conform to the requirements of the order of the rules, can't normal use.
B, the product defects cannot be used properly and beyond repair.
2.The replacement one months
A, customers receive products not in conformity with the order product model.
B, in the process of the delivery of the goods transportation product defects, can't repair.
3.One year repair kit
Within one year from the date of product delivery, under normal use, due to the quality of the products (such as improper use
artificial reason does not belong to the warranty scope) caused by equipment failure, free warranty.
Besides the above guarantee bond Nai haven't made any other guarantee, due to the directory product misuse, incorrect or
improper application and directory defects occurring in the course of the claim for compensation, bond Nai does not undertake
any responsibility.

Should you need any information about our products and company, please feel free to contact us.
