3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

Chenlift (Suzhou) Machinery Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Self-propelled
  • Driven Type：DC
  • Running Mode：Moving

Base Info

  • Model NO.：MX800S
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Max Platform Height：8 M
  • Max Working Height：10 M
  • Load Capacity：450 Kg
  • Platform Size：2.27* 1.12 M
  • Platform Extension Length：0.9 M
  • Extension Load：113 Kg
  • Lift/Drive Motor：24V,3.3 Kw
  • Ground Clearance( Stowed/Raised)：0.1m,0.019m
  • Wheelbase：1.87 M
  • Gradeability：25%
  • Transport Package：Wrapped with Film
  • Specification：2.43* 1.15* 1.76 m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Model               MX580SMX600SNMX800SNMX800SMX1000SMX1200S      Load230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw Details
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

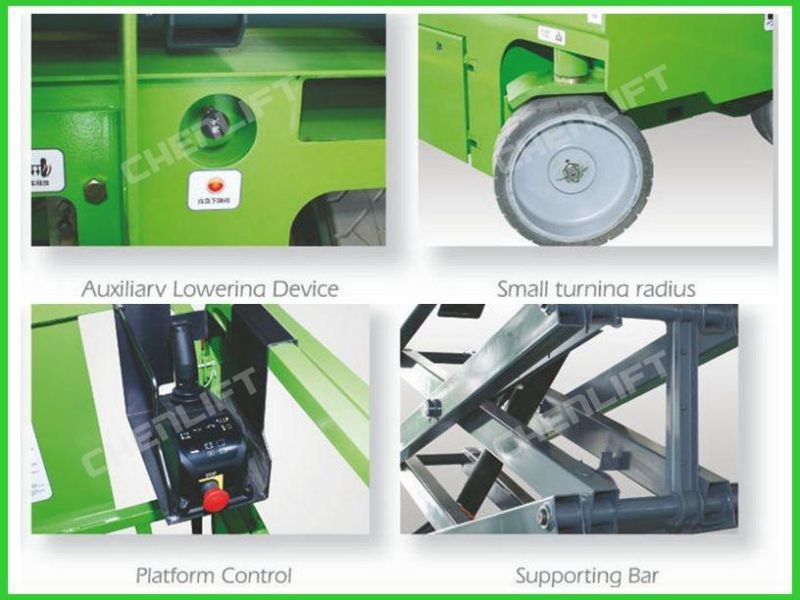

Safety Precaution
  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn
Our Company
As a subsidary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America, Europe and Africa.
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

Certificates
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

Factory Equipment
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

Client &Exhibition
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift



Other Related Products
3m 3.9m 5.8m 6m 8m 10m 11.8m Indoor Use Self Propelled Scissor Lift

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
