Hydraulic Lift Table for Working at Height (10m)
Boonai (Suzhou) Lift Equipment Co., Ltd.- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Lift Chain
- Carrying Capacity:Middle-Level
- Moves:Moving
- Driven Type:AC
- Running Mode:Moving
Base Info
- Model NO.:GTWY10-100
- Feature:Explosion-Proof, Insulating
- Certification:CE, ISO 9001, QC Issued by Gov.
- Max Platform Height (M):10
- Max Working Height (M):12
- Platform Size (M):0.6*0.55
- Rated Load (Kg):125
- L*W*H (M):1.38*0.83*2.15
- Weight (Kg):350
- Voltage (V):220
- Motor (Kw):0.75
- Delivery Time:15 Days or Rush as Requested
- Warranty:12 Months Apart From Man-Made Faults
- Transport Package:Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
- Specification:Aluminium Alloy
- Trademark:BOONAI
- Origin:Xiangcheng District, Suzhou
- HS Code:8428909090
- Production Capacity:50 Units Per Month
Description
Outrigger Size(m) AC (VAC/kw) DC(VDC/kw) GTWY6-100 6 7.7 150 0.6*0.55 220/0.75 24/0.8 260 1.32*0.80*1.65 1.76*1.63 GTWY8-100 8 9.7 125 0.6*0.55 220/0.75 24/0.8 300 1.32*0.80*1.98 1.76*1.75 GTWY9-100 9 10.7 125 0.6*0.55 220/0.75 24/0.8 326 1.38*0.85*1.98 1.76*1.83 GTWY10-100 10 11.7 125 0.6*0.55 220/0.75 24/0.8 350 1.42*0.85*2.10 1.76*1.81

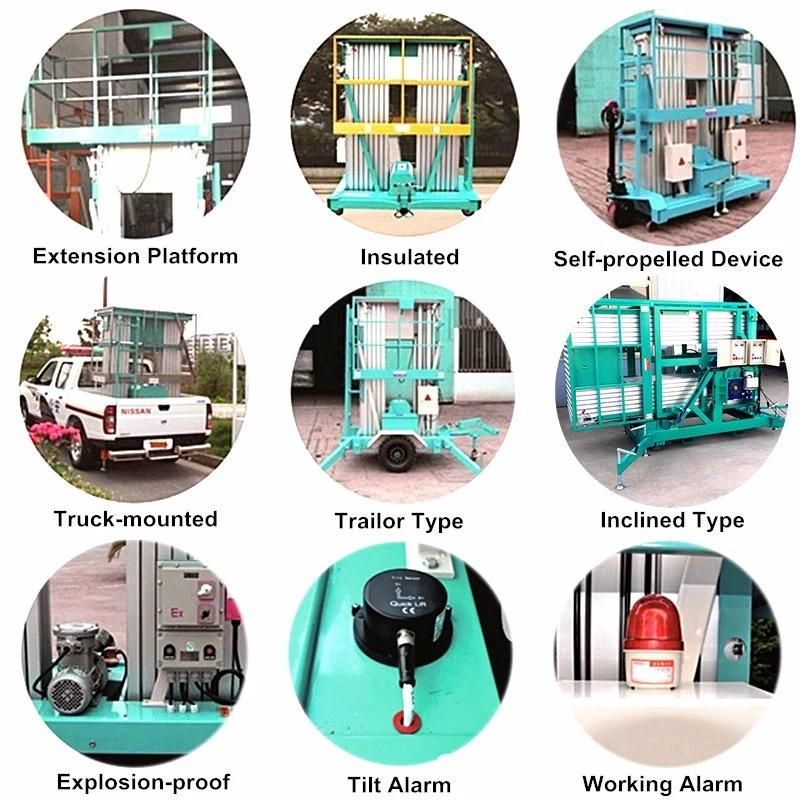

• Optional Configuration:
Power supply: Battery DC with charger, suitable for outdoor operation.
Move mode:
1. Electric moving device is equipped in case of long distance travel
2. Could be built in carriage of truck
3. Trailer base could be provided in case of outdoor operation
Others:
1. Insulated platform
2. Explosion-proof electrical system
3. Overload alarm
4. Outrigger limit switch
5. Tilt alarm
6. AC power to platform
7. Working alarm
8. Rubber dust stop
9. Explosion-proof valve for oil tube

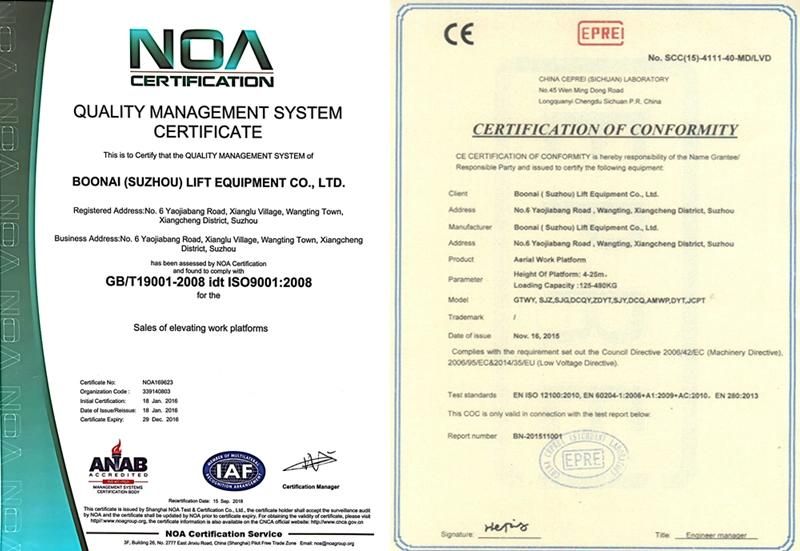

• Company Certificates
• Part or Customers

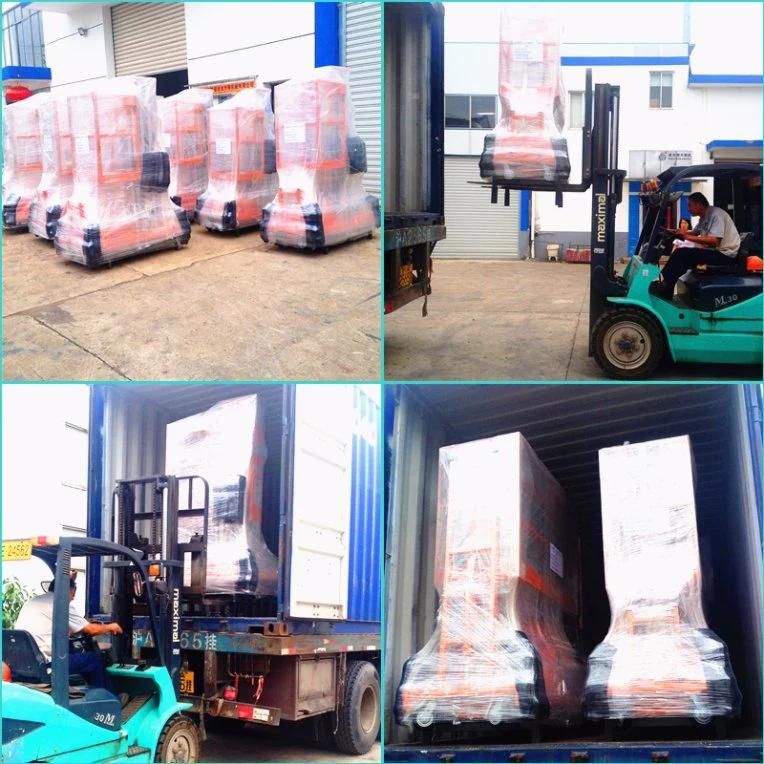

• Packing
• Warranty
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holidaysm engineers are available to your company if necessary.
