Ce-Approved H-Beam Mobile Loading Ramps with 10 Ton Capacity

Dongguan Haide Machinery Co., Ltd.
  • Warranty：5 Years for Steel Structure, 1 Year for Hydrauli
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Cylinder
  • Carrying Capacity：Weight Level
  • Moves：Moving
  • Driven Type：Hydraulic Pump

Base Info

  • Model NO.：HD-HGT10
  • Running Mode：Moving
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Width：2200mm
  • Platform Length：2800mm
  • Slope Length：8200mm
  • Dynamic Capacity：10 Ton
  • Adjust Range：1200~1700mm
  • Self-Weight：3400kg
  • Operate Manner：Manual
  • Manual Pump：Italy "Hydr-APP"
  • Color：Main Body Red+Safety Black&Orange
  • Material：Main Body:Q235B(Sgc400)+Zinc-Plated Steel Mesh
  • Transport Package：No Packing
  • Specification：2000mm x 11000mm
  • Trademark：GD-Haide
  • Origin：Dongguan City, Guangdong Province, China
  • HS Code：8428909090
  • Production Capacity：100set, Year

Description

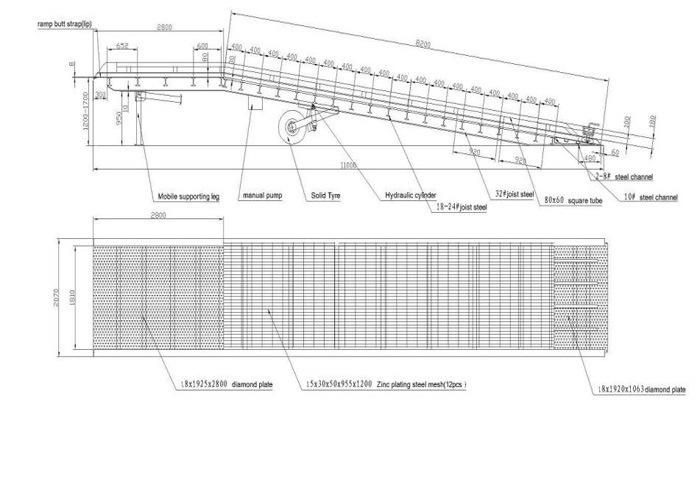

Width 2000mmTotal length11050mmCapacity10tonAdjust range1200~1700mmMaterial32# "H" beam for main body, 14# "H" beam for bottomManual pumpImport from Italy, brand is " Oiltec"Ramp weight3400kgWarranty1 year for hydraulic system, 3 years for steel structureColorOptionalTyreSolid tyre
CE No.: DGS12082902
Ce-Approved H-Beam Mobile Loading Ramps with 10 Ton CapacityCe-Approved H-Beam Mobile Loading Ramps with 10 Ton CapacityCe-Approved H-Beam Mobile Loading Ramps with 10 Ton CapacityCe-Approved H-Beam Mobile Loading Ramps with 10 Ton CapacityCe-Approved H-Beam Mobile Loading Ramps with 10 Ton Capacity
Description:

1, We have many years experience in designing and customize the container ramp as per customer's
    requirement.
2, Operate manner: Manual.

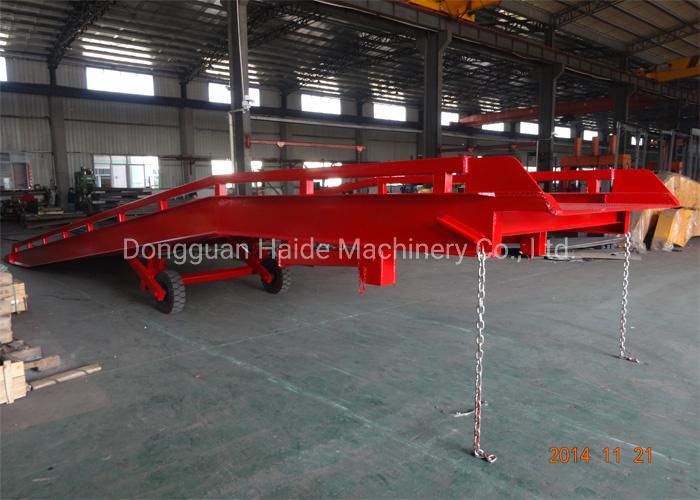

3, The 32# "H" beam steel structure for side-frame main body and 14# "H" beam for under-frame make it much
    stronger than the common steel tube structure.
Ce-Approved H-Beam Mobile Loading Ramps with 10 Ton Capacity
4, Fixed lip structure suitable for any vehicle(including the 3-wheel forklift) to pass through.

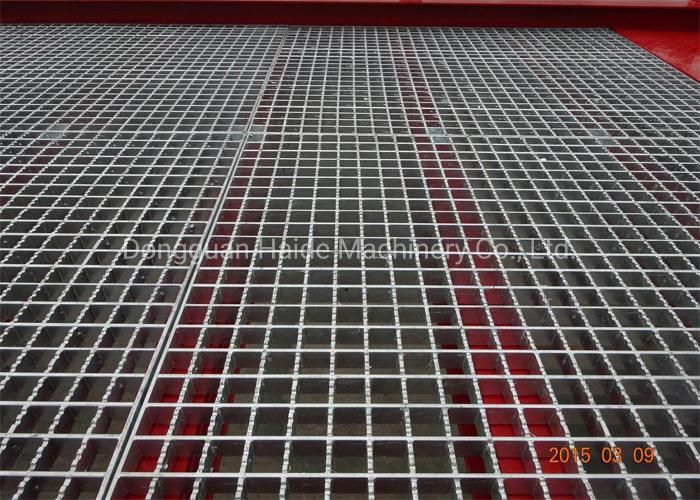

5, 100% galvanized steel grating of the slope part, aim at rust protection and skid resistance.
Ce-Approved H-Beam Mobile Loading Ramps with 10 Ton Capacity
6, Capacity: 10ton, 15ton. 20ton
7, Two solid tyres provide excellent traction without worry of puncture.

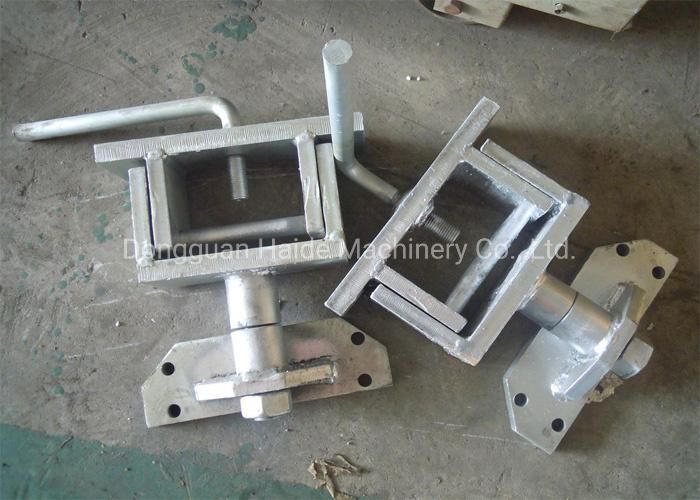

8, The end bracket can be connected with the forklift(we've drilled two hole on the fork of forklift, then put rod of
    the bracket into the hole of the fork) and can be moved by the forklift in any direction. And the end bracket
    also is galvanized.
Ce-Approved H-Beam Mobile Loading Ramps with 10 Ton Capacity
9, Operated with manual(If you need, we also can make electric for you).
10, The tightening chain's design between truck and mobile loading ramp is easy for operation and safe.
11, Hydraulic retractable support leg is optional.
12, 1 year warranty for hydraulic system, 3 years warranty for steel structure.
13, Hydraulic retractable support leg is optional.
14, The demension for every part can be customized to suit to acture demand.
15, We also can make it with 3-side loading and unloading style.
