Heavy Duty Hydraulic Scissor Lift Table
Wuxi Buytool Industrial Equipment Co., Ltd.- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
Base Info
- Model NO.：HW1001, HW2001, HW4001
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
- Certification：CE, ISO 9001
- Capacity：1000kg, 2000kg, 4000kg
- Min. Height：205-240mm
- Max. Height：990-1300mm
- Table Size：820*1300mm
- Lift Time：20-25s
- Color：Customizable
- Net Weight：160-430kg
- Type：Stationary Lift Table
- Certificate：Ce Approved
- Scissor：Single Scissor Lift Table
- Usage：Material Handling
- Delivery Time：One Month
- Power：380V,50Hz
- Base Frame：640*1240mm
- Product Name：Hydraulic Lift Table
- Transport Package：1PC,Wooden Case
- Specification：customizable
- Trademark：Buytool
- Origin：Made in China
- HS Code：8427900000
- Production Capacity：3000PCS,Month
- Package size per unit product：135.00cm * 85.00cm * 35.00cm
- Gross weight per unit product：180.000kg
Description
1000205 1000 820×1300 640×1240 20-25 380v/50HZ,AC1.1kw 160 HW1002 205 1000 1000×1600 640×1240 20-25 186 HW1003 240 1300 850×1700 640×1580 30-35 200 HW1004 240 1300 1000×1700 640×1580 30-35 210 HW1005 240 1300 850×2000 640×1580 30-35 212 HW1006 240 1300 1000×2000 640×1580 30-35 223 HW2001 2000 230 1050 850×1300 785×1220 20-25 380v/50HZ,AC1.5kw 235 HW2002 230 1050 1000×1600 785×1220 20-25 268 HW2003 250 1300 850×1700 785×1600 25-35 289 HW2004 250 1300 1000×1700 785×1600 25-35 300 HW2005 250 1300 850×2000 785×1600 25-35 300 HW2006 250 1300 1000×2000 785×1600 25-35 315 HW4001 4000 240 1100 1200×1700 900×1600 30-40 380v/50HZ,AC2.2kw 375 HW4002 240 1100 1200×2000 900×1600 30-40 405 HW4003 300 1400 1000×2000 900×2000 45-50 470 HW4004 300 1400 1200×2000 900×2000 45-50 490 HW4005 300 1400 1000×2200 900×2000 45-50 480 HW4006 300 1400 1200×2200 900×2000 45-50 505 HW4007 300 1400 1500×1700 1200×1600 45-50 420 HW4008 300 1400 1800×2200 1500×2000 45-50 540

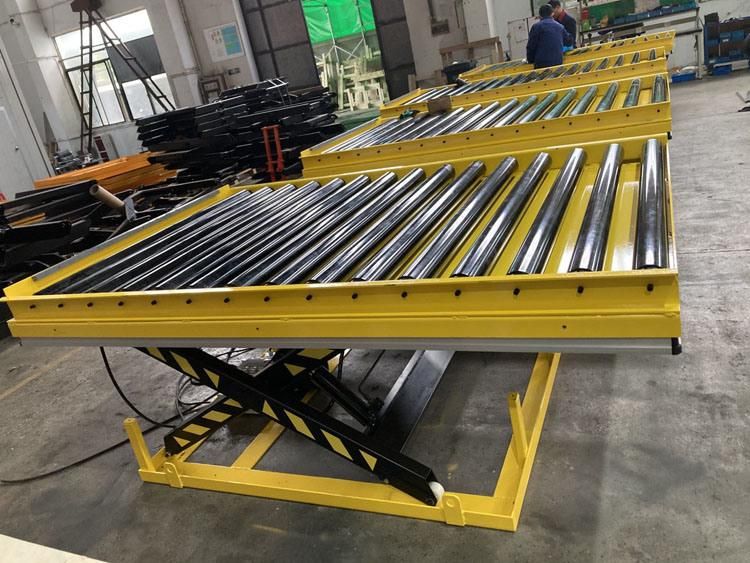

Lift tables with rollers

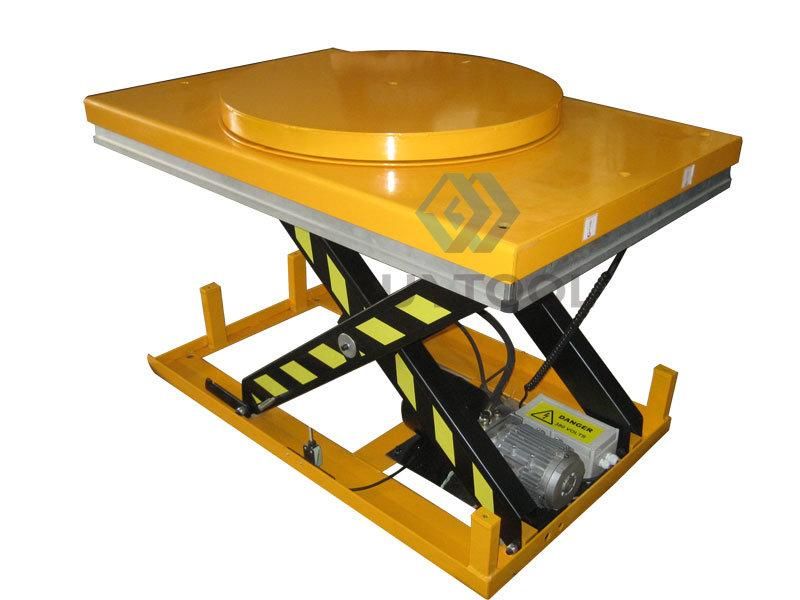

Lift table with turnable top platform:

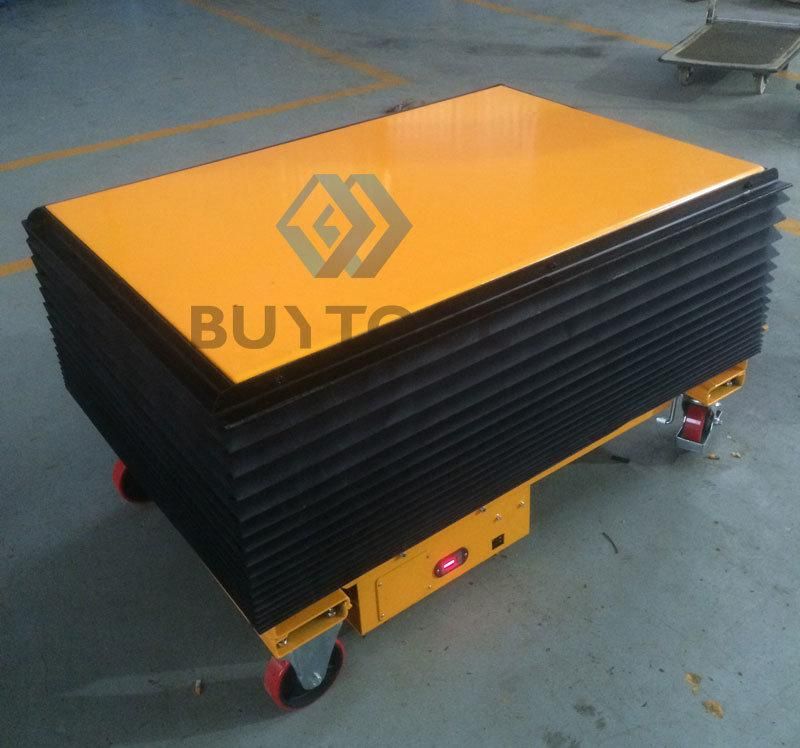

Electric Lift Table with Protection Skirt and Wheels:

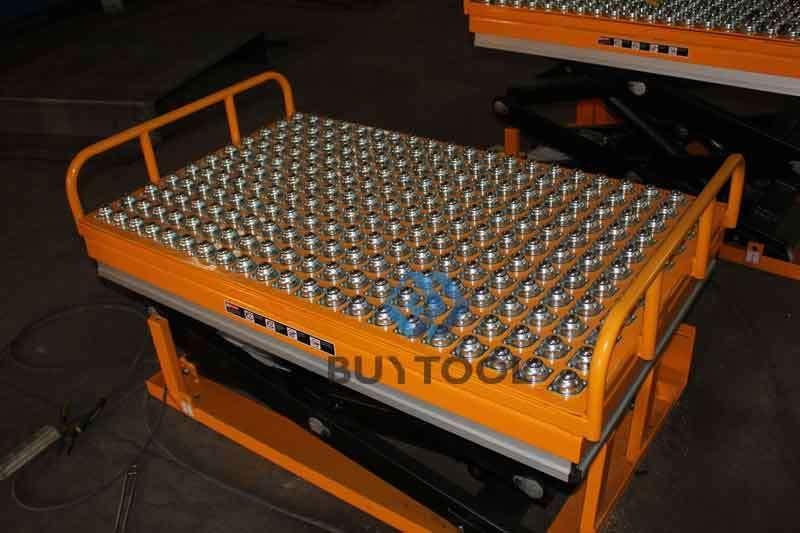

Electric Lift Table with Ball Table:
FAQ:
Q: What about the quality of the lift tables?
A: Our lift tables are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our lift tables carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
